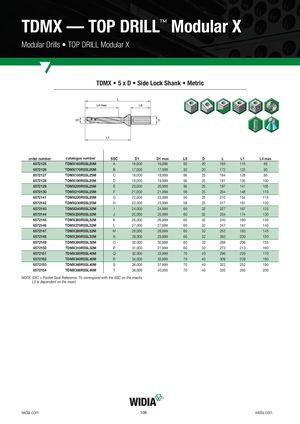

Modular Drills • TOP DRILL Modular X
TDMX • 5 x D • Side Lock Shank • Metric
| order number | catalogue number | SSC | D1 | D1 max | LS | D | L | L1 | L4 max |
| 6572125 | TDMX160R5SL20M | A | 16,000 | 16,999 | 50 | 20 | 165 | 115 | 85 |
| 6572126 | TDMX170R5SL20M | B | 17,000 | 17,999 | 50 | 20 | 172 | 122 | 90 |
| 6572127 | TDMX180R5SL25M | C | 18,000 | 18,999 | 56 | 25 | 184 | 128 | 95 |
| 6572128 | TDMX190R5SL25M | D | 19,000 | 19,999 | 56 | 25 | 191 | 135 | 100 |
| 6572129 | TDMX200R5SL25M | E | 20,000 | 20,999 | 56 | 25 | 197 | 141 | 105 |
| 6572130 | TDMX210R5SL25M | F | 21,000 | 21,999 | 56 | 25 | 204 | 148 | 110 |
| 6572141 | TDMX220R5SL25M | G | 22,000 | 22,999 | 56 | 25 | 210 | 154 | 115 |
| 6572142 | TDMX230R5SL25M | H | 23,000 | 23,999 | 56 | 25 | 217 | 161 | 120 |
| 6572143 | TDMX240R5SL32M | I | 24,000 | 24,999 | 60 | 32 | 227 | 167 | 125 |
| 6572144 | TDMX250R5SL32M | J | 25,000 | 25,999 | 60 | 32 | 234 | 174 | 130 |
| 6572145 | TDMX260R5SL32M | K | 26,000 | 26,999 | 60 | 32 | 240 | 180 | 135 |
| 6572146 | TDMX270R5SL32M | L | 27,000 | 27,999 | 60 | 32 | 247 | 187 | 140 |
| 6572147 | TDMX280R5SL32M | M | 28,000 | 28,999 | 60 | 32 | 253 | 193 | 145 |
| 6572148 | TDMX290R5SL32M | N | 29,000 | 29,999 | 60 | 32 | 260 | 200 | 150 |
| 6572149 | TDMX300R5SL32M | O | 30,000 | 30,999 | 60 | 32 | 266 | 206 | 155 |
| 6572150 | TDMX310R5SL32M | P | 31,000 | 31,999 | 60 | 32 | 273 | 213 | 160 |
| 6572151 | TDMX320R5SL40M | Q | 32,000 | 33,999 | 70 | 40 | 296 | 226 | 170 |
| 6572152 | TDMX340R5SL40M | R | 34,000 | 35,999 | 70 | 40 | 309 | 239 | 180 |
| 6572153 | TDMX360R5SL40M | S | 36,000 | 37,999 | 70 | 40 | 322 | 252 | 190 |
| 6572154 | TDMX380R5SL40M | T | 38,000 | 40,000 | 70 | 40 | 335 | 265 | 200 |
NOTE: SSC = Pocket Seat Reference. To correspond with the SSC on the inserts. L5 is dependent on the insert.
