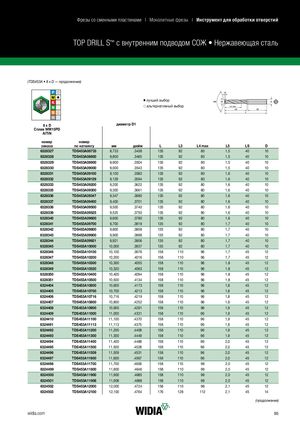

TOP DRILL S™ с внутренним подводом СОЖ • Нержавеющая сталь
(TDS453A • 8 x D — продолжение)
| v лу | чший выбор | ||||||||
| j ал | ьтернативн | ый выбор | L4 ma | x | |||||
| 8 x D | диаме | тр D1 | |||||||
| Сплав WM15PD AlTiN | |||||||||
| номер | номер | ||||||||
| заказа | по каталогу | мм | дюйм | L | L3 | L4max | L5 | LS | D |
| 6328327 | TDS453A08733 | 8,733 | .3438 | 135 | 92 | 80 | 1,5 | 40 | 10 |
| 6328328 | TDS453A08800 | 8,800 | .3465 | 135 | 92 | 80 | 1,5 | 40 | 10 |
| 6328329 | TDS453A08900 | 8,900 | .3504 | 135 | 92 | 80 | 1,5 | 40 | 10 |
| 6328330 | TDS453A09000 | 9,000 | .3543 | 135 | 92 | 80 | 1,5 | 40 | 10 |
| 6328331 | TDS453A09100 | 9,100 | .3583 | 135 | 92 | 80 | 1,6 | 40 | 10 |
| 6328332 | TDS453A09129 | 9,129 | .3594 | 135 | 92 | 80 | 1,6 | 40 | 10 |
| 6328333 | TDS453A09200 | 9,200 | .3622 | 135 | 92 | 80 | 1,6 | 40 | 10 |
| 6328335 | TDS453A09300 | 9,300 | .3661 | 135 | 92 | 80 | 1,6 | 40 | 10 |
| 6328336 | TDS453A09347 | 9,347 | .3680 | 135 | 92 | 80 | 1,6 | 40 | 10 |
| 6328337 | TDS453A09400 | 9,400 | .3701 | 135 | 92 | 80 | 1,6 | 40 | 10 |
| 6328338 | TDS453A09500 | 9,500 | .3740 | 135 | 92 | 80 | 1,6 | 40 | 10 |
| 6328339 | TDS453A09525 | 9,525 | .3750 | 135 | 92 | 80 | 1,6 | 40 | 10 |
| 6328340 | TDS453A09600 | 9,600 | .3780 | 135 | 92 | 80 | 1,6 | 40 | 10 |
| 6328341 | TDS453A09700 | 9,700 | .3819 | 135 | 92 | 80 | 1,7 | 40 | 10 |
| 6328342 | TDS453A09800 | 9,800 | .3858 | 135 | 92 | 80 | 1,7 | 40 | 10 |
| 6328343 | TDS453A09900 | 9,900 | .3898 | 135 | 92 | 80 | 1,7 | 40 | 10 |
| 6328344 | TDS453A09921 | 9,921 | .3906 | 135 | 92 | 80 | 1,7 | 40 | 10 |
| 6328345 | TDS453A10000 | 10,000 | .3937 | 135 | 92 | 80 | 1,7 | 40 | 10 |
| 6328346 | TDS453A10100 | 10,100 | .3976 | 158 | 110 | 96 | 1,7 | 45 | 12 |
| 6328347 | TDS453A10200 | 10,200 | .4016 | 158 | 110 | 96 | 1,7 | 45 | 12 |
| 6328348 | TDS453A10300 | 10,300 | .4055 | 158 | 110 | 96 | 1,8 | 45 | 12 |
| 6328349 | TDS453A10320 | 10,320 | .4063 | 158 | 110 | 96 | 1,8 | 45 | 12 |
| 6328350 | TDS453A10400 | 10,400 | .4094 | 158 | 110 | 96 | 1,8 | 45 | 12 |
| 6328351 | TDS453A10500 | 10,500 | .4134 | 158 | 110 | 96 | 1,8 | 45 | 12 |
| 6324404 | TDS453A10600 | 10,600 | .4173 | 158 | 110 | 96 | 1,8 | 45 | 12 |
| 6324405 | TDS453A10700 | 10,700 | .4213 | 158 | 110 | 96 | 1,8 | 45 | 12 |
| 6324406 | TDS453A10716 | 10,716 | .4219 | 158 | 110 | 96 | 1,8 | 45 | 12 |
| 6324407 | TDS453A10800 | 10,800 | .4252 | 158 | 110 | 96 | 1,9 | 45 | 12 |
| 6324408 | TDS453A10900 | 10,900 | .4291 | 158 | 110 | 96 | 1,9 | 45 | 12 |
| 6324409 | TDS453A11000 | 11,000 | .4331 | 158 | 110 | 96 | 1,9 | 45 | 12 |
| 6324410 | TDS453A11100 | 11,100 | .4370 | 158 | 110 | 96 | 1,9 | 45 | 12 |
| 6324491 | TDS453A11113 | 11,113 | .4375 | 158 | 110 | 96 | 1,9 | 45 | 12 |
| 6324492 | TDS453A11200 | 11,200 | .4409 | 158 | 110 | 96 | 1,9 | 45 | 12 |
| 6324493 | TDS453A11300 | 11,300 | .4449 | 158 | 110 | 96 | 1,9 | 45 | 12 |
| 6324494 | TDS453A11400 | 11,400 | .4488 | 158 | 110 | 96 | 2,0 | 45 | 12 |
| 6324495 | TDS453A11500 | 11,500 | .4528 | 158 | 110 | 96 | 2,0 | 45 | 12 |
| 6324496 | TDS453A11509 | 11,509 | .4531 | 158 | 110 | 96 | 2,0 | 45 | 12 |
| 6324497 | TDS453A11600 | 11,600 | .4567 | 158 | 110 | 96 | 2,0 | 45 | 12 |
| 6324498 | TDS453A11700 | 11,700 | .4606 | 158 | 110 | 96 | 2,0 | 45 | 12 |
| 6324499 | TDS453A11800 | 11,800 | .4646 | 158 | 110 | 96 | 2,0 | 45 | 12 |
| 6324500 | TDS453A11900 | 11,900 | .4685 | 158 | 110 | 96 | 2,0 | 45 | 12 |
| 6324501 | TDS453A11908 | 11,908 | .4688 | 158 | 110 | 96 | 2,0 | 45 | 12 |
| 6324502 | TDS453A12000 | 12,000 | .4724 | 158 | 110 | 96 | 2,1 | 45 | 12 |
| 6324503 | TDS453A12100 | 12,100 | .4764 | 176 | 128 | 112 | 2,1 | 45 | 14 |
