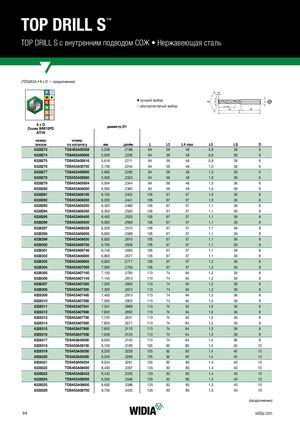

TOP DRILL S с внутренним подводом СОЖ • Нержавеющая сталь
(TDS453A • 8 x D — продолжение)
| v | лучший выб | ор | |||||||
| j | альтернати | вный выбор | L4 max | ||||||
| 8 x D | диаме | тр D1 | |||||||
| Сплав WM15PD AlTiN | WM15PD | WM | 15PD | ||||||
| номер | номер | ||||||||
| заказа | по каталогу | мм | дюйм | L | L3 | L4max | L5 | LS | D |
| 6328273 | TDS453A05558 | 5,558 | .2188 | 94 | 56 | 48 | 0,9 | 36 | 6 |
| 6328274 | TDS453A05600 | 5,600 | .2205 | 94 | 56 | 48 | 0,9 | 36 | 6 |
| 6328275 | TDS453A05616 | 5,616 | .2211 | 94 | 56 | 48 | 0,9 | 36 | 6 |
| 6328276 | TDS453A05700 | 5,700 | .2244 | 94 | 56 | 48 | 1,0 | 36 | 6 |
| 6328277 | TDS453A05800 | 5,800 | .2283 | 94 | 56 | 48 | 1,0 | 36 | 6 |
| 6328278 | TDS453A05900 | 5,900 | .2323 | 94 | 56 | 48 | 1,0 | 36 | 6 |
| 6328279 | TDS453A05954 | 5,954 | .2344 | 94 | 56 | 48 | 1,0 | 36 | 6 |
| 6328280 | TDS453A06000 | 6,000 | .2362 | 94 | 56 | 48 | 1,0 | 36 | 6 |
| 6328291 | TDS453A06100 | 6100 | .2402 | 105 | 67 | 57 | 10 | 36 | 8 |
| 6328292 | TDS453A06200 | , 6,200 | .2441 | 105 | 67 | 57 | , 1,0 | 36 | 8 |
| 6328293 | TDS453A06300 | 6,300 | .2480 | 105 | 67 | 57 | 1,1 | 36 | 8 |
| 6328294 | TDS453A06350 | 6,350 | .2500 | 105 | 67 | 57 | 1,1 | 36 | 8 |
| 6328295 | TDS453A06400 | 6,400 | .2520 | 105 | 67 | 57 | 1,1 | 36 | 8 |
| 6328296 | TDS453A06500 | 6,500 | .2559 | 105 | 67 | 57 | 1,1 | 36 | 8 |
| 6328297 | TDS453A06528 | 6,528 | .2570 | 105 | 67 | 57 | 1,1 | 36 | 8 |
| 6328298 | TDS453A06600 | 6,600 | .2598 | 105 | 67 | 57 | 1,1 | 36 | 8 |
| 6328299 | TDS453A06630 | 6,630 | .2610 | 105 | 67 | 57 | 1,1 | 36 | 8 |
| 6328300 | TDS453A06700 | 6,700 | .2638 | 105 | 67 | 57 | 1,1 | 36 | 8 |
| 6328301 | TDS453A06746 | 6,746 | .2656 | 105 | 67 | 57 | 1,1 | 36 | 8 |
| 6328302 | TDS453A06800 | 6,800 | .2677 | 105 | 67 | 57 | 1,1 | 36 | 8 |
| 6328303 | TDS453A06900 | 6,900 | .2717 | 105 | 67 | 57 | 1,2 | 36 | 8 |
| 6328304 | TDS453A07000 | 7,000 | .2756 | 105 | 67 | 57 | 1,2 | 36 | 8 |
| 6328305 | TDS453A07100 | 7,100 | .2795 | 113 | 74 | 64 | 1,2 | 36 | 8 |
| 6328306 | TDS453A07145 | 7,145 | .2813 | 113 | 74 | 64 | 1,2 | 36 | 8 |
| 6328307 | TDS453A07200 | 7200 | 2835 | 113 | 74 | 64 | 12 | 36 | 8 |
| 6328308 | TDS453A07300 | , 7,300 | . .2874 | 113 | 74 | 64 | , 1,2 | 36 | 8 |
| 6328309 | TDS453A07400 | 7,400 | .2913 | 113 | 74 | 64 | 1,3 | 36 | 8 |
| 6328310 | TDS453A07500 | 7,500 | .2953 | 113 | 74 | 64 | 1,3 | 36 | 8 |
| 6328311 | TDS453A07541 | 7,541 | .2969 | 113 | 74 | 64 | 1,3 | 36 | 8 |
| 6328312 | TDS453A07600 | 7,600 | .2992 | 113 | 74 | 64 | 1,3 | 36 | 8 |
| 6328313 | TDS453A07700 | 7,700 | .3031 | 113 | 74 | 64 | 1,3 | 36 | 8 |
| 6328314 | TDS453A07800 | 7,800 | .3071 | 113 | 74 | 64 | 1,3 | 36 | 8 |
| 6328315 | TDS453A07900 | 7,900 | .3110 | 113 | 74 | 64 | 1,3 | 36 | 8 |
| 6328316 | TDS453A07938 | 7,938 | .3125 | 113 | 74 | 64 | 1,3 | 36 | 8 |
| 6328317 | TDS453A08000 | 8,000 | .3150 | 113 | 74 | 64 | 1,4 | 36 | 8 |
| 6328318 | TDS453A08100 | 8,100 | .3189 | 135 | 92 | 80 | 1,4 | 40 | 10 |
| 6328319 | TDS453A08200 | 8,200 | .3228 | 135 | 92 | 80 | 1,4 | 40 | 10 |
| 6328320 | TDS453A08300 | 8,300 | .3268 | 135 | 92 | 80 | 1,4 | 40 | 10 |
| 6328321 | TDS453A08334 | 8,334 | .3281 | 135 | 92 | 80 | 1,4 | 40 | 10 |
| 6328322 | TDS453A08400 | 8,400 | .3307 | 135 | 92 | 80 | 1,4 | 40 | 10 |
| 6328323 | TDS453A08433 | 8,433 | .3320 | 135 | 92 | 80 | 1,4 | 40 | 10 |
| 6328324 | TDS453A08500 | 8,500 | .3346 | 135 | 92 | 80 | 1,4 | 40 | 10 |
| 6328325 | TDS453A08600 | 8,600 | .3386 | 135 | 92 | 80 | 1,5 | 40 | 10 |
| 6328326 | TDS453A08700 | 8,700 | .3425 | 135 | 92 | 80 | 1,5 | 40 | 10 |
