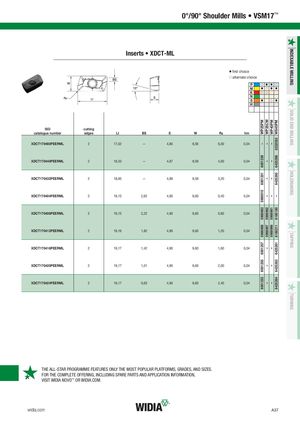

Inserts • XDCT-ML
| vfi | irst choice | ||||||||
| ja | lternate choic | e | |||||||
| P M K N S H | j v v j j j v | v j v v j v | |||||||
| ISO catalogue number | cutting edges | LI | BS | S | W | R e | hm | WP25PM WP35CM | WP40PM WS40PM |
| XDCT170460PEERML | 2 | 17,02 | — | 4,80 | 9,56 | 6,00 | 0,04 | – – | – 6232053 |
| XDCT170440PEERML | 2 | 18,33 | — | 4,87 | 9,59 | 4,00 | 0,04 | 6001239 – | – 6425266 |
| XDCT170432PEERML | 2 | 18,85 | — | 4,89 | 9,59 | 3,20 | 0,04 | 6001251 – | – 6425265 |
| XDCT170404PEERML | 2 | 19,15 | 2,62 | 4,90 | 9,60 | 0,40 | 0,04 | 5989010 – | – – |
| XDCT170408PEERML | 2 | 19,15 | 2,22 | 4,90 | 9,60 | 0,80 | 0,04 | 5988983 5988982 | 5988981 6180180 |
| XDCT170412PEERML | 2 | 19,16 | 1,82 | 4,90 | 9,60 | 1,20 | 0,04 | 5988988 5988987 | 5988986 6180211 |
| XDCT170416PEERML | 2 | 19,17 | 1,42 | 4,90 | 9,60 | 1,60 | 0,04 | 6001257 – | – 6425261 |
| XDCT170420PEERML | 2 | 19,17 | 1,01 | 4,90 | 9,60 | 2,00 | 0,04 | 6001255 – | – 6425263 |
| XDCT170424PEERML | 2 | 19,17 | 0,63 | 4,90 | 9,60 | 2,40 | 0,04 | 6001253 – | – 6425264 |
THE ALL-STAR PROGRAMME FEATURES ONLY THE MOST POPULAR PLATFORMS, GRADES, AND SIZES. FOR THE COMPLETE OFFERING, INCLUDING SPARE PARTS AND APPLICATION INFORMATION, VISIT WIDIA NOVO™ OR WIDIA.COM.
