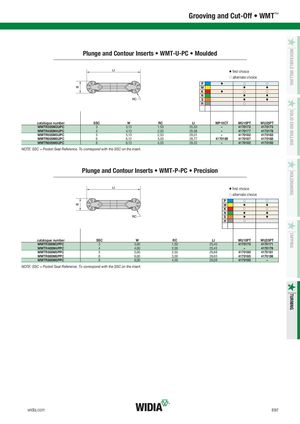

Plunge and Contour Inserts • WMT-U-PC • Moulded
v first choice j alternate choice
| P | v | j | j |
| M | v | v | |
| K | v | j | j |
| N | v | v | |
| S | v | v |
H j
| catalogue number | SSC | W | RC | LI | WP10CT | WU10PT | WU25PT | |
| WMTR305M3UPC | 3 | 3,13 | 1,53 | 25,53 | – | 4170172 | 4170173 | |
| WMTR405M4UPC | 4 | 4,13 | 2,03 | 25,58 | – | 4170177 | 4170178 | |
| WMTR505M5UPC | 5 | 5,13 | 2,53 | 29,01 | – | 4170182 | 4170183 | |
| WMTR605M6UPC | 6 | 6,12 | 3,03 | 28,77 | 4170189 | 4170187 | 4170188 | |
| WMTR805M8UPC | 8 | 8,13 | 4,03 | 29,22 | – | 4170192 | 4170193 |
NOTE: SSC = Pocket Seat Reference. To correspond with the SSC on the insert.
Plunge and Contour Inserts • WMT-P-PC • Precision
v first choice j alternate choice
| P | j | j |
| M | v | v |
| K | j | j |
| N | v | v |
| S | v | v |
H j
| catalogue number | SSC | W | RC | LI | WU10PT | WU25PT |
| WMTR300M3PPC | 3 | 3,00 | 1,50 | 25,40 | 4170170 | 4170171 |
| WMTR400M4PPC | 4 | 4,00 | 2,00 | 25,45 | – 4170176 | |
| WMTR500M5PPC | 5 | 5,00 | 2,50 | 28,88 | 4170180 | 4170181 |
| WMTR600M6PPC | 6 | 6,00 | 3,00 | 28,65 | 4170185 | 4170186 |
| WMTR800M8PPC | 8 | 8,00 | 4,00 | 29,08 | 4170190 | – |
NOTE: SSC = Pocket Seat Reference. To correspond with the SSC on the insert.
