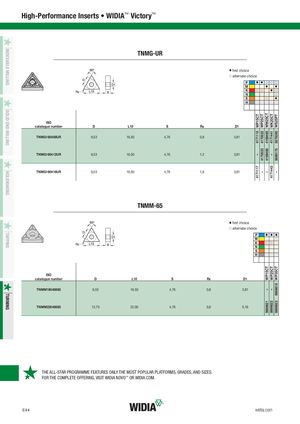

TNMG-UR
v first choice j alternate choice P vvjjj
M v v
| K | j j | v j | |
| N | j |
S j v
H
ISO
| catalogue number | D | L10 | S | Re | D1 |
| TNMG160408UR | 9,53 | 16,50 | 4,76 | 0,8 | 3,81 |
TNMG160412UR 9,53 16,50 4,76 1,2 3,81
TNMG160416UR 9,53 16,50 4,76 1,6 3,81
TNMM-65
| P M K N S H vfirst choice jalternate choice | v v v j j j | |||||
| ISO catalogue number | D | L10 | S | R e | D1 | WP15CT WP25CT WP35CT |
| TNMM16040865 TNMM22040865 | 9,53 12,70 | 16,50 22,00 | 4,76 4,76 | 0,8 0,8 | 3,81 5,16 | – – 5696619 5696621 5696622 5696623 |
THE ALL-STAR PROGRAMME FEATURES ONLY THE MOST POPULAR PLATFORMS, GRADES, AND SIZES. FOR THE COMPLETE OFFERING, VISIT WIDIA NOVO ™ OR WIDIA.COM.
