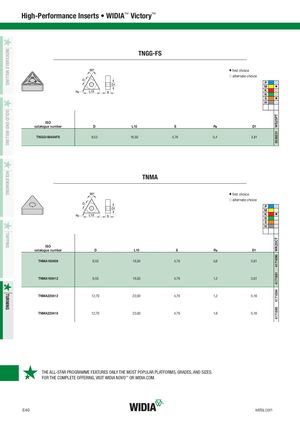

TNGG-FS
v first choice j alternate choice
| P | j |
| M | v |
| K | j |
| N | j |
| S | v |
H
ISO
| catalogue number | D | L10 | S | Re | D1 |
| TNGG160404FS | 9,53 | 16,50 | 4,76 | 0,4 | 3,81 |
TNMA
| vfir jal | ist choice ternate choice | P j M K v N S H | ||||
| ISO catalogue number | D | L10 | S | R e | D1 | WK20CT |
| TNMA160408 | 9,53 | 16,50 | 4,76 | 0,8 | 3,81 | 4171890 |
| TNMA160412 | 9,53 | 16,50 | 4,76 | 1,2 | 3,81 | 4171891 |
| TNMA220412 | 12,70 | 22,00 | 4,76 | 1,2 | 5,16 | 4171894 |
| TNMA220416 | 12,70 | 22,00 | 4,76 | 1,6 | 5,16 | 4171895 |
THE ALL-STAR PROGRAMME FEATURES ONLY THE MOST POPULAR PLATFORMS, GRADES, AND SIZES. FOR THE COMPLETE OFFERING, VISIT WIDIA NOVO ™ OR WIDIA.COM.
