- Material Overview • DIN

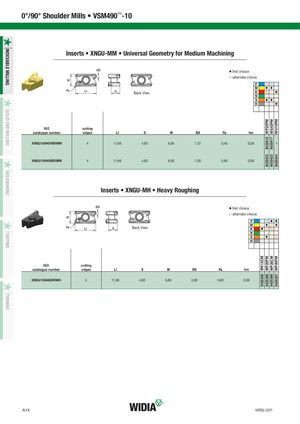

Inserts • XNGU-MM • Universal Geometry for Medium Machining
v first choice j alternate choice P j j M v v
Back View K j v
N S v v H v
ISO cutting
| catalogue number | edges | LI | S | W | BS | Re | hm |
| XNGU100404SRMM | 4 | 11,66 | 4,83 | 6,60 | 1,37 | 0,40 | 0,08 |
XNGU100408SRMM 4 11,66 4,83 6,60 1,00 0,80 0,08
Inserts • XNGU-MH • Heavy Roughing
v first choice j alternate choice P jvv M vjv Back View K vjj N
S v j
H
ISO cutting
| catalogue number | edges | LI | S | W | BS | Re | hm |
| XNGU100408SRMH | 4 | 11,66 | 4,83 | 6,60 | 0,90 | 0,80 | 0,08 |
