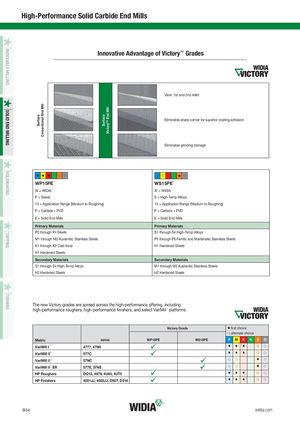

Innovative Advantage of Victory™ Grades
View: 1st and 2nd relief
Eliminates sharp corner for superior coating adhesion
Eliminates grinding damage
| v | j v j j j v v j |
| WP15PE™ | WS15PE™ |
| W = WIDIA™ | W = WIDIA |
| P = Steels | S = High-Temp Alloys |
| 15 = Application Range (Medium to Roughing) | 15 = Application Range (Medium to Roughing) |
| P = Carbide + PVD | P = Carbide + PVD |
| E = Solid End Mills | E = Solid End Mills |
| Primary Materials | Primary Materials |
| P0 through P4 Steels | S1 through S4 High-Temp Alloys |
| M1 through M3 Austenitic Stainless Steels | P5 through P6 Ferritic and Martensitic Stainless Steels |
| K1 through K3 Cast Irons | H1 Hardened Steels |
| H1 Hardened Steels | |
| Secondary Materials | Secondary Materials |
| S1 through S4 High-Temp Alloys | M1 through M3 Austenitic Stainless Steels |
| H2 Hardened Steels | H2 Hardened Steels |
The new Victory grades are spread across the high-performance offering, including
high-performance roughers, high-performance finishers, and select VariMill platforms.
| Victory | Grade | vfirst | i ch | i oice | |||
| jalte | rna | te choi | ce | ||||
| Metric | series | WP15PE | WS15PE | P | M | K | N S H |
| VariMill I ™ | 4777, 47N0 | ü | v | v | v | j j | |
| VariMill II ™ | 577C | ü | v | v | v | j j | |
| VariMill II ™ | 57NC | ü | j | j | v j | ||
| VariMill II ™ER | 577E, 57NE | ü | j | j | v j | ||
| HP Roughers | DQ13, 4976, 4U40, 4U70 | ü | v | v | v | j j | |
| HP Finishers | 4001JJ, 4503JJ, D507, D518 | ü | v | v | v | j j |
