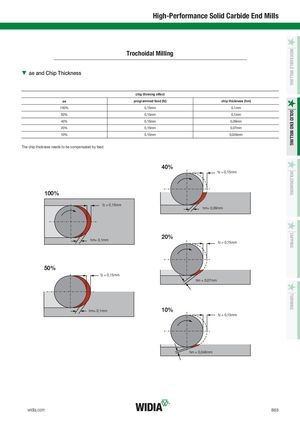

Trochoidal Milling
TTae and Chip Thickness
| chip thinning effect | ||
| ae | programmed feed (fz) | chip thickness (hm) |
| 100% | 0,15mm | 0,1mm |
| 50% | 0,15mm | 0,1mm |
| 40% | 0,15mm | 0,09mm |
| 20% | 0,15mm | 0,07mm |
| 10% | 0,15mm | 0,046mm |
The chip thickness needs to be compensated by feed.
100%
fz = 0,15mm
40%
fz = 0,15mm
hm= 0,09mm
20%
hm= 0,1mm fz = 0,15mm
50%
fz = 0,15mm hm = 0,07mm
10%
hm= 0,1mm fz = 0,15mm
hm = 0,046mm
