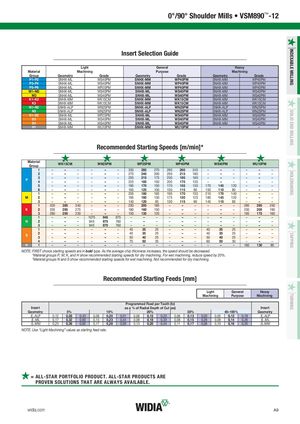

Insert Selection Guide
| Material | Lig Mach | ht ining | Gen Pur | eral pose | Heavy Machining | ||
| Group | Geometry | Grade | Geometry | Grade | Geometr | y Grade | |
| P1–P2 | SNHX-ML | WS40PM | SNHX-MM | WP40PM | SNHX-MM | WP40PM | |
| P3–P4 | SNHX-ML | WS40PM | SNHX-MM | WP40PM | SNHX-MM | WP40PM | |
| P5–P6 | SNHX-ML | WP25PM | SNHX-MM | WP40PM | SNHX-MM | WP40PM | |
| M1–M2 | SNHX-ML | WS40PM | SNHX-ML | WS40PM | SNHX-MM | WS40PM | |
| M3 | SNHX-ML | WS40PM | SNHX-ML | WS40PM | SNHX-MM | WS40PM | |
| K1–K2 | SNHX-MM | WK15CM | SNHX-MM | WK15CM | SNHX-MM | WK15CM | |
| K3 | SNHX-MM | WK15CM | SNHX-MM | WK15CM | SNHX-MM | WK15CM | |
| N1–N2 | SNHX-ALP | WN25PM | SNHX-ALP | WN25PM | SNHX-AL | P WN25PM | |
| N3 | SNHX-ALP | WN25PM | SNHX-ALP | WN25PM | SNHX-AL | P WN25PM | |
| S1–S2 | SNHX-ML | WP25PM | SNHX-ML | WS40PM | SNHX-MM | WS40PM | |
| S3 | SNHX-ML | WS40PM | SNHX-ML | WS40PM | SNHX-MM | WS40PM | |
| S4 | SNHX-ML | WS40PM | SNHX-ML | WS40PM | SNHX-MM | WS40PM | |
| H1 | SNHX-MM | WU10PM | SNHX-MM | WU10PM | – | – |
Recommended Starting Speeds [m/min]*
| Material Group | WK15C | M | WN25PM | WP25PM | WP40PM | WS40PM | WU10PM | |||||||||||
| 1 | – | – | – | – | – | – | 330 | 285 | 270 | 295 | 260 | 245 | – | – | – | – | – | – |
| 2 | – | – | – | – | – | – | 275 | 240 | 200 | 250 | 215 | 180 | – | – | – | – | – | – |
| P 3 | – | – | – | – | – | – | 255 | 215 | 175 | 230 | 195 | 160 | – | – | – | – | – | – |
| 4 | – | – | – | – | – | – | 225 | 185 | 150 | 205 | 170 | 135 | – | – | – | – | – | – |
| 5 | – | – | – | – | – | – | 185 | 170 | 150 | 170 | 155 | 135 | 170 | 145 | 120 | – | – | – |
| 6 | – | – | – | – | – | – | 165 | 125 | 100 | 150 | 115 | 90 | 150 | 110 | 80 | – | – | – |
| 1 | – | – | – | – | – | – | 205 | 180 | 165 | 195 | 170 | 155 | 210 | 170 | 140 | – | – | – |
| M 2 | – | – | – | – | – | – | 185 | 160 | 130 | 175 | 150 | 125 | 180 | 145 | 120 | – | – | – |
| 3 | – | – | – | – | – | – | 140 | 120 | 95 | 130 | 115 | 90 | 145 | 110 | 85 | – | – | – |
| 1 | 420 | 385 | 340 | – | – | – | 230 | 205 | 185 | – | – | – | – | – | – | 295 | 265 | 240 |
| K 2 | 335 | 295 | 275 | – | – | – | 180 | 160 | 150 | – | – | – | – | – | – | 230 | 205 | 190 |
| 3 | 280 | 250 | 230 | – | – | – | 150 | 135 | 120 | – | – | – | – | – | – | 195 | 175 | 160 |
| 1 | – | – | – | 1075 | 945 | 875 | – | – | – | – | – | – | – | – | – | – | – | – |
| N 2 | – | – | – | 945 | 875 | 760 | – | – | – | – | – | – | – | – | – | – | – | – |
| 3 | – | – | – | 945 | 875 | 760 | – | – | – | – | – | – | – | – | – | – | – | – |
| 1 | – | – | – | – | – | – | 40 | 35 | 25 | – | – | – | 40 | 35 | 25 | – | – | – |
| S 2 | – | – | – | – | – | – | 40 | 35 | 25 | – | – | – | 40 | 35 | 25 | – | – | – |
| 3 | – | – | – | – | – | – | 50 | 40 | 25 | – | – | – | 50 | 40 | 25 | – | – | – |
| 4 | – | – | – | – | – | – | 70 | 50 | 35 | – | – | – | 60 | 50 | 30 | – | – | – |
| H 1 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | 160 | 130 | 90 |
NOTE: FIRST choice starting speeds are in bold type. As the average chip thickness increases, the speed should be decreased. *Material groups P, M, K, and H show recommended starting speeds for dry machining. For wet machining, reduce speed by 20%. *Material groups N and S show recommended starting speeds for wet machining. Not recommended for dry machining.
Recommended Starting Feeds [mm]
| Lig Mach | ht ining | Gen Purp | eral ose | Heavy Machining | ||||||||||||
| Insert Geometry | 5% | 10% | Pro as a | gramme % of Ra | dFeedp dial Dept 20% | er Tooth h of Cut | (fz) (ae) | 30% | 40–100% | Insert Geometry | ||||||
| .E..ALP | 0,12 | 0,28 | 0,43 | 0,08 | 0,20 | 0,31 | 0,06 | 0,15 | 0,23 | 0,06 | 0,13 | 0,20 | 0,05 | 0,12 | 0,18 | .E..ALP |
| .E..ML | 0,17 | 0,32 | 0,60 | 0,13 | 0,23 | 0,44 | 0,09 | 0,18 | 0,33 | 0,08 | 0,15 | 0,28 | 0,08 | 0,14 | 0,26 | .E..ML |
| .S..MM | 0,23 | 0,36 | 0,82 | 0,17 | 0,26 | 0,59 | 0,13 | 0,20 | 0,44 | 0,11 | 0,17 | 0,38 | 0,10 | 0,16 | 0,35 | .S..MM |
NOTE: Use “Light Machining” values as starting feed rate.
= ALL-STAR PORTFOLIO PRODUCT. ALL-STAR PRODUCTS ARE
PROVEN SOLUTIONS THAT ARE ALWAYS AVAILABLE.
