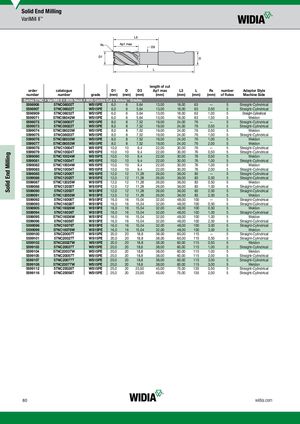

Каталог Widia all star 2019 - страница 82

Solid End Milling Solid End Milling VariMill II™ length of cut order catalogue D1 D D3 Ap1 max L3 L Rε number Adaptor Style number number grade (mm) (mm) (mm) (mm) (mm) (mm) (mm) of flutes Machine Side Series 57NC • VariMill II • With Neck • With Centre Cut • Victory™ Grades 5598906 57NC06002T WS15PE 6,0 6 5,64 13,00 18,00 63 — 5 Straight-Cylindrical 5598907 57NC06022T WS15PE 6,0 6 5,64 13,00 18,00 63 0,50 5 Straight-Cylindrical 5598909 57NC06032T WS15PE 6,0 6 5,64 13,00 18,00 63 1,00 5 Straight-Cylindrical 5599071 57NC06042W WS15PE 6,0 6 5,64 13,00 18,00 63 1,50 5 Weldon 5599072 57NC08003T WS15PE 8,0 8 7,52 19,00 24,00 76 — 5 Straight-Cylindrical 5599073 57NC08023T WS15PE 8,0 8 7,52 19,00 24,00 76 0,50 5 Straight-Cylindrical 5599074 57NC08023W WS15PE 8,0 8 7,52 19,00 24,00 76 0,50 5 Weldon 5599075 57NC08033T WS15PE 8,0 8 7,52 19,00 24,00 76 1,00 5 Straight-Cylindrical 5599076 57NC08033W WS15PE 8,0 8 7,52 19,00 24,00 76 1,00 5 Weldon 5599077 57NC08053W WS15PE 8,0 8 7,52 19,00 24,00 76 2,00 5 Weldon 5599078 57NC10004T WS15PE 10,0 10 9,4 22,00 30,00 76 — 5 Straight-Cylindrical 5599079 57NC10024T WS15PE 10,0 10 9,4 22,00 30,00 76 0,50 5 Straight-Cylindrical 5599080 57NC10024W WS15PE 10,0 10 9,4 22,00 30,00 76 0,50 5 Weldon 5599081 57NC10034T WS15PE 10,0 10 9,4 22,00 30,00 76 1,00 5 Straight-Cylindrical 5599082 57NC10034W WS15PE 10,0 10 9,4 22,00 30,00 76 1,00 5 Weldon 5599083 57NC10054T WS15PE 10,0 10 9,4 22,00 30,00 76 2,00 5 Straight-Cylindrical 5599085 57NC12005T WS15PE 12,0 12 11,28 26,00 36,00 83 — 5 Straight-Cylindrical 5599086 57NC12025T WS15PE 12,0 12 11,28 26,00 36,00 83 0,50 5 Straight-Cylindrical 5599087 57NC12025W WS15PE 12,0 12 11,28 26,00 36,00 83 0,50 5 Weldon 5599088 57NC12035T WS15PE 12,0 12 11,28 26,00 36,00 83 1,00 5 Straight-Cylindrical 5599090 57NC12055T WS15PE 12,0 12 11,28 26,00 36,00 83 2,00 5 Straight-Cylindrical 5599091 57NC12055W WS15PE 12,0 12 11,28 26,00 36,00 83 2,00 5 Weldon 5599092 57NC16006T WS15PE 16,0 16 15,04 32,00 48,00 100 — 5 Straight-Cylindrical 5599093 57NC16026T WS15PE 16,0 16 15,04 32,00 48,00 100 0,50 5 Straight-Cylindrical 5598905 57NC16026W WS15PE 16,0 16 15,04 32,00 48,00 100 0,50 5 Weldon 5599094 57NC16036T WS15PE 16,0 16 15,04 32,00 48,00 100 1,00 5 Straight-Cylindrical 5599095 57NC16036W WS15PE 16,0 16 15,04 32,00 48,00 100 1,00 5 Weldon 5599096 57NC16056T WS15PE 16,0 16 15,04 32,00 48,00 100 2,00 5 Straight-Cylindrical 5599098 57NC16076T WS15PE 16,0 16 15,04 32,00 48,00 100 3,00 5 Straight-Cylindrical 5599099 57NC16076W WS15PE 16,0 16 15,04 32,00 48,00 100 3,00 5 Weldon 5599100 57NC20007T WS15PE 20,0 20 18,8 38,00 60,00 115 — 5 Straight-Cylindrical 5599101 57NC20027T WS15PE 20,0 20 18,8 38,00 60,00 115 0,50 5 Straight-Cylindrical 5599102 57NC20027W WS15PE 20,0 20 18,8 38,00 60,00 115 0,50 5 Weldon 5599103 57NC20037T WS15PE 20,0 20 18,8 38,00 60,00 115 1,00 5 Straight-Cylindrical 5599104 57NC20037W WS15PE 20,0 20 18,8 38,00 60,00 115 1,00 5 Weldon 5599105 57NC20057T WS15PE 20,0 20 18,8 38,00 60,00 115 2,00 5 Straight-Cylindrical 5599107 57NC20077T WS15PE 20,0 20 18,8 38,00 60,00 115 3,00 5 Straight-Cylindrical 5599108 57NC20077W WS15PE 20,0 20 18,8 38,00 60,00 115 3,00 5 Weldon 5599112 57NC25028T WS15PE 25,0 20 23,50 45,00 75,00 135 0,50 5 Straight-Cylindrical 5599116 57NC25058T WS15PE 25,0 20 23,50 45,00 75,00 135 2,00 5 Straight-Cylindrical 80 widia.com
