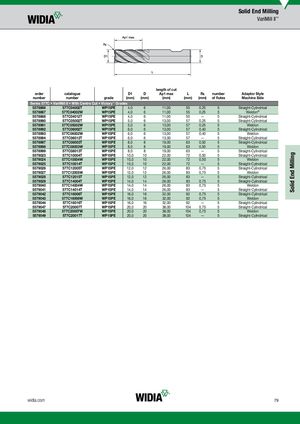

Каталог Widia all star 2019 - страница 81

Solid End Milling Solid End Milling VariMill II™ length of cut order catalogue D1 D Ap1 max L Rε number Adaptor Style number number grade (mm) (mm) (mm) (mm) (mm) of flutes Machine Side Series 577C • VariMill II • With Centre Cut • Victory™ Grades 5578866 577C04002T WP15PE 4,0 6 11,00 55 0,25 5 Straight-Cylindrical 5578867 577C04002W WP15PE 4,0 6 11,00 55 0,25 5 Weldon® 5578868 577C04012T WP15PE 4,0 6 11,00 55 — 5 Straight-Cylindrical 5578990 577C05002T WP15PE 5,0 6 13,00 57 0,25 5 Straight-Cylindrical 5578991 577C05002W WP15PE 5,0 6 13,00 57 0,25 5 Weldon 5578992 577C06002T WP15PE 6,0 6 13,00 57 0,40 5 Straight-Cylindrical 5578993 577C06002W WP15PE 6,0 6 13,00 57 0,40 5 Weldon 5578994 577C06012T WP15PE 6,0 6 13,00 57 — 5 Straight-Cylindrical 5578997 577C08003T WP15PE 8,0 8 19,00 63 0,50 5 Straight-Cylindrical 5578998 577C08003W WP15PE 8,0 8 19,00 63 0,50 5 Weldon 5578999 577C08013T WP15PE 8,0 8 19,00 63 — 5 Straight-Cylindrical 5579023 577C10004T WP15PE 10,0 10 22,00 72 0,50 5 Straight-Cylindrical 5579024 577C10004W WP15PE 10,0 10 22,00 72 0,50 5 Weldon 5579025 577C10014T WP15PE 10,0 10 22,00 72 — 5 Straight-Cylindrical 5579026 577C12005T WP15PE 12,0 12 26,00 83 0,75 5 Straight-Cylindrical 5579027 577C12005W WP15PE 12,0 12 26,00 83 0,75 5 Weldon 5579028 577C12015T WP15PE 12,0 12 26,00 83 — 5 Straight-Cylindrical 5579029 577C14004T WP15PE 14,0 14 26,00 83 0,75 5 Straight-Cylindrical 5579040 577C14004W WP15PE 14,0 14 26,00 83 0,75 5 Weldon 5579041 577C14014T WP15PE 14,0 14 26,00 83 — 5 Straight-Cylindrical 5579042 577C16006T WP15PE 16,0 16 32,00 92 0,75 5 Straight-Cylindrical 5579043 577C16006W WP15PE 16,0 16 32,00 92 0,75 5 Weldon 5579044 577C16016T WP15PE 16,0 16 32,00 92 — 5 Straight-Cylindrical 5579047 577C20007T WP15PE 20,0 20 38,00 104 0,75 5 Straight-Cylindrical 5579048 577C20007W WP15PE 20,0 20 38,00 104 0,75 5 Weldon 5579049 577C20017T WP15PE 20,0 20 38,00 104 — 5 Straight-Cylindrical widia.com 79
