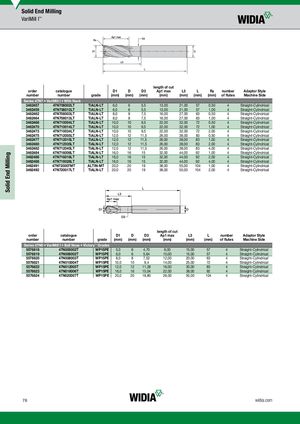

Solid End Milling Solid End Milling VariMill I™ length of cut order catalogue D1 D D3 Ap1 max L3 L Rε number Adaptor Style number number grade (mm) (mm) (mm) (mm) (mm) (mm) (mm) of flutes Machine Side Series 47N7 • VariMill I • With Neck 3462457 47N706002LT TiALN-LT 6,0 6 5,5 13,00 21,00 57 0,50 4 Straight-Cylindrical 3462459 47N706012LT TiALN-LT 6,0 6 5,5 13,00 21,00 57 1,00 4 Straight-Cylindrical 3462462 47N708003LT TiALN-LT 8,0 8 7,5 16,00 27,00 63 0,50 4 Straight-Cylindrical 3462464 47N708013LT TiALN-LT 8,0 8 7,5 16,00 27,00 63 1,00 4 Straight-Cylindrical 3462468 47N710004LT TiALN-LT 10,0 10 9,5 22,00 32,00 72 0,50 4 Straight-Cylindrical 3462470 47N710014LT TiALN-LT 10,0 10 9,5 22,00 32,00 72 1,00 4 Straight-Cylindrical 3462473 47N710034LT TiALN-LT 10,0 10 9,5 22,00 32,00 72 2,00 4 Straight-Cylindrical 3462475 47N712005LT TiALN-LT 12,0 12 11,5 26,00 38,00 83 0,50 4 Straight-Cylindrical 3462477 47N712015LT TiALN-LT 12,0 12 11,5 26,00 38,00 83 1,00 4 Straight-Cylindrical 3462480 47N712035LT TiALN-LT 12,0 12 11,5 26,00 38,00 83 2,00 4 Straight-Cylindrical 3462482 47N712045LT TiALN-LT 12,0 12 11,5 26,00 38,00 83 4,00 4 Straight-Cylindrical 3462484 47N716006LT TiALN-LT 16,0 16 15 32,00 44,00 92 1,00 4 Straight-Cylindrical 3462486 47N716016LT TiALN-LT 16,0 16 15 32,00 44,00 92 2,00 4 Straight-Cylindrical 3462488 47N716026LT TiALN-LT 16,0 16 15 32,00 44,00 92 4,00 4 Straight-Cylindrical 3462491 47N720007MT ALTIN-MT 20,0 20 19 38,00 55,00 104 1,00 4 Straight-Cylindrical 3462492 47N720017LT TiALN-LT 20,0 20 19 38,00 55,00 104 2,00 4 Straight-Cylindrical length of cut order catalogue D1 D D3 Ap1 max L3 L number Adaptor Style number number grade (mm) (mm) (mm) (mm) (mm) (mm) of flutes Machine Side Series 47N0 • VariMill I • Ball Nose • Victory™ Grades 5576818 47N005002T WP15PE 5,0 6 4,70 9,00 15,00 57 4 Straight-Cylindrical 5576819 47N006002T WP15PE 6,0 6 5,64 10,00 15,00 57 4 Straight-Cylindrical 5576820 47N008003T WP15PE 8,0 8 7,52 12,00 20,00 63 4 Straight-Cylindrical 5576821 47N010004T WP15PE 10,0 10 9,4 14,00 25,00 72 4 Straight-Cylindrical 5576822 47N012005T WP15PE 12,0 12 11,28 16,00 30,00 83 4 Straight-Cylindrical 5576823 47N016006T WP15PE 16,0 16 15,04 22,00 38,00 92 4 Straight-Cylindrical 5576824 47N020007T WP15PE 20,0 20 18,80 26,00 50,00 104 4 Straight-Cylindrical 76 widia.com
