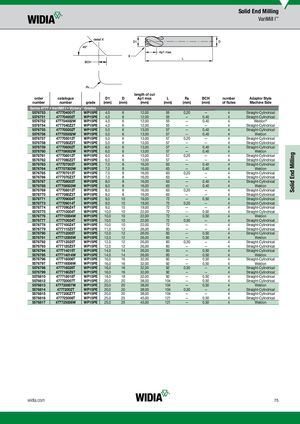

Каталог Widia all star 2019 - страница 77

Solid End Milling Solid End Milling VariMill I™ length of cut order catalogue D1 D Ap1 max L Re BCH number Adaptor Style number number grade (mm) (mm) (mm) (mm) (mm) (mm) of flutes Machine Side Series 4777 • VariMill I • Victory™ Grades 5576753 477704001T WP15PE 4,0 6 12,00 55 0,20 — 4 Straight-Cylindrical 5576751 477704002T WP15PE 4,0 6 12,00 55 — 0,40 4 Straight-Cylindrical 5576752 477704002W WP15PE 4,0 6 12,00 55 — 0,40 4 Weldon® 5576754 4777040Z2T WP15PE 4,0 6 12,00 55 — — 4 Straight-Cylindrical 5576755 477705002T WP15PE 5,0 6 13,00 57 — 0,40 4 Straight-Cylindrical 5576756 477705002W WP15PE 5,0 6 13,00 57 — 0,40 4 Weldon 5576757 477705012T WP15PE 5,0 6 13,00 57 0,20 — 4 Straight-Cylindrical 5576758 4777050Z2T WP15PE 5,0 6 13,00 57 — — 4 Straight-Cylindrical 5576759 477706002T WP15PE 6,0 6 13,00 57 — 0,40 4 Straight-Cylindrical 5576760 477706002W WP15PE 6,0 6 13,00 57 — 0,40 4 Weldon 5576761 477706012T WP15PE 6,0 6 13,00 57 0,20 — 4 Straight-Cylindrical 5576762 4777060Z2T WP15PE 6,0 6 13,00 57 — — 4 Straight-Cylindrical 5576763 477707003T WP15PE 7,0 8 16,00 63 — 0,40 4 Straight-Cylindrical 5576764 477707003W WP15PE 7,0 8 16,00 63 — 0,40 4 Weldon 5576765 477707013T WP15PE 7,0 8 16,00 63 0,20 — 4 Straight-Cylindrical 5576766 4777070Z3T WP15PE 7,0 8 16,00 63 — — 4 Straight-Cylindrical 5576767 477708003T WP15PE 8,0 8 16,00 63 — 0,40 4 Straight-Cylindrical 5576768 477708003W WP15PE 8,0 8 16,00 63 — 0,40 4 Weldon 5576769 477708013T WP15PE 8,0 8 16,00 63 0,20 — 4 Straight-Cylindrical 5576770 4777080Z3T WP15PE 8,0 8 16,00 63 — — 4 Straight-Cylindrical 5576771 477709004T WP15PE 9,0 10 19,00 72 — 0,50 4 Straight-Cylindrical 5576773 477709014T WP15PE 9,0 10 19,00 72 0,20 — 4 Straight-Cylindrical 5576774 4777090Z4T WP15PE 9,0 10 19,00 72 — — 4 Straight-Cylindrical 5576775 477710004T WP15PE 10,0 10 22,00 72 — 0,50 4 Straight-Cylindrical 5576776 477710004W WP15PE 10,0 10 22,00 72 — 0,50 4 Weldon 5576777 477710024T WP15PE 10,0 10 22,00 72 0,30 — 4 Straight-Cylindrical 5576778 4777100Z4T WP15PE 10,0 10 22,00 72 — — 4 Straight-Cylindrical 5576779 4777110Z5T WP15PE 11,0 12 26,00 83 — — 4 Straight-Cylindrical 5576790 477712005T WP15PE 12,0 12 26,00 83 — 0,50 4 Straight-Cylindrical 5576791 477712005W WP15PE 12,0 12 26,00 83 — 0,50 4 Weldon 5576792 477712025T WP15PE 12,0 12 26,00 83 0,30 — 4 Straight-Cylindrical 5576793 4777120Z5T WP15PE 12,0 12 26,00 83 — — 4 Straight-Cylindrical 5576794 477714015T WP15PE 14,0 14 26,00 83 — 0,50 4 Straight-Cylindrical 5576795 477714014W WP15PE 14,0 14 26,00 83 — 0,50 4 Weldon 5576796 477716006T WP15PE 16,0 16 32,00 92 — 0,50 4 Straight-Cylindrical 5576797 477716006W WP15PE 16,0 16 32,00 92 — 0,50 4 Weldon 5576798 477716026T WP15PE 16,0 16 32,00 92 0,30 — 4 Straight-Cylindrical 5576799 4777160Z6T WP15PE 16,0 16 32,00 92 — — 4 Straight-Cylindrical 5576810 477718018T WP15PE 18,0 18 32,00 92 — 0,50 4 Straight-Cylindrical 5576812 477720007T WP15PE 20,0 20 38,00 104 — 0,50 4 Straight-Cylindrical 5576813 477720007W WP15PE 20,0 20 38,00 104 — 0,50 4 Weldon 5576814 47772002T WP15PE 20,0 20 38,00 104 0,30 — 4 Straight-Cylindrical 5576815 4777200Z7T WP15PE 20,0 20 38,00 104 — — 4 Straight-Cylindrical 5576816 477725008T WP15PE 25,0 25 45,00 121 — 0,50 4 Straight-Cylindrical 5576817 477725008W WP15PE 25,0 25 45,00 121 — 0,50 4 Weldon widia.com 75
