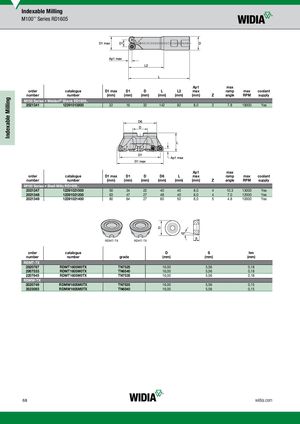

Каталог Widia all star 2019 - страница 70

Indexable Milling Indexable Milling M100™ Series RD1605 Ap1 max order catalogue D1 max D1 D L L2 max ramp max coolant number number (mm) (mm) (mm) (mm) (mm) (mm) Z angle RPM supply M100 Series • Weldon® Shank RD1605.. 2021341 12391013800 32 16 32 142 82 8,0 2 7.8 19000 Yes Ap1 max order catalogue D1 max D1 D D6 L max ramp max coolant number number (mm) (mm) (mm) (mm) (mm) (mm) Z angle RPM supply M100 Series • Shell Mills RD1605.. 2021347 12391021000 50 34 22 40 40 8,0 4 10.3 13000 Yes 2021348 12391021200 63 47 27 48 40 8,0 4 7.0 12000 Yes 2021349 12391021400 80 64 27 60 50 8,0 5 4.8 10000 Yes RDMT-TX RDHT-TX order catalogue D S hm number number grade (mm) (mm) (mm) RDMT-TX 2020767 RDMT1605M0TX TN7525 16,00 5,56 0,18 2957533 RDMT1605M0TX TN6540 16,00 5,56 0,18 2207645 RDMT1605M0TX TN7535 16,00 5,56 0,18 RDMW-TX 2020749 RDMW1605M0TX TN7535 16,00 5,56 0,15 3523083 RDMW1605M0TX TN6540 16,00 5,56 0,15 68 widia.com
