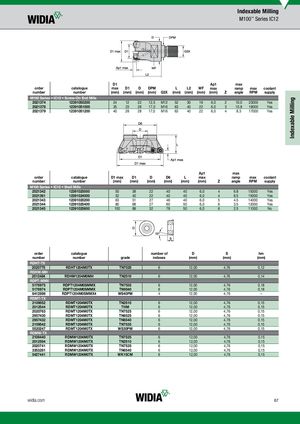

Каталог Widia all star 2019 - страница 69

Indexable Milling Indexable Milling M100™ Series IC12 D1 Ap1 max order catalogue max D1 D DPM L L2 WF max ramp max coolant number number (mm) (mm) (mm) (mm) G3X (mm) (mm) (mm) (mm) Z angle RPM supply M100 Series • IC12 • Screw-On End Mills 2021374 12391050200 24 12 22 12,5 M12 52 30 19 6,0 2 10.0 23000 Yes 2021378 12391051000 35 23 28 17,0 M16 63 40 22 6,0 3 10.8 19000 Yes 2021379 12391051200 40 28 28 17,0 M16 63 40 22 6,0 4 8.3 17000 Yes Ap1 max order catalogue D1 max D1 D D6 L max ramp max coolant number number (mm) (mm) (mm) (mm) (mm) (mm) Z angle RPM supply M100 Series • IC12 • Shell Mills 2021342 12391020000 50 38 22 40 40 6,0 4 6.8 15000 Yes 2021361 12391024000 52 40 22 40 40 6,0 4 6.5 15000 Yes 2021343 12391020200 63 51 27 48 40 6,0 5 4.5 14000 Yes 2021344 12391020400 80 68 27 60 50 6,0 6 3.5 12000 Yes 2021345 12391020600 100 88 32 78 50 6,0 6 2.5 11000 No order catalogue number of D S hm number number grade indexes (mm) (mm) (mm) RDHT-TX 2020775 RDHT1204M0TX TN7525 6 12,00 4,76 0,12 RDHW-MH 2012484 RDHW1204M0MH TN2510 6 12,00 4,76 0,14 RDPT-MMX 5176975 RDPT1204M0SMMX TN7535 6 12,00 4,76 0,18 5176974 RDPT1204M0SMMX TN6540 6 12,00 4,76 0,18 6412898 RDPT1204M0SMMX4 WS40PM 4 12,00 4,76 – RDMT-TX 2109552 RDMT1204M0TX TN2510 6 12,00 4,76 0,15 2012544 RDMT1204M0TX THM 6 12,00 4,76 0,15 2020763 RDMT1204M0TX TN7525 6 12,00 4,76 0,15 2957430 RDMT1204M0TX TN6525 6 12,00 4,76 0,15 2957432 RDMT1204M0TX TN6540 6 12,00 4,76 0,15 2109542 RDMT1204M0TX TN7535 6 12,00 4,76 0,15 5520247 RDMT1204M0TX WS30PM 6 12,00 4,76 0,15 RDMW-TX 2109440 RDMW1204M0TX TN7525 6 12,00 4,76 0,15 2012594 RDMW1204M0TX TN2510 6 12,00 4,76 0,15 2020741 RDMW1204M0TX TN7535 6 12,00 4,76 0,15 3353281 RDMW1204M0TX TN6540 6 12,00 4,76 0,15 5427441 RDMW1204M0TX WK15CM 6 12,00 4,76 0,15 widia.com 67
