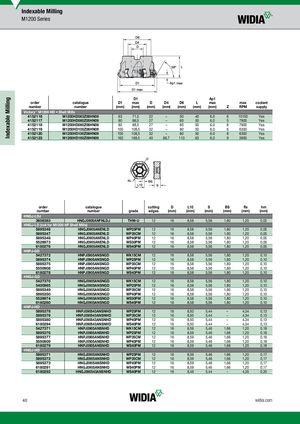

Каталог Widia all star 2019 - страница 42
Навигация
Каталог Widia all star 2020
Каталог Widia токарный инструмент 2017
Каталог Widia достижения 2018
Каталог Widia достижения 2017
Брошюра Widia техническое руководство
D1 Ap1
| order | catalogue | D1 | max | D | D4 | D6 | L | max | max | coolant | ||
| number | number | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | Z | RPM | supply | |
| Victory™ M1200 HD • Shell Mills | ||||||||||||
| 4152116 | M1200HD063Z06HN09 | 63 | 71,5 | 22 | – | 50 | 40 | 6,0 | 6 | 10100 | Yes | |
| 4152117 | M1200HD080Z05HN09 | 80 | 88,5 | 27 | – | 60 | 50 | 6,0 | 5 | 7900 | Yes | |
| 4152118 | M1200HD080Z08HN09 | 80 | 88,5 | 27 | – | 60 | 50 | 6,0 | 8 | 7900 | Yes | |
| 4152119 | M1200HD100Z06HN09 | 100 | 108,5 | 32 | – | 80 | 50 | 6,0 | 6 | 6300 | Yes | |
| 4152120 | M1200HD100Z08HN09 | 100 | 108,5 | 32 | – | 80 | 50 | 6,0 | 8 | 6300 | Yes | |
| 4152123 | M1200HD160Z09HN09 | 160 | 168,5 | 40 | 66,7 | 110 | 63 | 6,0 | 9 | 3900 | Yes |
| order | catalogue | cutting | D | L10 | S | BS | R ε | hm | |
| number | number | grade | edges | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) |
| HNGJ-LDJ | |||||||||
| 3606383 | HNGJ0905ANFNLDJ | THM-U | 12 | 16 | 8,58 | 5,56 | 1,80 | 1,20 | 0,02 |
| HNGJ-LD (not for M1200 | HF Shell Mills) | ||||||||
| 5895346 | HNGJ0905ANENLD | WP25PM | 12 | 16 | 8,58 | 5,56 | 1,80 | 1,20 | 0,05 |
| 5895347 | HNGJ0905ANENLD | WP35CM | 12 | 16 | 8,58 | 5,56 | 1,80 | 1,20 | 0,05 |
| 5895348 | HNGJ0905ANENLD | WP40PM | 12 | 16 | 8,58 | 5,56 | 1,80 | 1,20 | 0,05 |
| 5528973 | HNGJ0905ANENLD | WS30PM | 12 | 16 | 8,58 | 5,56 | 1,80 | 1,20 | 0,05 |
| 6180276 | HNGJ0905ANENLD | WS40PM | 12 | 16 | 8,58 | 5,56 | 1,80 | 1,20 | 0,05 |
| HNPJ-GD | |||||||||
| 5427372 | HNPJ0905ANSNGD | WK15CM | 12 | 16 | 8,58 | 5,56 | 1,80 | 1,20 | 0,10 |
| 5895374 | HNPJ0905ANSNGD | WP25PM | 12 | 16 | 8,58 | 5,56 | 1,80 | 1,20 | 0,10 |
| 5895375 | HNPJ0905ANSNGD | WP35CM | 12 | 16 | 8,58 | 5,56 | 1,80 | 1,20 | 0,10 |
| 5550908 | HNPJ0905ANSNGD | WP40PM | 12 | 16 | 8,58 | 5,56 | 1,80 | 1,20 | 0,10 |
| 6180278 | HNPJ0905ANSNGD | WS40PM | 12 | 16 | 8,58 | 5,56 | 1,80 | 1,20 | 0,10 |
| HNGJ-GD | |||||||||
| 5427370 | HNGJ0905ANSNGD | WK15CM | 12 | 16 | 8,58 | 5,56 | 1,80 | 1,20 | 0,10 |
| 5400965 | HNGJ0905ANSNGD | WP25PM | 12 | 16 | 8,58 | 5,56 | 1,80 | 1,20 | 0,10 |
| 5895349 | HNGJ0905ANSNGD | WP35CM | 12 | 16 | 8,58 | 5,56 | 1,80 | 1,20 | 0,10 |
| 5895350 | HNGJ0905ANSNGD | WP40PM | 12 | 16 | 8,58 | 5,56 | 1,80 | 1,20 | 0,10 |
| 5528974 | HNGJ0905ANSNGD | WS30PM | 12 | 16 | 8,58 | 5,56 | 1,80 | 1,20 | 0,10 |
| 6180280 | HNGJ0905ANSNGD | WS40PM | 12 | 16 | 8,58 | 5,56 | 1,80 | 1,20 | 0,10 |
| HNPJ-HD | |||||||||
| 5895378 | HNPJ090543ANSNHD | WP25PM | 12 | 16 | 8,50 | 5,44 | – | 4,34 | 0,13 |
| 5895379 | HNPJ090543ANSNHD | WP35CM | 12 | 16 | 8,50 | 5,44 | – | 4,34 | 0,13 |
| 5895380 | HNPJ090543ANSNHD | WP40PM | 12 | 16 | 8,50 | 5,44 | – | 4,34 | 0,13 |
| 6180294 | HNPJ090543ANSNHD | WS40PM | 12 | 16 | 8,50 | 5,44 | – | 4,34 | 0,13 |
| 5427371 | HNPJ0905ANSNHD | WK15CM | 12 | 16 | 8,59 | 5,46 | 1,66 | 1,20 | 0,18 |
| 5895376 | HNPJ0905ANSNHD | WP25PM | 12 | 16 | 8,59 | 5,46 | 1,66 | 1,20 | 0,18 |
| 5895377 | HNPJ0905ANSNHD | WP35CM | 12 | 16 | 8,59 | 5,46 | 1,66 | 1,20 | 0,18 |
| 5550909 | HNPJ0905ANSNHD | WP40PM | 12 | 16 | 8,59 | 5,46 | 1,66 | 1,20 | 0,18 |
| 6180279 | HNPJ0905ANSNHD | WS40PM | 12 | 16 | 8,59 | 5,46 | 1,66 | 1,20 | 0,18 |
| HNGJ-HD | |||||||||
| 5895371 | HNGJ0905ANSNHD | WP25PM | 12 | 16 | 8,59 | 5,46 | 1,66 | 1,20 | 0,17 |
| 5895372 | HNGJ0905ANSNHD | WP35CM | 12 | 16 | 8,59 | 5,46 | 1,66 | 1,20 | 0,17 |
| 5895373 | HNGJ0905ANSNHD | WP40PM | 12 | 16 | 8,59 | 5,46 | 1,66 | 1,20 | 0,17 |
| 6180291 | HNGJ0905ANSNHD | WS40PM | 12 | 16 | 8,59 | 5,46 | 1,66 | 1,20 | 0,17 |
| 6180292 | HNGJ090543ANSNHD | WS40PM | 12 | 16 | 8,49 | 5,44 | – | 4,35 | 0,20 |
