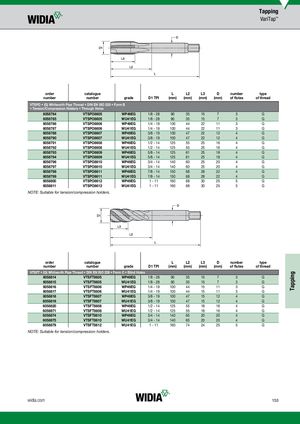

Каталог Widia all star 2019 - страница 155

Tapping VariTap™ order catalogue L L2 L3 D number type number number grade D1 TPI (mm) (mm) (mm) (mm) of flutes of thread VTSPO • (G) Whitworth Pipe Thread • DIN EN ISO 228 • Form B • Tension/Compression Holders • Through Holes 6058784 VTSPO8605 WP49EG 1/8 - 28 90 35 15 7 3 G 6058785 VTSPO8605 WU41EG 1/8 - 28 90 35 15 7 3 G 6058786 VTSPO8606 WP49EG 1/4 - 19 100 44 22 11 3 G 6058787 VTSPO8606 WU41EG 1/4 - 19 100 44 22 11 3 G 6058788 VTSPO8607 WP49EG 3/8 - 19 100 47 22 12 4 G 6058790 VTSPO8607 WU41EG 3/8 - 19 100 47 22 12 4 G 6058791 VTSPO8608 WP49EG 1/2 - 14 125 55 25 16 4 G 6058792 VTSPO8608 WU41EG 1/2 - 14 125 55 25 16 4 G 6058793 VTSPO8609 WP49EG 5/8 - 14 125 61 25 18 4 G 6058794 VTSPO8609 WU41EG 5/8 - 14 125 61 25 18 4 G 6058796 VTSPO8610 WP49EG 3/4 - 14 140 60 25 20 4 G 6058797 VTSPO8610 WU41EG 3/4 - 14 140 60 25 20 4 G 6058798 VTSPO8611 WP49EG 7/8 - 14 150 68 28 22 4 G 6058799 VTSPO8611 WU41EG 7/8 - 14 150 68 28 22 4 G 6058800 VTSPO8612 WP49EG 1 - 11 160 68 30 25 5 G 6058811 VTSPO8612 WU41EG 1 - 11 160 68 30 25 5 G NOTE: Suitable for tension/compression holders. order catalogue L L2 L3 D number type number number grade D1 TPI (mm) (mm) (mm) (mm) of flutes of thread VTSFT • (G) Whitworth Pipe Thread • DIN EN ISO 228 • Form C • Blind Holes 6058814 VTSFT8605 WP49EG 1/8 - 28 90 35 15 7 3 G 6058815 VTSFT8605 WU41EG 1/8 - 28 90 35 15 7 3 G 6058816 VTSFT8606 WP49EG 1/4 - 19 100 44 15 11 3 G 6058817 VTSFT8606 WU41EG 1/4 - 19 100 44 15 11 3 G 6058818 VTSFT8607 WP49EG 3/8 - 19 100 47 15 12 4 G 6058819 VTSFT8607 WU41EG 3/8 - 19 100 47 15 12 4 G 6058820 VTSFT8608 WP49EG 1/2 - 14 125 55 18 16 4 G 6058871 VTSFT8608 WU41EG 1/2 - 14 125 55 18 16 4 G 6058874 VTSFT8610 WP49EG 3/4 - 14 140 65 20 20 4 G 6058875 VTSFT8610 WU41EG 3/4 - 14 140 65 20 20 4 G 6058879 VTSFT8612 WU41EG 1 - 11 160 74 24 25 5 G NOTE: Suitable for tension/compression holders. widia.com 153 Tapping
