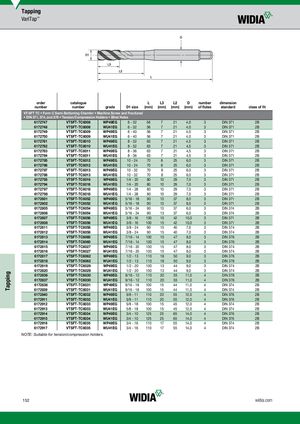

Каталог Widia all star 2019 - страница 154

Tapping VariTap™ order catalogue L L3 L2 D number dimension number number grade D1 size (mm) (mm) (mm) (mm) of flutes standard class of fit VT-SFT TC • Form C Semi-Bottoming Chamfer • Machine Screw and Fractional • DIN 371, 374, and 376 • Tension/Compression Holders • Blind Holes 6172747 VTSFT-TC6008 WP49EG 6 - 32 56 7 21 4,0 3 DIN 371 2B 6172748 VTSFT-TC6008 WU41EG 6 - 32 56 7 21 4,0 3 DIN 371 2B 6172749 VTSFT-TC6009 WP49EG 6 - 40 56 7 21 4,0 3 DIN 371 2B 6172750 VTSFT-TC6009 WU41EG 6 - 40 56 7 21 4,0 3 DIN 371 2B 6172781 VTSFT-TC6010 WP49EG 8 - 32 63 7 21 4,5 3 DIN 371 2B 6172782 VTSFT-TC6010 WU41EG 8 - 32 63 7 21 4,5 3 DIN 371 2B 6172783 VTSFT-TC6011 WP49EG 8 - 36 63 7 21 4,5 3 DIN 371 2B 6172784 VTSFT-TC6011 WU41EG 8 - 36 63 7 21 4,5 3 DIN 371 2B 6172785 VTSFT-TC6012 WP49EG 10 - 24 70 8 25 6,0 3 DIN 371 2B 6172786 VTSFT-TC6012 WU41EG 10 - 24 70 8 25 6,0 3 DIN 371 2B 6172787 VTSFT-TC6013 WP49EG 10 - 32 70 8 25 6,0 3 DIN 371 2B 6172788 VTSFT-TC6013 WU41EG 10 - 32 70 8 25 6,0 3 DIN 371 2B 6172793 VTSFT-TC6016 WP49EG 1/4 - 20 80 10 29 7,0 3 DIN 371 2B 6172794 VTSFT-TC6016 WU41EG 1/4 - 20 80 10 29 7,0 3 DIN 371 2B 6172797 VTSFT-TC6018 WP49EG 1/4 - 28 80 10 29 7,0 3 DIN 371 2B 6172798 VTSFT-TC6018 WU41EG 1/4 - 28 80 10 29 7,0 3 DIN 371 2B 6172801 VTSFT-TC6052 WP49EG 5/16 - 18 90 13 37 8,0 3 DIN 371 2B 6172802 VTSFT-TC6052 WU41EG 5/16 - 18 90 13 37 8,0 3 DIN 371 2B 6172805 VTSFT-TC6054 WP49EG 5/16 - 24 90 13 37 6,0 3 DIN 374 2B 6172806 VTSFT-TC6054 WU41EG 5/16 - 24 90 13 37 6,0 3 DIN 374 2B 6172807 VTSFT-TC6056 WP49EG 3/8 - 16 100 15 42 10,0 3 DIN 371 2B 6172808 VTSFT-TC6056 WU41EG 3/8 - 16 100 15 42 10,0 3 DIN 371 2B 6172811 VTSFT-TC6058 WP49EG 3/8 - 24 90 15 40 7,0 3 DIN 374 2B 6172812 VTSFT-TC6058 WU41EG 3/8 - 24 90 15 40 7,0 3 DIN 374 2B 6172813 VTSFT-TC6060 WP49EG 7/16 - 14 100 15 47 8,0 3 DIN 376 2B 6172814 VTSFT-TC6060 WU41EG 7/16 - 14 100 15 47 8,0 3 DIN 376 2B 6172815 VTSFT-TC6027 WP49EG 7/16 - 20 100 15 47 8,0 3 DIN 374 2B 6172816 VTSFT-TC6027 WU41EG 7/16 - 20 100 15 47 8,0 3 DIN 374 2B 6172817 VTSFT-TC6062 WP49EG 1/2 - 13 110 18 50 9,0 3 DIN 376 2B 6172818 VTSFT-TC6062 WU41EG 1/2 - 13 110 18 50 9,0 3 DIN 376 2B 6172819 VTSFT-TC6029 WP49EG 1/2 - 20 100 13 44 9,0 3 DIN 374 2B 6172820 VTSFT-TC6029 WU41EG 1/2 - 20 100 13 44 9,0 3 DIN 374 2B 6172836 VTSFT-TC6030 WP49EG 9/16 - 12 110 20 55 11,0 4 DIN 376 2B 6172837 VTSFT-TC6030 WU41EG 9/16 - 12 110 20 55 11,0 4 DIN 376 2B 6172838 VTSFT-TC6031 WP49EG 9/16 - 18 100 15 44 11,0 4 DIN 374 2B 6172839 VTSFT-TC6031 WU41EG 9/16 - 18 100 15 44 11,0 4 DIN 374 2B 6172840 VTSFT-TC6032 WP49EG 5/8 - 11 110 20 55 12,0 4 DIN 376 2B 6172911 VTSFT-TC6032 WU41EG 5/8 - 11 110 20 55 12,0 4 DIN 376 2B 6172912 VTSFT-TC6033 WP49EG 5/8 - 18 100 15 45 12,0 4 DIN 374 2B 6172913 VTSFT-TC6033 WU41EG 5/8 - 18 100 15 45 12,0 4 DIN 374 2B 6172914 VTSFT-TC6034 WP49EG 3/4 - 10 125 25 65 14,0 4 DIN 376 2B 6172915 VTSFT-TC6034 WU41EG 3/4 - 10 125 25 65 14,0 4 DIN 376 2B 6172916 VTSFT-TC6035 WP49EG 3/4 - 16 110 17 55 14,0 4 DIN 374 2B 6172917 VTSFT-TC6035 WU41EG 3/4 - 16 110 17 55 14,0 4 DIN 374 2B NOTE: Suitable for tension/compression holders. 152 widia.com Tapping
