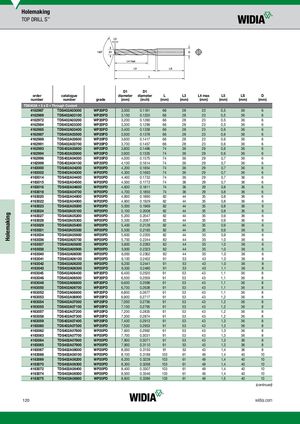

Каталог Widia all star 2019 - страница 122

Holemaking TOP DRILL S™ D1 D1 order catalogue diameter diameter L L3 L4 max L5 LS D number number grade (mm) (inch) (mm) (mm) (mm) (mm) (mm) (mm) TDS402A • 5 x D • Through Coolant 4162967 TDS402A03000 WP20PD 3,000 0.1181 66 28 23 0,5 36 6 4162969 TDS402A03100 WP20PD 3,100 0.1220 66 28 23 0,5 36 6 4162972 TDS402A03200 WP20PD 3,200 0.1260 66 28 23 0,5 36 6 4162984 TDS402A03300 WP20PD 3,300 0.1299 66 28 23 0,5 36 6 4162985 TDS402A03400 WP20PD 3,400 0.1339 66 28 23 0,6 36 6 4162987 TDS402A03500 WP20PD 3,500 0.1378 66 28 23 0,6 36 6 4162989 TDS402A03600 WP20PD 3,600 0.1417 66 28 23 0,6 36 6 4162991 TDS402A03700 WP20PD 3,700 0.1457 66 28 23 0,6 36 6 4162993 TDS402A03800 WP20PD 3,800 0.1496 74 36 29 0,6 36 6 4162994 TDS402A03900 WP20PD 3,900 0.1535 74 36 29 0,6 36 6 4162996 TDS402A04000 WP20PD 4,000 0.1575 74 36 29 0,7 36 6 4162999 TDS402A04100 WP20PD 4,100 0.1614 74 36 29 0,7 36 6 4163000 TDS402A04200 WP20PD 4,200 0.1654 74 36 29 0,7 36 6 4163002 TDS402A04300 WP20PD 4,300 0.1693 74 36 29 0,7 36 6 4163014 TDS402A04400 WP20PD 4,400 0.1732 74 36 29 0,7 36 6 4163015 TDS402A04500 WP20PD 4,500 0.1772 74 36 29 0,7 36 6 4163016 TDS402A04600 WP20PD 4,600 0.1811 74 36 29 0,8 36 6 4163018 TDS402A04700 WP20PD 4,700 0.1850 74 36 29 0,8 36 6 4163020 TDS402A04800 WP20PD 4,800 0.1890 82 44 35 0,8 36 6 4163022 TDS402A04900 WP20PD 4,900 0.1929 82 44 35 0,8 36 6 4163023 TDS402A05000 WP20PD 5,000 0.1969 82 44 35 0,8 36 6 4163024 TDS402A05100 WP20PD 5,100 0.2008 82 44 35 0,8 36 6 4163027 TDS402A05200 WP20PD 5,200 0.2047 82 44 35 0,9 36 6 4163028 TDS402A05300 WP20PD 5,300 0.2087 82 44 35 0,9 36 6 4163029 TDS402A05400 WP20PD 5,400 0.2126 82 44 35 0,9 36 6 4163031 TDS402A05500 WP20PD 5,500 0.2165 82 44 35 0,9 36 6 4163034 TDS402A05600 WP20PD 5,600 0.2205 82 44 35 0,9 36 6 4163036 TDS402A05700 WP20PD 5,700 0.2244 82 44 35 1,0 36 6 4163037 TDS402A05800 WP20PD 5,800 0.2283 82 44 35 1,0 36 6 4163038 TDS402A05900 WP20PD 5,900 0.2323 82 44 35 1,0 36 6 4163040 TDS402A06000 WP20PD 6,000 0.2362 82 44 35 1,0 36 6 4163041 TDS402A06100 WP20PD 6,100 0.2402 91 53 43 1,0 36 8 4163042 TDS402A06200 WP20PD 6,200 0.2441 91 53 43 1,0 36 8 4163043 TDS402A06300 WP20PD 6,300 0.2480 91 53 43 1,1 36 8 4163045 TDS402A06400 WP20PD 6,400 0.2520 91 53 43 1,1 36 8 4163046 TDS402A06500 WP20PD 6,500 0.2559 91 53 43 1,1 36 8 4163048 TDS402A06600 WP20PD 6,600 0.2598 91 53 43 1,1 36 8 4163050 TDS402A06700 WP20PD 6,700 0.2638 91 53 43 1,1 36 8 4163052 TDS402A06800 WP20PD 6,800 0.2677 91 53 43 1,1 36 8 4163053 TDS402A06900 WP20PD 6,900 0.2717 91 53 43 1,2 36 8 4163054 TDS402A07000 WP20PD 7,000 0.2756 91 53 43 1,2 36 8 4163055 TDS402A07100 WP20PD 7,100 0.2795 91 53 43 1,2 36 8 4163057 TDS402A07200 WP20PD 7,200 0.2835 91 53 43 1,2 36 8 4163058 TDS402A07300 WP20PD 7,300 0.2874 91 53 43 1,2 36 8 4163059 TDS402A07400 WP20PD 7,400 0.2913 91 53 43 1,3 36 8 4163060 TDS402A07500 WP20PD 7,500 0.2953 91 53 43 1,3 36 8 4163062 TDS402A07600 WP20PD 7,600 0.2992 91 53 43 1,3 36 8 4163063 TDS402A07700 WP20PD 7,700 0.3031 91 53 43 1,3 36 8 4163064 TDS402A07800 WP20PD 7,800 0.3071 91 53 43 1,3 36 8 4163065 TDS402A07900 WP20PD 7,900 0.3110 91 53 43 1,3 36 8 4163067 TDS402A08000 WP20PD 8,000 0.3150 91 53 43 1,4 36 8 4163068 TDS402A08100 WP20PD 8,100 0.3189 103 61 49 1,4 40 10 4163069 TDS402A08200 WP20PD 8,200 0.3228 103 61 49 1,4 40 10 4163070 TDS402A08300 WP20PD 8,300 0.3268 103 61 49 1,4 40 10 4163072 TDS402A08400 WP20PD 8,400 0.3307 103 61 49 1,4 40 10 4163074 TDS402A08500 WP20PD 8,500 0.3346 103 61 49 1,4 40 10 4163075 TDS402A08600 WP20PD 8,600 0.3386 103 61 49 1,5 40 10 (continued) 120 widia.com Holemaking
