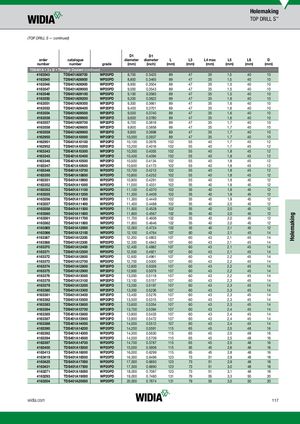

Holemaking TOP DRILL S™ (TOP DRILL S — continued) D1 D1 order catalogue diameter diameter L L3 L4 max L5 LS D number number grade (mm) (inch) (mm) (mm) (mm) (mm) (mm) (mm) TDS401A • 3 x D • Through Coolant (continued) 4163543 TDS401A08700 WP20PD 8,700 0.3425 89 47 35 1,5 40 10 4163545 TDS401A08800 WP20PD 8,800 0.3465 89 47 35 1,5 40 10 4163546 TDS401A08900 WP20PD 8,900 0.3504 89 47 35 1,5 40 10 4163547 TDS401A09000 WP20PD 9,000 0.3543 89 47 35 1,5 40 10 4163548 TDS401A09100 WP20PD 9,100 0.3583 89 47 35 1,5 40 10 4163550 TDS401A09200 WP20PD 9,200 0.3622 89 47 35 1,6 40 10 4163551 TDS401A09300 WP20PD 9,300 0.3661 89 47 35 1,6 40 10 4163553 TDS401A09400 WP20PD 9,400 0.3701 89 47 35 1,6 40 10 4163554 TDS401A09500 WP20PD 9,500 0.3740 89 47 35 1,6 40 10 4163556 TDS401A09600 WP20PD 9,600 0.3780 89 47 35 1,6 40 10 4163557 TDS401A09700 WP20PD 9,700 0.3819 89 47 35 1,7 40 10 4163558 TDS401A09800 WP20PD 9,800 0.3858 89 47 35 1,7 40 10 4163559 TDS401A09900 WP20PD 9,900 0.3898 89 47 35 1,7 40 10 4162950 TDS401A10000 WP20PD 10,000 0.3937 89 47 35 1,7 40 10 4162951 TDS401A10100 WP20PD 10,100 0.3976 102 55 40 1,7 45 12 4162952 TDS401A10200 WP20PD 10,200 0.4016 102 55 40 1,7 45 12 4163343 TDS401A10300 WP20PD 10,300 0.4055 102 55 40 1,8 45 12 4163345 TDS401A10400 WP20PD 10,400 0.4094 102 55 40 1,8 45 12 4163346 TDS401A10500 WP20PD 10,500 0.4134 102 55 40 1,8 45 12 4163347 TDS401A10600 WP20PD 10,600 0.4173 102 55 40 1,8 45 12 4163348 TDS401A10700 WP20PD 10,700 0.4213 102 55 40 1,8 45 12 4163350 TDS401A10800 WP20PD 10,800 0.4252 102 55 40 1,8 45 12 4163351 TDS401A10900 WP20PD 10,900 0.4291 102 55 40 1,9 45 12 4163352 TDS401A11000 WP20PD 11,000 0.4331 102 55 40 1,9 45 12 4163353 TDS401A11100 WP20PD 11,100 0.4370 102 55 40 1,9 45 12 4163355 TDS401A11200 WP20PD 11,200 0.4409 102 55 40 1,9 45 12 4163356 TDS401A11300 WP20PD 11,300 0.4449 102 55 40 1,9 45 12 4163357 TDS401A11400 WP20PD 11,400 0.4488 102 55 40 2,0 45 12 4163358 TDS401A11500 WP20PD 11,500 0.4528 102 55 40 2,0 45 12 4163360 TDS401A11600 WP20PD 11,600 0.4567 102 55 40 2,0 45 12 4163361 TDS401A11700 WP20PD 11,700 0.4606 102 55 40 2,0 45 12 4163362 TDS401A11800 WP20PD 11,800 0.4646 102 55 40 2,0 45 12 4163365 TDS401A12000 WP20PD 12,000 0.4724 102 55 40 2,1 45 12 4163366 TDS401A12100 WP20PD 12,100 0.4764 107 60 43 2,1 45 14 4163367 TDS401A12200 WP20PD 12,200 0.4803 107 60 43 2,1 45 14 4163368 TDS401A12300 WP20PD 12,300 0.4843 107 60 43 2,1 45 14 4163370 TDS401A12400 WP20PD 12,400 0.4882 107 60 43 2,1 45 14 4163371 TDS401A12500 WP20PD 12,500 0.4921 107 60 43 2,1 45 14 4163372 TDS401A12600 WP20PD 12,600 0.4961 107 60 43 2,2 45 14 4163373 TDS401A12700 WP20PD 12,700 0.5000 107 60 43 2,2 45 14 4163374 TDS401A12800 WP20PD 12,800 0.5039 107 60 43 2,2 45 14 4163375 TDS401A12900 WP20PD 12,900 0.5079 107 60 43 2,2 45 14 4163376 TDS401A13000 WP20PD 13,000 0.5118 107 60 43 2,2 45 14 4163378 TDS401A13100 WP20PD 13,100 0.5157 107 60 43 2,3 45 14 4163379 TDS401A13200 WP20PD 13,200 0.5197 107 60 43 2,3 45 14 4163380 TDS401A13300 WP20PD 13,300 0.5236 107 60 43 2,3 45 14 4163381 TDS401A13400 WP20PD 13,400 0.5276 107 60 43 2,3 45 14 4163382 TDS401A13500 WP20PD 13,500 0.5315 107 60 43 2,3 45 14 4163383 TDS401A13600 WP20PD 13,600 0.5354 107 60 43 2,3 45 14 4163384 TDS401A13700 WP20PD 13,700 0.5394 107 60 43 2,4 45 14 4163385 TDS401A13800 WP20PD 13,800 0.5433 107 60 43 2,4 45 14 4163387 TDS401A13900 WP20PD 13,900 0.5472 107 60 43 2,4 45 14 4163388 TDS401A14000 WP20PD 14,000 0.5512 107 60 43 2,4 45 14 4163390 TDS401A14200 WP20PD 14,200 0.5591 115 65 45 2,5 48 16 4163392 TDS401A14300 WP20PD 14,300 0.5630 115 65 45 2,5 48 16 4163394 TDS401A14500 WP20PD 14,500 0.5709 115 65 45 2,5 48 16 4163397 TDS401A14700 WP20PD 14,700 0.5787 115 65 45 2,5 48 16 4163400 TDS401A15000 WP20PD 15,000 0.5906 115 65 45 2,6 48 16 4163413 TDS401A16000 WP20PD 16,000 0.6299 115 65 45 2,8 48 16 4163419 TDS401A16500 WP20PD 16,500 0.6496 123 73 51 2,9 48 18 4163425 TDS401A17000 WP20PD 17,000 0.6693 123 73 51 2,9 48 18 4163431 TDS401A17500 WP20PD 17,500 0.6890 123 73 51 3,0 48 18 4163271 TDS401A18000 WP20PD 18,000 0.7087 123 73 51 3,1 48 18 4163293 TDS401A19000 WP20PD 19,000 0.7480 131 79 55 3,3 50 20 4163304 TDS401A20000 WP20PD 20,000 0.7874 131 79 55 3,5 50 20 widia.com 117 Holemaking
