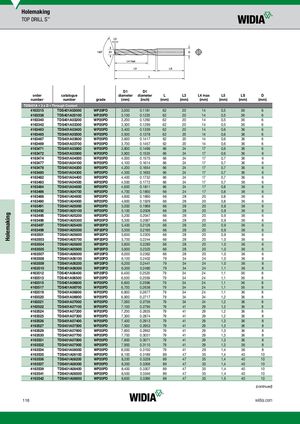

Каталог Widia all star 2019 - страница 118

Holemaking TOP DRILL S™ D1 D1 order catalogue diameter diameter L L3 L4 max L5 LS D number number grade (mm) (inch) (mm) (mm) (mm) (mm) (mm) (mm) TDS401A • 3 x D • Through Coolant 4163315 TDS401A03000 WP20PD 3,000 0.1181 62 20 14 0,5 36 6 4163338 TDS401A03100 WP20PD 3,100 0.1220 62 20 14 0,5 36 6 4163340 TDS401A03200 WP20PD 3,200 0.1260 62 20 14 0,5 36 6 4163342 TDS401A03300 WP20PD 3,300 0.1299 62 20 14 0,5 36 6 4163463 TDS401A03400 WP20PD 3,400 0.1339 62 20 14 0,6 36 6 4163465 TDS401A03500 WP20PD 3,500 0.1378 62 20 14 0,6 36 6 4163467 TDS401A03600 WP20PD 3,600 0.1417 62 20 14 0,6 36 6 4163469 TDS401A03700 WP20PD 3,700 0.1457 62 20 14 0,6 36 6 4163471 TDS401A03800 WP20PD 3,800 0.1496 66 24 17 0,6 36 6 4163472 TDS401A03900 WP20PD 3,900 0.1535 66 24 17 0,6 36 6 4163474 TDS401A04000 WP20PD 4,000 0.1575 66 24 17 0,7 36 6 4163477 TDS401A04100 WP20PD 4,100 0.1614 66 24 17 0,7 36 6 4163478 TDS401A04200 WP20PD 4,200 0.1654 66 24 17 0,7 36 6 4163480 TDS401A04300 WP20PD 4,300 0.1693 66 24 17 0,7 36 6 4163482 TDS401A04400 WP20PD 4,400 0.1732 66 24 17 0,7 36 6 4163483 TDS401A04500 WP20PD 4,500 0.1772 66 24 17 0,7 36 6 4163484 TDS401A04600 WP20PD 4,600 0.1811 66 24 17 0,8 36 6 4163486 TDS401A04700 WP20PD 4,700 0.1850 66 24 17 0,8 36 6 4163488 TDS401A04800 WP20PD 4,800 0.1890 66 28 20 0,8 36 6 4163490 TDS401A04900 WP20PD 4,900 0.1929 66 28 20 0,8 36 6 4163491 TDS401A05000 WP20PD 5,000 0.1969 66 28 20 0,8 36 6 4163492 TDS401A05100 WP20PD 5,100 0.2008 66 28 20 0,8 36 6 4163495 TDS401A05200 WP20PD 5,200 0.2047 66 28 20 0,9 36 6 4163496 TDS401A05300 WP20PD 5,300 0.2087 66 28 20 0,9 36 6 4163497 TDS401A05400 WP20PD 5,400 0.2126 66 28 20 0,9 36 6 4163499 TDS401A05500 WP20PD 5,500 0.2165 66 28 20 0,9 36 6 4163501 TDS401A05600 WP20PD 5,600 0.2205 66 28 20 0,9 36 6 4163503 TDS401A05700 WP20PD 5,700 0.2244 66 28 20 1,0 36 6 4163504 TDS401A05800 WP20PD 5,800 0.2283 66 28 20 1,0 36 6 4163505 TDS401A05900 WP20PD 5,900 0.2323 66 28 20 1,0 36 6 4163507 TDS401A06000 WP20PD 6,000 0.2362 66 28 20 1,0 36 6 4163508 TDS401A06100 WP20PD 6,100 0.2402 79 34 24 1,0 36 8 4163509 TDS401A06200 WP20PD 6,200 0.2441 79 34 24 1,0 36 8 4163510 TDS401A06300 WP20PD 6,300 0.2480 79 34 24 1,1 36 8 4163512 TDS401A06400 WP20PD 6,400 0.2520 79 34 24 1,1 36 8 4163513 TDS401A06500 WP20PD 6,500 0.2559 79 34 24 1,1 36 8 4163515 TDS401A06600 WP20PD 6,600 0.2598 79 34 24 1,1 36 8 4163517 TDS401A06700 WP20PD 6,700 0.2638 79 34 24 1,1 36 8 4163519 TDS401A06800 WP20PD 6,800 0.2677 79 34 24 1,1 36 8 4163520 TDS401A06900 WP20PD 6,900 0.2717 79 34 24 1,2 36 8 4163521 TDS401A07000 WP20PD 7,000 0.2756 79 34 24 1,2 36 8 4163522 TDS401A07100 WP20PD 7,100 0.2795 79 41 29 1,2 36 8 4163524 TDS401A07200 WP20PD 7,200 0.2835 79 41 29 1,2 36 8 4163525 TDS401A07300 WP20PD 7,300 0.2874 79 41 29 1,2 36 8 4163526 TDS401A07400 WP20PD 7,400 0.2913 79 41 29 1,3 36 8 4163527 TDS401A07500 WP20PD 7,500 0.2953 79 41 29 1,3 36 8 4163529 TDS401A07600 WP20PD 7,600 0.2992 79 41 29 1,3 36 8 4163530 TDS401A07700 WP20PD 7,700 0.3031 79 41 29 1,3 36 8 4163531 TDS401A07800 WP20PD 7,800 0.3071 79 41 29 1,3 36 8 4163532 TDS401A07900 WP20PD 7,900 0.3110 79 41 29 1,3 36 8 4163534 TDS401A08000 WP20PD 8,000 0.3150 79 41 29 1,4 36 8 4163535 TDS401A08100 WP20PD 8,100 0.3189 89 47 35 1,4 40 10 4163536 TDS401A08200 WP20PD 8,200 0.3228 89 47 35 1,4 40 10 4163537 TDS401A08300 WP20PD 8,300 0.3268 89 47 35 1,4 40 10 4163539 TDS401A08400 WP20PD 8,400 0.3307 89 47 35 1,4 40 10 4163541 TDS401A08500 WP20PD 8,500 0.3346 89 47 35 1,4 40 10 4163542 TDS401A08600 WP20PD 8,600 0.3386 89 47 35 1,5 40 10 (continued) 116 widia.com Holemaking
