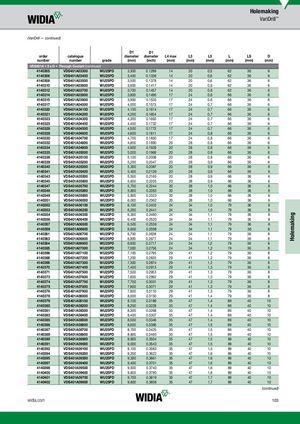

Holemaking VariDrill™ (VariDrill — continued) D1 D1 order catalogue diameter diameter L4 max L3 L5 L LS D number number grade (mm) (inch) (mm) (mm) (mm) (mm) (mm) (mm) VDS401A • 3 x D • Through Coolant (continued) 4140305 VDS401A03300 WU25PD 3,300 0.1299 14 20 0,5 62 36 6 4140306 VDS401A03400 WU25PD 3,400 0.1339 14 20 0,6 62 36 6 4140308 VDS401A03500 WU25PD 3,500 0.1378 14 20 0,6 62 36 6 4140310 VDS401A03600 WU25PD 3,600 0.1417 14 20 0,6 62 36 6 4140312 VDS401A03700 WU25PD 3,700 0.1457 14 20 0,6 62 36 6 4140314 VDS401A03800 WU25PD 3,800 0.1496 17 24 0,6 66 36 6 4140315 VDS401A03900 WU25PD 3,900 0.1535 17 24 0,6 66 36 6 4140317 VDS401A04000 WU25PD 4,000 0.1575 17 24 0,7 66 36 6 4140320 VDS401A04100 WU25PD 4,100 0.1614 17 24 0,7 66 36 6 4140321 VDS401A04200 WU25PD 4,200 0.1654 17 24 0,7 66 36 6 4140323 VDS401A04300 WU25PD 4,300 0.1693 17 24 0,7 66 36 6 4140325 VDS401A04400 WU25PD 4,400 0.1732 17 24 0,7 66 36 6 4140326 VDS401A04500 WU25PD 4,500 0.1772 17 24 0,7 66 36 6 4140328 VDS401A04600 WU25PD 4,600 0.1811 17 24 0,8 66 36 6 4140330 VDS401A04700 WU25PD 4,700 0.1850 17 24 0,8 66 36 6 4140332 VDS401A04800 WU25PD 4,800 0.1890 20 28 0,8 66 36 6 4140334 VDS401A04900 WU25PD 4,900 0.1929 20 28 0,8 66 36 6 4140335 VDS401A05000 WU25PD 5,000 0.1969 20 28 0,8 66 36 6 4140336 VDS401A05100 WU25PD 5,100 0.2008 20 28 0,8 66 36 6 4140339 VDS401A05200 WU25PD 5,200 0.2047 20 28 0,9 66 36 6 4140340 VDS401A05300 WU25PD 5,300 0.2087 20 28 0,9 66 36 6 4140341 VDS401A05400 WU25PD 5,400 0.2126 20 28 0,9 66 36 6 4140343 VDS401A05500 WU25PD 5,500 0.2165 20 28 0,9 66 36 6 4140345 VDS401A05600 WU25PD 5,600 0.2205 20 28 0,9 66 36 6 4140347 VDS401A05700 WU25PD 5,700 0.2244 20 28 1,0 66 36 6 4140348 VDS401A05800 WU25PD 5,800 0.2283 20 28 1,0 66 36 6 4140349 VDS401A05900 WU25PD 5,900 0.2323 20 28 1,0 66 36 6 4140351 VDS401A06000 WU25PD 6,000 0.2362 20 28 1,0 66 36 6 4140352 VDS401A06100 WU25PD 6,100 0.2402 24 34 1,0 79 36 8 4140353 VDS401A06200 WU25PD 6,200 0.2441 24 34 1,0 79 36 8 4140354 VDS401A06300 WU25PD 6,300 0.2480 24 34 1,1 79 36 8 4140356 VDS401A06400 WU25PD 6,400 0.2520 24 34 1,1 79 36 8 4140357 VDS401A06500 WU25PD 6,500 0.2559 24 34 1,1 79 36 8 4140359 VDS401A06600 WU25PD 6,600 0.2598 24 34 1,1 79 36 8 4140361 VDS401A06700 WU25PD 6,700 0.2638 24 34 1,1 79 36 8 4140363 VDS401A06800 WU25PD 6,800 0.2677 24 34 1,1 79 36 8 4140364 VDS401A06900 WU25PD 6,900 0.2717 24 34 1,2 79 36 8 4140365 VDS401A07000 WU25PD 7,000 0.2756 24 34 1,2 79 36 8 4140366 VDS401A07100 WU25PD 7,100 0.2795 29 41 1,2 79 36 8 4140368 VDS401A07200 WU25PD 7,200 0.2835 29 41 1,2 79 36 8 4140369 VDS401A07300 WU25PD 7,300 0.2874 29 41 1,2 79 36 8 4140370 VDS401A07400 WU25PD 7,400 0.2913 29 41 1,3 79 36 8 4140371 VDS401A07500 WU25PD 7,500 0.2953 29 41 1,3 79 36 8 4140373 VDS401A07600 WU25PD 7,600 0.2992 29 41 1,3 79 36 8 4140374 VDS401A07700 WU25PD 7,700 0.3031 29 41 1,3 79 36 8 4140375 VDS401A07800 WU25PD 7,800 0.3071 29 41 1,3 79 36 8 4140376 VDS401A07900 WU25PD 7,900 0.3110 29 41 1,3 79 36 8 4140378 VDS401A08000 WU25PD 8,000 0.3150 29 41 1,4 79 36 8 4140379 VDS401A08100 WU25PD 8,100 0.3189 35 47 1,4 89 40 10 4140380 VDS401A08200 WU25PD 8,200 0.3228 35 47 1,4 89 40 10 4140381 VDS401A08300 WU25PD 8,300 0.3268 35 47 1,4 89 40 10 4140383 VDS401A08400 WU25PD 8,400 0.3307 35 47 1,4 89 40 10 4140385 VDS401A08500 WU25PD 8,500 0.3346 35 47 1,4 89 40 10 4140386 VDS401A08600 WU25PD 8,600 0.3386 35 47 1,5 89 40 10 4140387 VDS401A08700 WU25PD 8,700 0.3425 35 47 1,5 89 40 10 4140389 VDS401A08800 WU25PD 8,800 0.3465 35 47 1,5 89 40 10 4140390 VDS401A08900 WU25PD 8,900 0.3504 35 47 1,5 89 40 10 4140391 VDS401A09000 WU25PD 9,000 0.3543 35 47 1,5 89 40 10 4140392 VDS401A09100 WU25PD 9,100 0.3583 35 47 1,5 89 40 10 4140394 VDS401A09200 WU25PD 9,200 0.3622 35 47 1,6 89 40 10 4140395 VDS401A09300 WU25PD 9,300 0.3661 35 47 1,6 89 40 10 4140397 VDS401A09400 WU25PD 9,400 0.3701 35 47 1,6 89 40 10 4140398 VDS401A09500 WU25PD 9,500 0.3740 35 47 1,6 89 40 10 4140400 VDS401A09600 WU25PD 9,600 0.3780 35 47 1,6 89 40 10 4140401 VDS401A09700 WU25PD 9,700 0.3819 35 47 1,7 89 40 10 4140402 VDS401A09800 WU25PD 9,800 0.3858 35 47 1,7 89 40 10 (continued) widia.com 103 Holemaking
