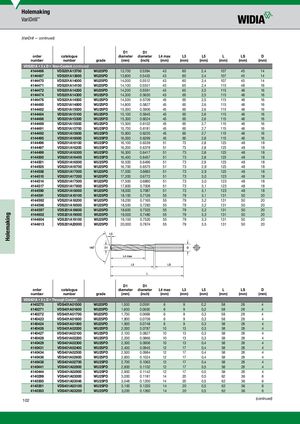

Каталог Widia all star 2019 - страница 104

Holemaking VariDrill™ (VariDrill — continued) D1 D1 order catalogue diameter diameter L4 max L3 L5 L LS D number number grade (mm) (inch) (mm) (mm) (mm) (mm) (mm) (mm) VDS201A • 3 x D • Non-Coolant (continued) 4144466 VDS201A13700 WU25PD 13,700 0.5394 43 60 2,4 107 45 14 4144467 VDS201A13800 WU25PD 13,800 0.5433 43 60 2,4 107 45 14 4144470 VDS201A14000 WU25PD 14,000 0.5512 43 60 2,4 107 45 14 4144471 VDS201A14100 WU25PD 14,100 0.5551 45 65 2,4 115 48 16 4144472 VDS201A14200 WU25PD 14,200 0.5591 45 65 2,5 115 48 16 4144474 VDS201A14300 WU25PD 14,300 0.5630 45 65 2,5 115 48 16 4144476 VDS201A14500 WU25PD 14,500 0.5709 45 65 2,5 115 48 16 4144480 VDS201A14800 WU25PD 14,800 0.5827 45 65 2,6 115 48 16 4144482 VDS201A15000 WU25PD 15,000 0.5906 45 65 2,6 115 48 16 4144484 VDS201A15100 WU25PD 15,100 0.5945 45 65 2,6 115 48 16 4144486 VDS201A15300 WU25PD 15,300 0.6024 45 65 2,6 115 48 16 4144489 VDS201A15500 WU25PD 15,500 0.6102 45 65 2,7 115 48 16 4144491 VDS201A15700 WU25PD 15,700 0.6181 45 65 2,7 115 48 16 4144492 VDS201A15800 WU25PD 15,800 0.6220 45 65 2,7 115 48 16 4144495 VDS201A16000 WU25PD 16,000 0.6299 45 65 2,8 115 48 16 4144496 VDS201A16100 WU25PD 16,100 0.6339 51 73 2,8 123 48 18 4144497 VDS201A16200 WU25PD 16,200 0.6378 51 73 2,8 123 48 18 4144499 VDS201A16300 WU25PD 16,300 0.6417 51 73 2,8 123 48 18 4144500 VDS201A16400 WU25PD 16,400 0.6457 51 73 2,8 123 48 18 4144501 VDS201A16500 WU25PD 16,500 0.6496 51 73 2,9 123 48 18 4144505 VDS201A16700 WU25PD 16,700 0.6575 51 73 2,9 123 48 18 4144508 VDS201A17000 WU25PD 17,000 0.6693 51 73 2,9 123 48 18 4144510 VDS201A17200 WU25PD 17,200 0.6772 51 73 3,0 123 48 18 4144514 VDS201A17500 WU25PD 17,500 0.6890 51 73 3,0 123 48 18 4144517 VDS201A17800 WU25PD 17,800 0.7008 51 73 3,1 123 48 18 4144590 VDS201A18000 WU25PD 18,000 0.7087 51 73 3,1 123 48 18 4144591 VDS201A18100 WU25PD 18,100 0.7126 55 79 3,1 131 50 20 4144592 VDS201A18200 WU25PD 18,200 0.7165 55 79 3,2 131 50 20 4144596 VDS201A18500 WU25PD 18,500 0.7283 55 79 3,2 131 50 20 4144597 VDS201A18600 WU25PD 18,600 0.7323 55 79 3,2 131 50 20 4144602 VDS201A19000 WU25PD 19,000 0.7480 55 79 3,3 131 50 20 4144604 VDS201A19100 WU25PD 19,100 0.7520 55 79 3,3 131 50 20 4144613 VDS201A20000 WU25PD 20,000 0.7874 55 79 3,5 131 50 20 D1 D1 order catalogue diameter diameter L4 max L3 L5 L LS D number number grade (mm) (inch) (mm) (mm) (mm) (mm) (mm) (mm) VDS401A • 3 x D • Through Coolant 4140270 VDS401A01500 WU25PD 1,500 0.0591 6 9 0,2 58 28 4 4140271 VDS401A01600 WU25PD 1,600 0.0630 6 9 0,2 58 28 4 4140272 VDS401A01700 WU25PD 1,700 0.0669 6 9 0,3 58 28 4 4140423 VDS401A01800 WU25PD 1,800 0.0709 6 9 0,3 58 28 4 4140424 VDS401A01900 WU25PD 1,900 0.0748 6 9 0,3 58 28 4 4140426 VDS401A02000 WU25PD 2,000 0.0787 10 13 0,3 58 28 4 4140427 VDS401A02100 WU25PD 2,100 0.0827 10 13 0,3 58 28 4 4140428 VDS401A02200 WU25PD 2,200 0.0866 10 13 0,3 58 28 4 4140429 VDS401A02300 WU25PD 2,300 0.0906 10 13 0,4 58 28 4 4140431 VDS401A02400 WU25PD 2,400 0.0945 12 17 0,4 58 28 4 4140434 VDS401A02500 WU25PD 2,500 0.0984 12 17 0,4 58 28 4 4140436 VDS401A02600 WU25PD 2,600 0.1024 12 17 0,4 58 28 4 4140438 VDS401A02700 WU25PD 2,700 0.1063 12 17 0,4 58 28 4 4140441 VDS401A02800 WU25PD 2,800 0.1102 12 17 0,5 58 28 4 4140444 VDS401A02900 WU25PD 2,900 0.1142 12 17 0,5 58 28 4 4140299 VDS401A03000 WU25PD 3,000 0.1181 14 20 0,5 62 36 6 4140300 VDS401A03048 WU25PD 3,048 0.1200 14 20 0,5 62 36 6 4140301 VDS401A03100 WU25PD 3,100 0.1220 14 20 0,5 62 36 6 4140303 VDS401A03200 WU25PD 3,200 0.1260 14 20 0,5 62 36 6 102 (continued) Holemaking
