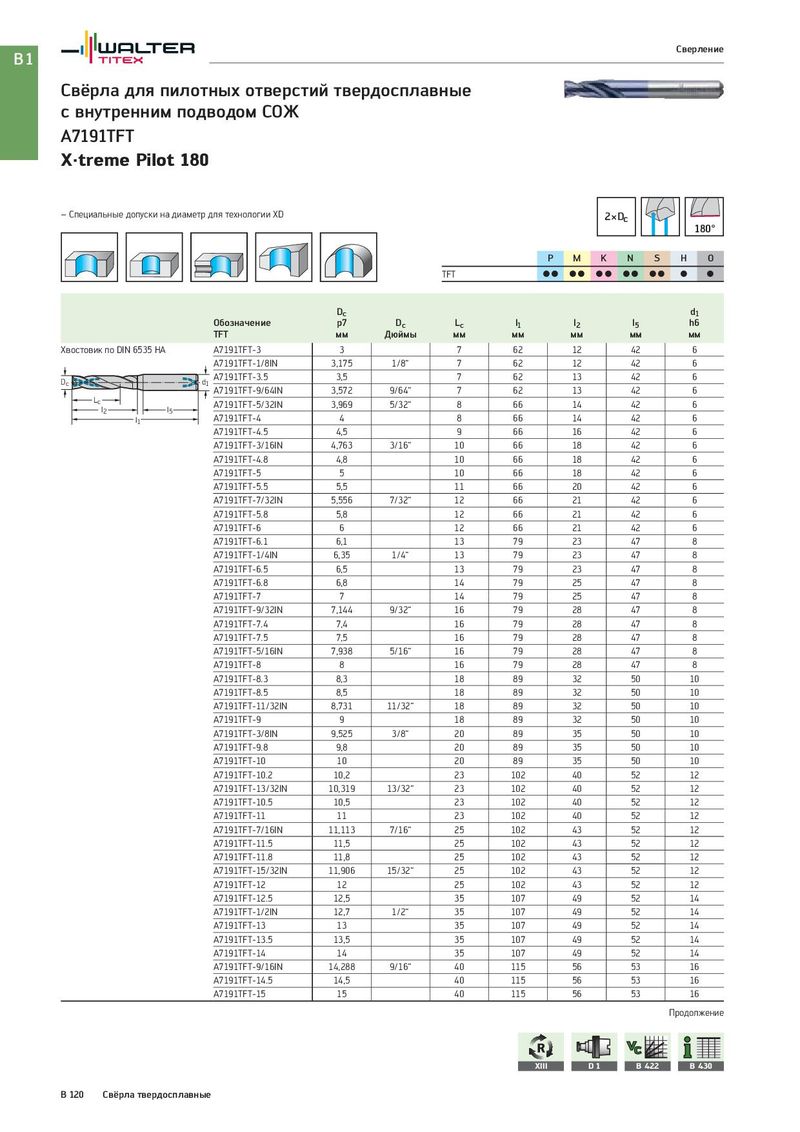

Общий каталог Walter 2017 - страница 634
Навигация
Каталог Walter обработка алюминия 2020
Каталог Walter новинки 2021.1
Каталог Walter новая продукция 2018
Каталог Walter новинки 2021.2
Брошюра Walter новинки 2022
с внутренним подводом СОЖ
A7191TFT
X·treme Pilot 180
| – Специальные допуски на диаметр для технологии XD | 2×Dc | 180° | |||||
| P M | K N | S H O | |||||
| TFT | C C C C C | C C C C | C C C | ||||
| Dc | d1 | ||||||
| Обозначение | p7 | Dc | Lc | l1 | l2 | l5 | h6 |
| TFT | мм | Дюймы | мм | мм | мм | мм | мм |
| Хвостовик по DIN 6535 HA A7191TFT-3 | 3 | 7 | 62 | 12 | 42 | 6 | |
| A7191TFT-1/8IN | 3,175 | 1/8“ | 7 | 62 | 12 | 42 | 6 |
| d D A7191TFT-3.5 | 3,5 | 7 | 62 | 13 | 42 | 6 | |
| 1 c A7191TFT-9/64IN | 3572 | 9/64“ | 7 | 62 | 13 | 42 | 6 |
| Lc l l A7191TFT-5/32IN | , 3,969 | 5/32“ | 8 | 66 | 14 | 42 | 6 |
| 5 l1 2 A7191TFT-4 | 4 | 8 | 66 | 14 | 42 | 6 | |
| A7191TFT-4.5 | 4,5 | 9 | 66 | 16 | 42 | 6 | |
| A7191TFT-3/16IN | 4,763 | 3/16“ | 10 | 66 | 18 | 42 | 6 |
| A7191TFT-4.8 | 4,8 | 10 | 66 | 18 | 42 | 6 | |
| A7191TFT-5 | 5 | 10 | 66 | 18 | 42 | 6 | |
| A7191TFT-5.5 | 5,5 | 11 | 66 | 20 | 42 | 6 | |
| A7191TFT-7/32IN | 5,556 | 7/32“ | 12 | 66 | 21 | 42 | 6 |
| A7191TFT-5.8 | 5,8 | 12 | 66 | 21 | 42 | 6 | |
| A7191TFT-6 | 6 | 12 | 66 | 21 | 42 | 6 | |
| A7191TFT-6.1 | 6,1 | 13 | 79 | 23 | 47 | 8 | |
| A7191TFT-1/4IN | 6,35 | 1/4“ | 13 | 79 | 23 | 47 | 8 |
| A7191TFT-6.5 | 6,5 | 13 | 79 | 23 | 47 | 8 | |
| A7191TFT-6.8 | 6,8 | 14 | 79 | 25 | 47 | 8 | |
| A7191TFT-7 | 7 | 14 | 79 | 25 | 47 | 8 | |
| A7191TFT-9/32IN | 7,144 | 9/32“ | 16 | 79 | 28 | 47 | 8 |
| A7191TFT-7.4 | 7,4 | 16 | 79 | 28 | 47 | 8 | |
| A7191TFT-7.5 | 7,5 | 16 | 79 | 28 | 47 | 8 | |
| A7191TFT-5/16IN | 7,938 | 5/16“ | 16 | 79 | 28 | 47 | 8 |
| A7191TFT-8 | 8 | 16 | 79 | 28 | 47 | 8 | |
| A7191TFT-8.3 | 8,3 | 18 | 89 | 32 | 50 | 10 | |
| A7191TFT-8.5 | 8,5 | 18 | 89 | 32 | 50 | 10 | |
| A7191TFT-11/32IN | 8,731 | 11/32“ | 18 | 89 | 32 | 50 | 10 |
| A7191TFT-9 | 9 | 18 | 89 | 32 | 50 | 10 | |
| A7191TFT-3/8IN | 9,525 | 3/8“ | 20 | 89 | 35 | 50 | 10 |
| A7191TFT-9.8 | 9,8 | 20 | 89 | 35 | 50 | 10 | |
| A7191TFT-10 | 10 | 20 | 89 | 35 | 50 | 10 | |
| A7191TFT-10.2 | 10,2 | 23 | 102 | 40 | 52 | 12 | |
| A7191TFT-13/32IN | 10,319 | 13/32“ | 23 | 102 | 40 | 52 | 12 |
| A7191TFT-10.5 | 10,5 | 23 | 102 | 40 | 52 | 12 | |
| A7191TFT-11 | 11 | 23 | 102 | 40 | 52 | 12 | |
| A7191TFT-7/16IN | 11,113 | 7/16“ | 25 | 102 | 43 | 52 | 12 |
| A7191TFT-11.5 | 11,5 | 25 | 102 | 43 | 52 | 12 | |
| A7191TFT-11.8 | 11,8 | 25 | 102 | 43 | 52 | 12 | |
| A7191TFT-15/32IN | 11,906 | 15/32“ | 25 | 102 | 43 | 52 | 12 |
| A7191TFT-12 | 12 | 25 | 102 | 43 | 52 | 12 | |
| A7191TFT-12.5 | 12,5 | 35 | 107 | 49 | 52 | 14 | |
| A7191TFT-1/2IN | 12,7 | 1/2“ | 35 | 107 | 49 | 52 | 14 |
| A7191TFT-13 | 13 | 35 | 107 | 49 | 52 | 14 | |
| A7191TFT-13.5 | 13,5 | 35 | 107 | 49 | 52 | 14 | |
| A7191TFT-14 | 14 | 35 | 107 | 49 | 52 | 14 | |
| A7191TFT-9/16IN | 14,288 | 9/16“ | 40 | 115 | 56 | 53 | 16 |
| A7191TFT-14.5 | 14,5 | 40 | 115 | 56 | 53 | 16 | |
| A7191TFT-15 | 15 | 40 | 115 | 56 | 53 | 16 | |
| Продолжение |
