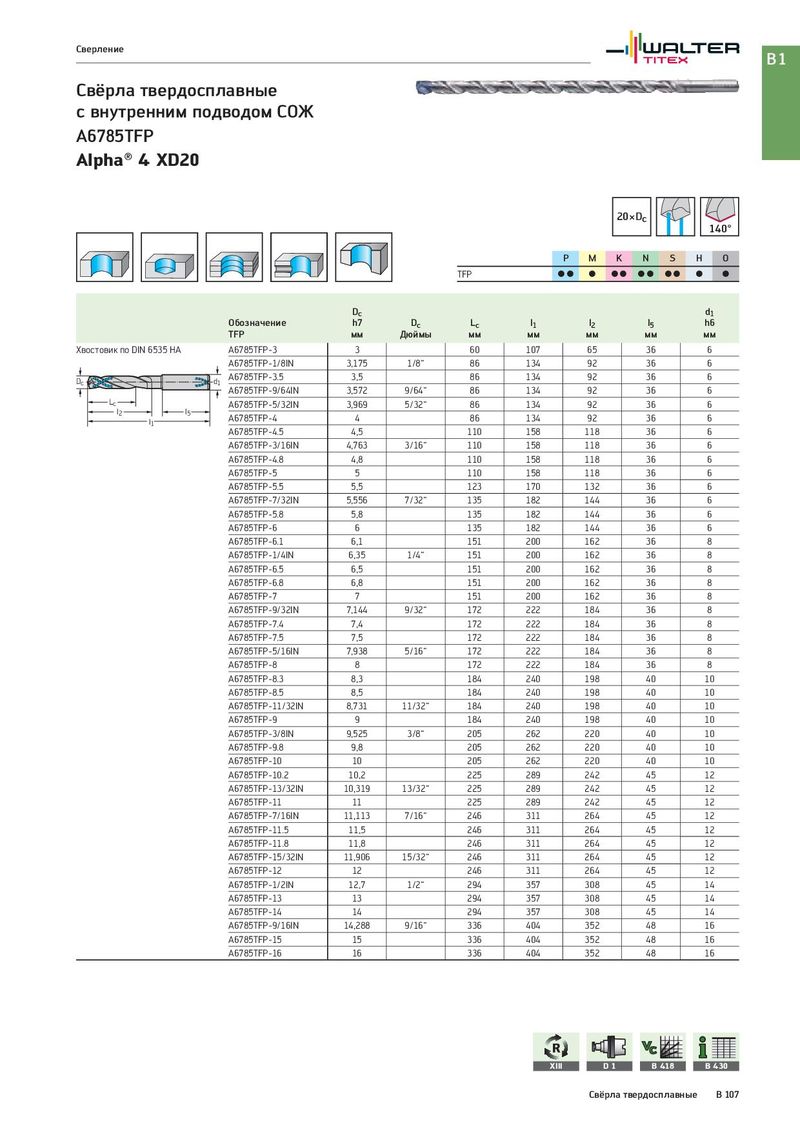

Общий каталог Walter 2017 - страница 621
Навигация
Каталог Walter обработка алюминия 2020
Каталог Walter новинки 2021.1
Каталог Walter новая продукция 2018
Каталог Walter новинки 2021.2
Брошюра Walter новинки 2022
с внутренним подводом СОЖ
A6785TFP
Alpha® 4 XD20
| 20×Dc | 140° | |||||
| P M K | N S | H O | ||||
| TFP | C C C C | C C C C C | C C | |||
| Dc | d1 | |||||
| Обозначение | h7 | Dc | Lc | l1 l2 | l5 | h6 |
| TFP | мм | Дюймы | мм | мм мм | мм | мм |
| Хвостовик по DIN 6535 HA A6785TFP-3 | 3 | 60 | 107 65 | 36 | 6 | |
| A6785TFP-1/8IN | 3,175 | 1/8“ | 86 | 134 92 | 36 | 6 |
| d1 Dc A6785TFP-3.5 | 3,5 | 86 | 134 92 | 36 | 6 | |
| A6785TFP-9/64IN | 3,572 | 9/64“ | 86 | 134 92 | 36 | 6 |
| Lc A6785TFP-5/32IN | 3,969 | 5/32“ | 86 | 134 92 | 36 | 6 |
| l5 l1 l2 A6785TFP-4 | 4 | 86 | 134 92 | 36 | 6 | |
| A6785TFP-4.5 | 4,5 | 110 | 158 118 | 36 | 6 | |
| A6785TFP-3/16IN | 4,763 | 3/16“ | 110 | 158 118 | 36 | 6 |
| A6785TFP-4.8 | 4,8 | 110 | 158 118 | 36 | 6 | |
| A6785TFP-5 | 5 | 110 | 158 118 | 36 | 6 | |
| A6785TFP-5.5 | 5,5 | 123 | 170 132 | 36 | 6 | |
| A6785TFP-7/32IN | 5,556 | 7/32“ | 135 | 182 144 | 36 | 6 |
| A6785TFP-5.8 | 5,8 | 135 | 182 144 | 36 | 6 | |
| A6785TFP-6 | 6 | 135 | 182 144 | 36 | 6 | |
| A6785TFP-6.1 | 6,1 | 151 | 200 162 | 36 | 8 | |
| A6785TFP-1/4IN | 6,35 | 1/4“ | 151 | 200 162 | 36 | 8 |
| A6785TFP-6.5 | 6,5 | 151 | 200 162 | 36 | 8 | |
| A6785TFP-6.8 | 6,8 | 151 | 200 162 | 36 | 8 | |
| A6785TFP-7 | 7 | 151 | 200 162 | 36 | 8 | |
| A6785TFP-9/32IN | 7,144 | 9/32“ | 172 | 222 184 | 36 | 8 |
| A6785TFP-7.4 | 7,4 | 172 | 222 184 | 36 | 8 | |
| A6785TFP-7.5 | 7,5 | 172 | 222 184 | 36 | 8 | |
| A6785TFP-5/16IN | 7,938 | 5/16“ | 172 | 222 184 | 36 | 8 |
| A6785TFP-8 | 8 | 172 | 222 184 | 36 | 8 | |
| A6785TFP-8.3 | 83 | 184 | 240 198 | 40 | 10 | |
| A6785TFP-8.5 | , 8,5 | 184 | 240 198 | 40 | 10 | |
| A6785TFP-11/32IN | 8,731 | 11/32“ | 184 | 240 198 | 40 | 10 |
| A6785TFP-9 | 9 | 184 | 240 198 | 40 | 10 | |
| A6785TFP-3/8IN | 9,525 | 3/8“ | 205 | 262 220 | 40 | 10 |
| A6785TFP-9.8 | 9,8 | 205 | 262 220 | 40 | 10 | |
| A6785TFP-10 | 10 | 205 | 262 220 | 40 | 10 | |
| A6785TFP-10.2 | 10,2 | 225 | 289 242 | 45 | 12 | |
| A6785TFP-13/32IN | 10,319 | 13/32“ | 225 | 289 242 | 45 | 12 |
| A6785TFP-11 | 11 | 225 | 289 242 | 45 | 12 | |
| A6785TFP-7/16IN | 11,113 | 7/16“ | 246 | 311 264 | 45 | 12 |
| A6785TFP-11.5 | 11,5 | 246 | 311 264 | 45 | 12 | |
| A6785TFP-11.8 | 11,8 | 246 | 311 264 | 45 | 12 | |
| A6785TFP-15/32IN | 11,906 | 15/32“ | 246 | 311 264 | 45 | 12 |
| A6785TFP-12 | 12 | 246 | 311 264 | 45 | 12 | |
| A6785TFP-1/2IN | 12,7 | 1/2“ | 294 | 357 308 | 45 | 14 |
| A6785TFP-13 | 13 | 294 | 357 308 | 45 | 14 | |
| A6785TFP-14 | 14 | 294 | 357 308 | 45 | 14 | |
| A6785TFP-9/16IN | 14,288 | 9/16“ | 336 | 404 352 | 48 | 16 |
| A6785TFP-15 | 15 | 336 | 404 352 | 48 | 16 | |
| A6785TFP-16 | 16 | 336 | 404 352 | 48 | 16 | |
| D 1 XIII | B 418 | B 430 |
