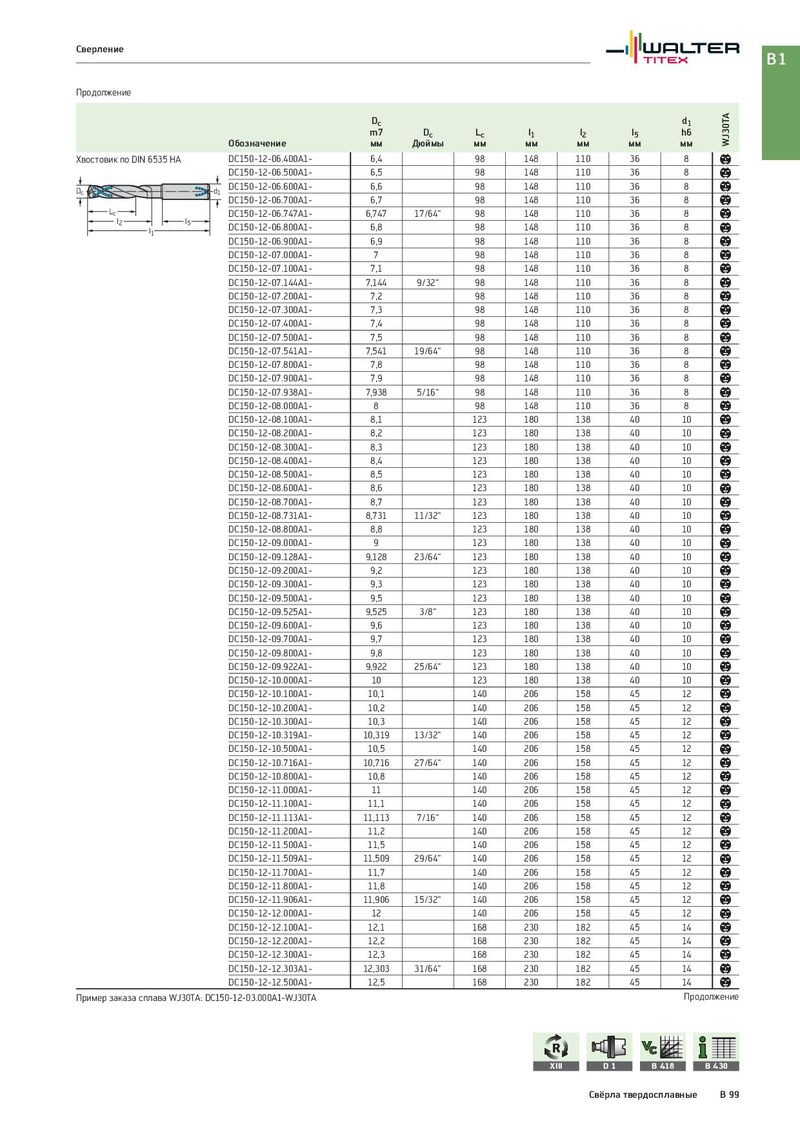

Общий каталог Walter 2017 - страница 613

Сверление B1 Продолжение Dc d1 WJ30TA m7 Dc Lc l1 l2 l5 h6 Обозначение мм Дюймы мм мм мм мм мм Хвостовик по DIN 6535 HA DC150-12-06.400A1- 6,4 98 148 110 36 8 b DC150-12-06.500A1- 6,5 98 148 110 36 8 b Dc d1 DC150-12-06.600A1- 6,6 98 148 110 36 8 b DC150-12-06.700A1- 6,7 98 148 110 36 8 b Lc DC150-12-06.747A1- 6,747 17/64“ 98 148 110 36 8 b l2 l5 DC150-12-06.800A1- 6,8 98 148 110 36 8 b l1 DC150-12-06.900A1- 6,9 98 148 110 36 8 b DC150-12-07.000A1- 7 98 148 110 36 8 b DC150-12-07.100A1- 7,1 98 148 110 36 8 b DC150-12-07.144A1- 7,144 9/32“ 98 148 110 36 8 b DC150-12-07.200A1- 7,2 98 148 110 36 8 b DC150-12-07.300A1- 7,3 98 148 110 36 8 b DC150-12-07.400A1- 7,4 98 148 110 36 8 b DC150-12-07.500A1- 7,5 98 148 110 36 8 b DC150-12-07.541A1- 7,541 19/64“ 98 148 110 36 8 b DC150-12-07.800A1- 7,8 98 148 110 36 8 b DC150-12-07.900A1- 7,9 98 148 110 36 8 b DC150-12-07.938A1- 7,938 5/16“ 98 148 110 36 8 b DC150-12-08.000A1- 8 98 148 110 36 8 b DC150-12-08.100A1- 8,1 123 180 138 40 10 b DC150-12-08.200A1- 8,2 123 180 138 40 10 b DC150-12-08.300A1- 8,3 123 180 138 40 10 b DC150-12-08.400A1- 8,4 123 180 138 40 10 b DC150-12-08.500A1- 8,5 123 180 138 40 10 b DC150-12-08.600A1- 8,6 123 180 138 40 10 b DC150-12-08.700A1- 8,7 123 180 138 40 10 b DC150-12-08.731A1- 8,731 11/32“ 123 180 138 40 10 b DC150-12-08.800A1- 8,8 123 180 138 40 10 b DC150-12-09.000A1- 9 123 180 138 40 10 b DC150-12-09.128A1- 9,128 23/64“ 123 180 138 40 10 b DC150-12-09.200A1- 9,2 123 180 138 40 10 b DC150-12-09.300A1- 9,3 123 180 138 40 10 b DC150-12-09.500A1- 9,5 123 180 138 40 10 b DC150-12-09.525A1- 9,525 3/8“ 123 180 138 40 10 b DC150-12-09.600A1- 9,6 123 180 138 40 10 b DC150-12-09.700A1- 9,7 123 180 138 40 10 b DC150-12-09.800A1- 9,8 123 180 138 40 10 b DC150-12-09.922A1- 9,922 25/64“ 123 180 138 40 10 b DC150-12-10.000A1- 10 123 180 138 40 10 b DC150-12-10.100A1- 10,1 140 206 158 45 12 b DC150-12-10.200A1- 10,2 140 206 158 45 12 b DC150-12-10.300A1- 10,3 140 206 158 45 12 b DC150-12-10.319A1- 10,319 13/32“ 140 206 158 45 12 b DC150-12-10.500A1- 10,5 140 206 158 45 12 b DC150-12-10.716A1- 10,716 27/64“ 140 206 158 45 12 b DC150-12-10.800A1- 10,8 140 206 158 45 12 b DC150-12-11.000A1- 11 140 206 158 45 12 b DC150-12-11.100A1- 11,1 140 206 158 45 12 b DC150-12-11.113A1- 11,113 7/16“ 140 206 158 45 12 b DC150-12-11.200A1- 11,2 140 206 158 45 12 b DC150-12-11.500A1- 11,5 140 206 158 45 12 b DC150-12-11.509A1- 11,509 29/64“ 140 206 158 45 12 b DC150-12-11.700A1- 11,7 140 206 158 45 12 b DC150-12-11.800A1- 11,8 140 206 158 45 12 b DC150-12-11.906A1- 11,906 15/32“ 140 206 158 45 12 b DC150-12-12.000A1- 12 140 206 158 45 12 b DC150-12-12.100A1- 12,1 168 230 182 45 14 b DC150-12-12.200A1- 12,2 168 230 182 45 14 b DC150-12-12.300A1- 12,3 168 230 182 45 14 b DC150-12-12.303A1- 12,303 31/64“ 168 230 182 45 14 b DC150-12-12.500A1- 12,5 168 230 182 45 14 b Пример заказа сплава WJ30TA: DC150-12-03.000A1-WJ30TA Продолжение XIII D1 B 418 B 430 Свёрла твердосплавные B 99
