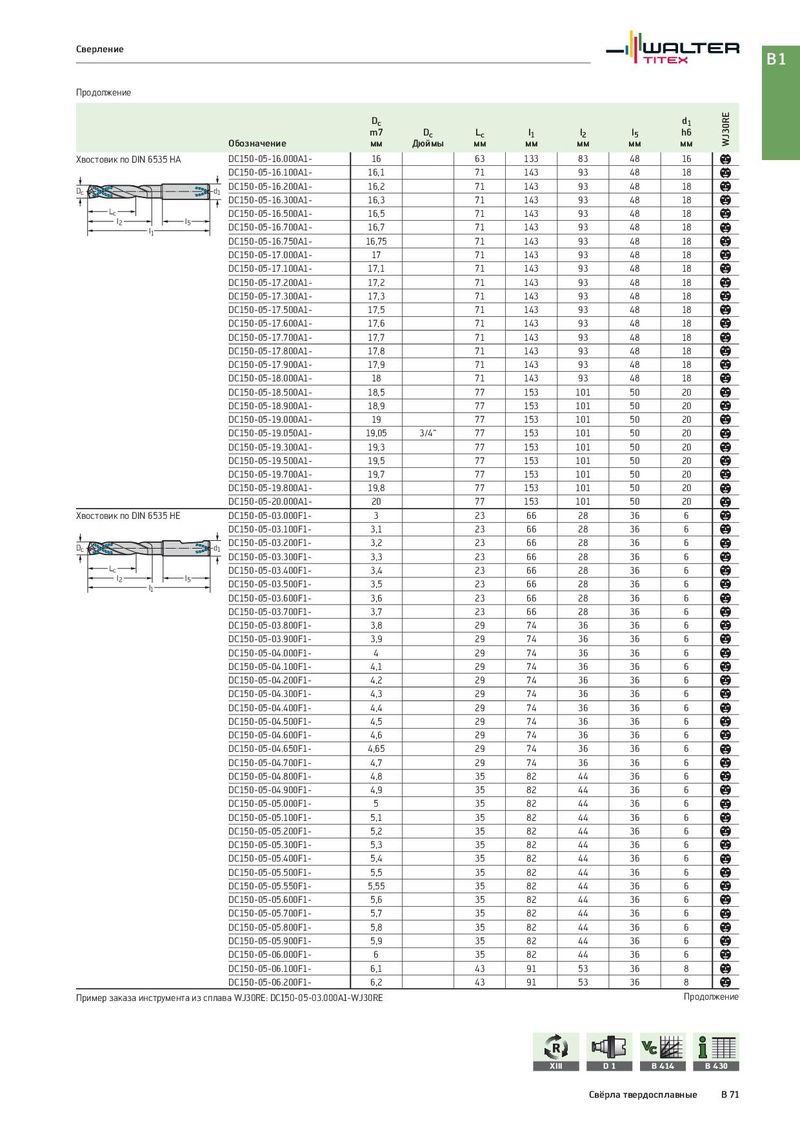

Общий каталог Walter 2017 - страница 585
Навигация
Каталог Walter обработка алюминия 2020
Каталог Walter новинки 2021.1
Каталог Walter новая продукция 2018
Каталог Walter новинки 2021.2
Брошюра Walter новинки 2022
D d c 1
| m7 | Dc | Lc | l1 | l2 | l5 | h6 | |
| Обозначение | мм | Дюймы | мм | мм | мм | мм | мм |
b
Хвостовик по DIN 6535 HA DC150-05-16.000A1- 16 63 133 83 48 16
b
| DC150-05-16.100A1- | 16,1 | 71 | 143 | 93 | 48 | 18 | |
| DC150-05-16.200A1- | 16,2 | 71 | 143 | 93 | 48 | 18 | b |
Dc d1 b
DC150-05-16.300A1- 16,3 71 143 93 48 18
L b
c DC150-05-16.500A1- 16,5 71 143 93 48 18
l2 l5 b
DC150-05-16.700A1- 16,7 71 143 93 48 18
l1 b
DC150-05-16.750A1- 16,75 71 143 93 48 18
b
DC150-05-17.000A1- 17 71 143 93 48 18
b
| DC150-05-17.100A1- | 17,1 | 71 | 143 | 93 | 48 | 18 | |
| DC150-05-17.200A1- | 17,2 | 71 | 143 | 93 | 48 | 18 | b |
b
DC150-05-17.300A1- 17,3 71 143 93 48 18
b
| DC150-05-17.500A1- | 17,5 | 71 | 143 | 93 | 48 | 18 | |
| DC150-05-17.600A1- | 17,6 | 71 | 143 | 93 | 48 | 18 | b |
| DC150-05-17.700A1- | 17,7 | 71 | 143 | 93 | 48 | 18 | b |
b
| DC150-05-17.800A1- | 17,8 | 71 | 143 | 93 | 48 | 18 | |
| DC150-05-17.900A1- | 17,9 | 71 | 143 | 93 | 48 | 18 | b |
| DC150-05-18.000A1- | 18 | 71 | 143 | 93 | 48 | 18 | b |
b
| DC150-05-18.500A1- | 18,5 | 77 | 153 | 101 | 50 | 20 | |
| DC150-05-18.900A1- | 18,9 | 77 | 153 | 101 | 50 | 20 | b |
| DC150-05-19.000A1- | 19 | 77 | 153 | 101 | 50 | 20 | b |
b
DC150-05-19.050A1- 19,05 3/4“ 77 153 101 50 20
b
| DC150-05-19.300A1- | 19,3 | 77 | 153 | 101 | 50 | 20 | |
| DC150-05-19.500A1- | 19,5 | 77 | 153 | 101 | 50 | 20 | b |
b
DC150-05-19.700A1- 19,7 77 153 101 50 20
b
DC150-05-19.800A1- 19,8 77 153 101 50 20
b
DC150-05-20.000A1- 20 77 153 101 50 20
b
Хвостовик по DIN 6535 HE DC150-05-03.000F1- 3 23 66 28 36 6
b
| DC150-05-03.100F1- | 3,1 | 23 | 66 | 28 | 36 | 6 | |
| DC150-05-03.200F1- | 3,2 | 23 | 66 | 28 | 36 | 6 | b |
Dc d1 b
DC150-05-03.300F1- 3,3 23 66 28 36 6
L b
c DC150-05-03.400F1- 3,4 23 66 28 36 6
l2 l5 b
DC150-05-03.500F1- 3,5 23 66 28 36 6
l1 b
DC150-05-03.600F1- 3,6 23 66 28 36 6
b
DC150-05-03.700F1- 3,7 23 66 28 36 6
b
| DC150-05-03.800F1- | 3,8 | 29 | 74 | 36 | 36 | 6 | |
| DC150-05-03.900F1- | 3,9 | 29 | 74 | 36 | 36 | 6 | b |
b
DC150-05-04.000F1- 4 29 74 36 36 6
b
| DC150-05-04.100F1- | 4,1 | 29 | 74 | 36 | 36 | 6 | |
| DC150-05-04.200F1- | 4,2 | 29 | 74 | 36 | 36 | 6 | b |
| DC150-05-04.300F1- | 4,3 | 29 | 74 | 36 | 36 | 6 | b |
b
| DC150-05-04.400F1- | 4,4 | 29 | 74 | 36 | 36 | 6 | |
| DC150-05-04.500F1- | 4,5 | 29 | 74 | 36 | 36 | 6 | b |
| DC150-05-04.600F1- | 4,6 | 29 | 74 | 36 | 36 | 6 | b |
b
| DC150-05-04.650F1- | 4,65 | 29 | 74 | 36 | 36 | 6 | |
| DC150-05-04.700F1- | 4,7 | 29 | 74 | 36 | 36 | 6 | b |
| DC150-05-04.800F1- | 4,8 | 35 | 82 | 44 | 36 | 6 | b |
b
DC150-05-04.900F1- 4,9 35 82 44 36 6
b
| DC150-05-05.000F1- | 5 | 35 | 82 | 44 | 36 | 6 | |
| DC150-05-05.100F1- | 5,1 | 35 | 82 | 44 | 36 | 6 | b |
b
DC150-05-05.200F1- 5,2 35 82 44 36 6
b
| DC150-05-05.300F1- | 5,3 | 35 | 82 | 44 | 36 | 6 | |
| DC150-05-05.400F1- | 5,4 | 35 | 82 | 44 | 36 | 6 | b |
| DC150-05-05.500F1- | 5,5 | 35 | 82 | 44 | 36 | 6 | b |
b
| DC150-05-05.550F1- | 5,55 | 35 | 82 | 44 | 36 | 6 | |
| DC150-05-05.600F1- | 5,6 | 35 | 82 | 44 | 36 | 6 | b |
| DC150-05-05.700F1- | 5,7 | 35 | 82 | 44 | 36 | 6 | b |
b
DC150-05-05.800F1- 5,8 35 82 44 36 6
b
| DC150-05-05.900F1- | 5,9 | 35 | 82 | 44 | 36 | 6 | |
| DC150-05-06.000F1- | 6 | 35 | 82 | 44 | 36 | 6 | b |
b
DC150-05-06.100F1- 6,1 43 91 53 36 8
b
DC150-05-06.200F1- 6,2 43 91 53 36 8
Пример заказа инструмента из сплава WJ30RE: DC150-05-03.000A1-WJ30RE Продолжение
