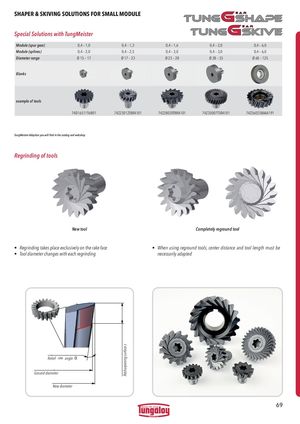

SHAPER & SKIVING SOLUTIONS FOR SMALL MODULE
Special Solutions with TungMeister
| Module (spur gear) | 0,4 – 1,0 | 0,4 – 1,3 | 0,4 – 1,6 | 0,4 – 2,0 | 0,4 – 6,0 |
| Module (splines) | 0,4 – 2,0 | 0,4 – 2,5 | 0,4 – 3,0 | 0,4 – 3,0 | 0,4 – 6,0 |
| Diameter range | Ø 15 – 17 | Ø 17 – 23 | Ø 23 – 28 | Ø 28 – 35 | Ø 60 – 125 |
| Blanks | |||||
| example of tools | |||||
| 74D16511T6R01 | 74Z23012T8RA101 | 74Z28020TRRA101 | 74Z35007TSRA101 | 74Z56025BAAA191 |
TungMeister-Adaption you will fi nd in the catalog and webshop
Regrinding of tools
New tool Completely reground tool
- Regrinding takes place exclusively on the rake face
- When using reground tools, center distance and tool length must be
- Tool diameter changes with each regrinding necessarily adapted
Kopffreiwinkel Relief ranke anglerake Durchmesser geschliffen Ground diameter Durchmesser neu New diameter
