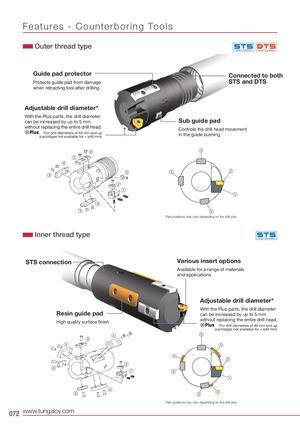

Fe atu re s - Counterboring To o ls

Outer thread type

Guide pad protector Connected to both

Protects guide pad from damage STS and DTS

when retracting tool after drilling

Adjustable drill diameter*

With the Plus parts, the drill diameter

can be increased by up to 5 mm

without replacing the entire drill head. *For drill diameters of 40 mm and up (cartridges not available for < ø40 mm)

4 3 4 3

4 3

Inner thread type

Sub guide pad

Controls the drill head movement

in the guide bushing

3

5 3 2

2 1 1

3 Part positions may vary depending on the drill size.

STS connection Various insert options

Available for a range of materials

and applications

Resin guide pad

High quality surface finish

4 3 4 4 2 3 1 3

Adjustable drill diameter*

With the Plus parts, the drill diameter

can be increased by up to 5 mm

without replacing the entire drill head. *For drill diameters of 40 mm and up (cartridges not available for < ø40 mm) 3 4

2

1

Part positions may vary depending on the drill size.
