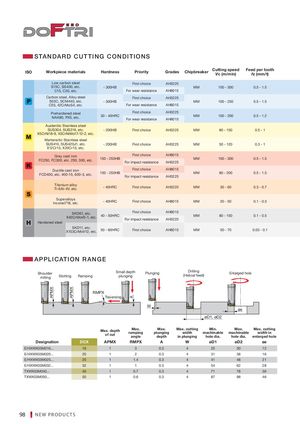

STANDARD CUTTING CONDITIONS

ISO	Workpiece materials	Hardness	Priority	Grades	Chipbreaker	Cutting speed Vc (m/min)	Feed per tooth fz (mm/t)
	Low carbon steel S15C, SS400, etc. C15, C20, etc.	- 300HB	First choice For wear resistance	AH3225 AH8015	MM	100 - 300	0.5 - 1.5
	Carbon steel, Alloy steel S55C, SCM440, etc. C55, 42CrMoS4, etc.	- 300HB	First choice For wear resistance	AH3225 AH8015	MM	100 - 250	0.5 - 1.5
	Prehardened steel NAK80, PX5, etc.	30 - 40HRC	First choice For wear resistance	AH3225 AH8015	MM	100 - 200	0.5 - 1.2
	Austenitic Stainless steel SUS304, SUS316, etc. X5CrNi18-9, X5CrNiMo17-12-2, etc.	- 200HB	First choice	AH3225	MM	80 - 150	0.5 - 1
	Martensitic Stainless steel SUS410, SUS420J1, etc. X12Cr13, X20Cr13, etc.	- 200HB	First choice	AH3225	MM	50 - 120	0.3 - 1
	Grey cast iron FC250, FC300, etc. 250, 300, etc.	150 - 250HB	First choice For impact resistance	AH8015 AH3225	MM	100 - 300	0.5 - 1.5
	Ductile cast iron FCD400, etc. 400-15, 600-3, etc.	150 - 250HB	First choice For impact resistance	AH8015 AH3225	MM	80 - 200	0.5 - 1.5
	Titanium alloy Ti-6AI-4V, etc.	- 40HRC	First choice	AH3225	MM	30 - 60	0.3 - 0.7
	Superalloys Inconel718, etc.	- 40HRC	First choice	AH8015	MM	20 - 50	0.1 - 0.3
	Hardened steel SKD61, etc. X40CrMoV5-1, etc.	40 - 50HRC	First choice For impact resistance	AH8015 AH3225	MM	80 - 150	0.1 - 0.5
	SKD11, etc. X153CrMoV12, etc.	50 - 60HRC	First choice	AH8015	MM	50 - 70	0.03 - 0.1

APPLICATION RANGE

Small depth Drilling

Shoulder Plunging Enlarged hole

Slotting Ramping plunging (Helical feed)

milling

RMPX

Traversing

W

ae

øD1, øD2

			Max.	Max.	Max. cutting	Min.	Max.	Max. cutting
		Max. depth
			ramping	plunging	width	machinable	machinable	width in
		of cut
			angle	depth	in plunging	hole dia.	hole dia.	enlarged hole
	Designation DCX	APMX	RMPX	A	W	øD1	øD2	ae
E/HXWX03M016...	16	1	3	0.3	4	25	30	12
E/HXWX03M020...	20	1	2	0.3	4	31	38	16
E/HXWX03M025...	25	1	1.4	0.3	4	41	48	21
E/HXWX03M032...	32	1	1	0.3	4	54	62	28
TXWX03M040...	40	1	0.7	0.3	4	71	78	36
TXWX03M050...	50	1	0.6	0.3	4	87	98	46
