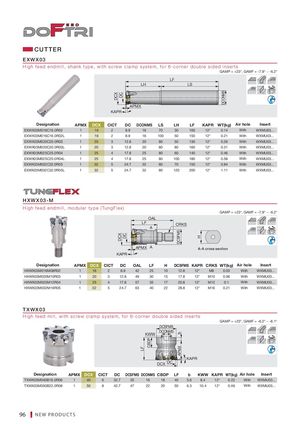

CUTTER
E X W X 0 3
High feed e n d m i l l , shank t y p e , with screw clamp s y s te m , for 6 - c o r n e r double sided inserts
| | | | | | | | | | GAMP = | +23°, GA | M | F = -7.9° ~ -6.2° |
| | | DCX KAP | DC R AP | LH MX | | LF | LS | | DCONMS | | | |
| Designation | APMX | DCX | CICT | DC | DCONMS | LS | LH | LF | KAPR | WT(kg) | Air hol | e | Insert |
| EXWX03M016C16.0R02 | 1 | 16 | 2 | 8.9 | 16 | 70 | 30 | 100 | 12° | 0.14 | With | | WXMU03... |
| EXWX03M016C16.0R02L | 1 | 16 | 2 | 8.9 | 16 | 100 | 50 | 150 | 12° | 0.21 | With | | WXMU03... |
| EXWX03M020C20.0R03 | 1 | 20 | 3 | 12.8 | 20 | 80 | 50 | 130 | 12° | 0.26 | With | | WXMU03... |
| EXWX03M020C20.0R03L | 1 | 20 | 3 | 12.8 | 20 | 80 | 80 | 160 | 12° | 0.31 | With | | WXMU03... |
| EXWX03M025C25.0R04 | 1 | 25 | 4 | 17.8 | 25 | 80 | 60 | 140 | 12° | 0.46 | With | | WXMU03... |
| EXWX03M025C25.0R04L | 1 | 25 | 4 | 17.8 | 25 | 80 | 100 | 180 | 12° | 0.58 | With | | WXMU03... |
| EXWX03M032C32.0R05 | 1 | 32 | 5 | 24.7 | 32 | 80 | 70 | 150 | 12° | 0.84 | With | | WXMU03... |
| EXWX03M032C32.0R05L | 1 | 32 | 5 | 24.7 | 32 | 80 | 120 | 200 | 12° | 1.11 | With | | WXMU03... |
H X W X 0 3 - M
High feed e n d m i l l , modular type ( Tu n g F l ex )
| | | | | | | | | | GAMP = | +23°, GAMF | = -7.9° ~ -6.2° |
| | | | DCX DC | LF | OAL A | DCSFMS CRKS | H | | | | |
| | | | KAPR | APMX | A | | A-A | cross se | ction | | |
| Designation | APMX | DCX | CICT | DC | OAL | LF H | DCSFMS | KAPR | CRKS | WT(kg) | Air hole | Insert |
| HXWX03M016M08R02 | 1 | 16 | 2 | 8.9 | 42 | 25 10 | 12.8 | 12° | M8 | 0.03 | With | WXMU03... |
| HXWX03M020M10R03 | 1 | 20 | 3 | 12.8 | 49 | 30 15 | 17.8 | 12° | M10 | 0.06 | With | WXMU03... |
| HXWX03M025M12R04 | 1 | 25 | 4 | 17.8 | 57 | 35 17 | 20.8 | 12° | M12 | 0.1 | With | WXMU03... |
| HXWX03M032M16R05 | 1 | 32 | 5 | 24.7 | 63 | 40 22 | 28.8 | 12° | M16 | 0.21 | With | WXMU03... |
T X W X 0 3
High feed m i l l , with screw clamp s y s te m , for 6 - c o r n e r double sided inserts
GAMP = +23°, GAMF = -6.2° ~ -6.1°
DCSFMS
DCONMS
KWW
KAPR
DCX DC
| Designation | APMX | | DCX | CICT | DC | DCSFMS DCONMS CBDP | | | | LF | b | KWW KAPR WT(kg) | | | Air hole | Insert |
| TXWX03M040B16.0R06 | | | 1 | 40 | 6 | 32.7 | | 35 | 16 | 18 | 40 | 5.6 | 8.4 | 12° | 0.22 | With | WXMU03... |
| TXWX03M050B22.0R08 | | | 1 | 50 | 8 | 42.7 | | 47 | 22 | 20 | 50 | 6.3 | 10.4 | 12° | 0.46 | With | WXMU03... |
