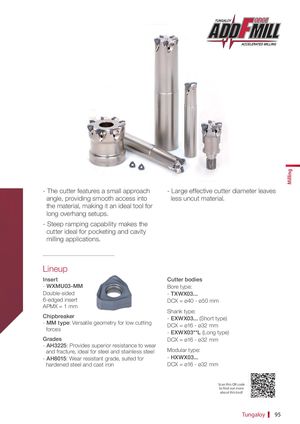

- The cutter features a small approach - Large effective cutter diameter leaves
angle, providing smooth access into less uncut material.
the material, making it an ideal tool for
long overhang setups.
- Steep ramping capability makes the
cutter ideal for pocketing and cavity
milling applications.
Lineup
| Insert | Cutter bodies |
| - WXMU03-MM | Bore type: |
| Double-sided | - TXWX03... |
| 6-edged insert | DCX = ø40 - ø50 mm |
| APMX = 1 mm | |
| Shank type: | |
| Chipbreaker | - EXWX03... (Short type) |
| - MM type: Versatile geometry for low cutting | |
| DCX = ø16 - ø32 mm | |
| forces | |
| - EXWX03**L (Long type) | |
| Grades | DCX = ø16 - ø32 mm |
| - AH3225: Provides superior resistance to wear | |
| and fracture, ideal for steel and stainless steel | Modular type: |
| - AH8015: Wear resistant grade, suited for | - HXWX03... |
| hardened steel and cast iron | DCX = ø16 - ø32 mm |
