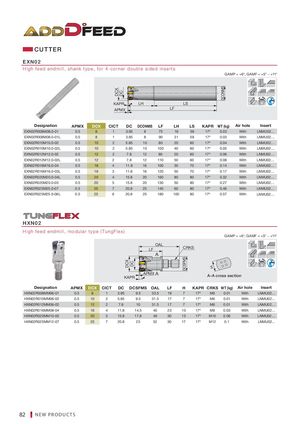

CUTTER
E X N 0 2
High feed e n d m i l l , shank t y p e , for 4 - c o r n e r double sided inserts
| DCX DC KAPR | LH | LS | DCONMS GAM | P = +6°, G | A | MF = +5° ~ +11° | |||||||
| APM | X | LF | |||||||||||
| Designation | APMX | DCX | CICT | DC | DCONMS | LF | LH | LS | KAPR | WT (kg) | Air hole | Insert | |
| EXN02R008M08.0-01 | 0.5 | 8 | 1 | 3.95 | 8 | 75 | 16 | 59 | 17º | 0.02 | With | LNMU02… | |
| EXN02R008M08.0-01L | 0.5 | 8 | 1 | 3.95 | 8 | 90 | 31 | 59 | 17º | 0.03 | With | LNMU02… | |
| EXN02R010M10.0-02 | 0.5 | 10 | 2 | 5.85 | 10 | 80 | 20 | 60 | 17º | 0.04 | With | LNMU02… | |
| EXN02R010M10.0-02L | 0.5 | 10 | 2 | 5.85 | 10 | 100 | 40 | 60 | 17º | 0.05 | With | LNMU02… | |
| EXN02R012M12.0-02 | 0.5 | 12 | 2 | 7.8 | 12 | 80 | 20 | 60 | 17º | 0.06 | With | LNMU02… | |
| EXN02R012M12.0-02L | 0.5 | 12 | 2 | 7.8 | 12 | 110 | 50 | 60 | 17º | 0.08 | With | LNMU02… | |
| EXN02R016M16.0-04 | 0.5 | 16 | 4 | 11.8 | 16 | 100 | 30 | 70 | 17º | 0.14 | With | LNMU02… | |
| EXN02R016M16.0-03L | 0.5 | 16 | 3 | 11.8 | 16 | 120 | 50 | 70 | 17º | 0.17 | With | LNMU02… | |
| EXN02R020M20.0-04L | 0.5 | 20 | 4 | 15.8 | 20 | 160 | 80 | 80 | 17º | 0.32 | With | LNMU02… | |
| EXN02R020M20.0-05 | 0.5 | 20 | 5 | 15.8 | 20 | 130 | 50 | 80 | 17º | 0.27 | With | LNMU02… | |
| EXN02R025M25.0-07 | 0.5 | 25 | 7 | 20.8 | 25 | 140 | 60 | 80 | 17º | 0.46 | With | LNMU02… | |
| EXN02R025M25.0-06L | 0.5 | 25 | 6 | 20.8 | 25 | 180 | 100 | 80 | 17º | 0.57 | With | LNMU02… |
H X N 0 2
High feed e n d m i l l , modular type ( T u n g F l e x )
| GAMP | = +6°, GAMF | = +5° ~ +11° | |||||||||||
| K | DCX DC AP APR | OAL LF A A MX | DCSFMS CRK | S | H A-A cr | oss sect | ion | ||||||
| Designation | APMX | DCX | CICT | DC | DCSFMS | OAL | LF | H | KAPR | CRKS | WT (kg) | Air hole | Insert |
| HXN02R008MM06-01 | 0.5 | 8 | 1 | 3.95 | 9.5 | 33.5 | 19 | 7 | 17º | M6 | 0.01 | With | LNMU02… |
| HXN02R010MM06-02 | 0.5 | 10 | 2 | 5.85 | 9.5 | 31.5 | 17 | 7 | 17º | M6 | 0.01 | With | LNMU02… |
| HXN02R012MM06-02 | 0.5 | 12 | 2 | 7.8 | 10 | 31.5 | 17 | 7 | 17º | M6 | 0.01 | With | LNMU02… |
| HXN02R016MM08-04 | 0.5 | 16 | 4 | 11.8 | 14.5 | 40 | 23 | 10 | 17º | M8 | 0.03 | With | LNMU02… |
| HXN02R020MM10-05 | 0.5 | 20 | 5 | 15.8 | 17.8 | 49 | 30 | 15 | 17º | M10 | 0.06 | With | LNMU02… |
| HXN02R025MM12-07 | 0.5 | 25 | 7 | 20.8 | 23 | 52 | 30 | 17 | 17º | M12 | 0.1 | With | LNMU02... |
