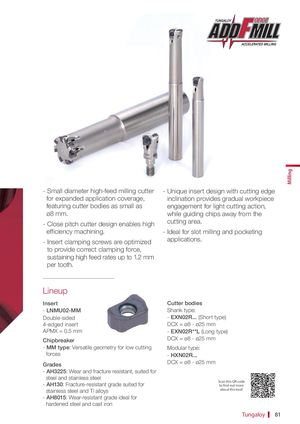

| - Small diameter high-feed milling cutter | - Unique insert design with cutting edge |
| for expanded application coverage, | inclination provides gradual workpiece |
| featuring cutter bodies as small as | engagement for light cutting action, |
| ø8 mm. | while guiding chips away from the |
| - Close pitch cutter design enables high | cutting area. |
| efficiency machining. | - Ideal for slot milling and pocketing |
| - Insert clamping screws are optimized | applications. |
to provide correct clamping force, sustaining high feed rates up to 1.2 mm per tooth.
Lineup
| Insert | Cutter bodies |
| - LNMU02-MM | Shank type: |
| Double-sided | - EXN02R... (Short type) |
| 4-edged insert | DCX = ø8 - ø25 mm |
| APMX = 0.5 mm | - EXN02R**L (Long type) |
| Chipbreaker | DCX = ø8 - ø25 mm |
| - MM type: Versatile geometry for low cutting | Modular type: |
| forces | - HXN02R... |
DCX = ø8 - ø25 mm Grades - AH3225: Wear and fracture resistant, suited for steel and stainless steel
Scan this QR code - AH130: Fracture-resistant grade suited for stainless steel and Ti alloys about this tool! - AH8015: Wear-resistant grade ideal for hardened steel and cast iron
