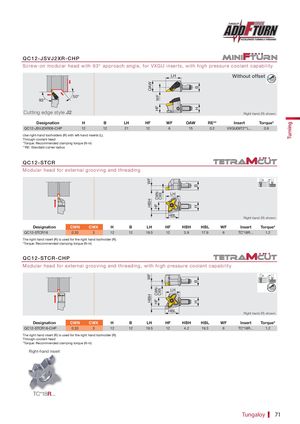

Q C 1 2 - J S V J 2 X R - C H P
S c re w - o n modular head with 9 3 ° approach a n g l e , for VXGU i n s e r t s , with high pressure coolant capability LH Without offset
50° 93°
Cutting edge style J2
Right hand (R) shown.
| Designation | H | B | LH | HF | WF | OAW | RE** | Insert | Torque* | |||
| QC12-JSVJ2XR09-CHP | 12 | 12 | 21 | 12 | 6 | 15 | 0.2 | VXGU09T2**L... | 0.9 |
Use right-hand toolholders (R) with left-hand inserts (L). Through-coolant head *Torque: Recommended clamping torque (N∙m) **RE: Standard corner radius
Q C 1 2 - STC R
Modular head for external grooving and threading
| F | ||||||||||
| W | B | |||||||||
| HBH HF CWN- CWX | LH | H | ||||||||
| HBL | Right ha | nd (R) shown. | ||||||||
| Designation | CWN | CWX | H | B | LH | HF | HBH HBL | WF | Insert | Torque |
| QC12-STCR18 | 0.33 | 3 | 12 | 12 | 19.5 | 12 | 3.9 17.9 | 6 | TC18R... | 1.2 |
The right hand insert (R) is used for the right hand toolholder (R). *Torque: Recommended clamping torque (N∙m)
Q C 1 2 - STC R - C H P
Modular head for external grooving and t h re a d i n g , with high pressure coolant capability
LH CWN- CWX
HBL Right hand (R) shown.
| Designation | CWN | CWX | H | B | LH | HF | HBH | HBL | WF | Insert | Torque* | ||
| QC12-STCR18-CHP | 0.33 | 3 | 12 | 12 | 19.5 | 12 | 4.2 | 19.3 | 6 | TC*18R... | 1.2 |
The right hand insert (R) is used for the right hand toolholder (R). Through-coolant head *Torque: Recommended clamping torque (N∙m) Right-hand insert
TC*18R...
