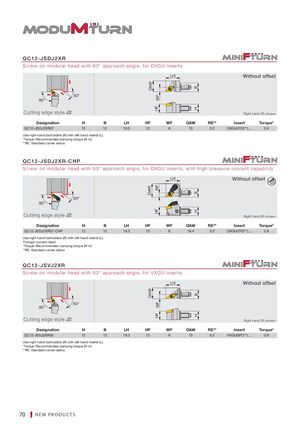

QC12-JSDJ2XR S c re w - o n m o d u l a r h e a d w i t h 9 3 ° a p p ro a c h a n g l e , f o r DXG U i n s e r t s LH Without offset OAW B 30° WF 93° HF H Cutting edge style J2 Right hand (R) shown. Designation H B LH HF WF OAW RE** Insert Torque* QC12-JSDJ2XR07 12 12 19.5 12 6 15 0.2 DXGU0703**L... 0.9 Use right-hand toolholders (R) with left-hand inserts (L). *Torque: Recommended clamping torque (N∙m) **RE: Standard corner radius QC12-JSDJ2XR-CHP Scre w - on m od u lar h e a d wi t h 9 3 ° a p p ro a c h a ngle , for DXG U inse r t s, w it h high pre ssure c oola nt c a pabi l i ty LH Without offset WF OAW B 30° 93° HF H Cutting edge style J2 Right hand (R) shown. Designation H B LH HF WF OAW RE** Insert Torque* QC12-JSDJ2XR07-CHP 12 12 19.5 12 6 18.4 0.2 DXGU0703**L... 0.9 Use right-hand toolholders (R) with left-hand inserts (L). Through-coolant head *Torque: Recommended clamping torque (N∙m) **RE: Standard corner radius QC12-JSVJ2XR S c re w - o n m o d u l a r h e a d w i t h 9 3 ° a p p ro a c h a n g l e , f o r V XG U i n s e r t s LH Without offset OAW B WF 50° 93° HF H Cutting edge style J2 Right hand (R) shown. Designation H B LH HF WF OAW RE** Insert Torque* QC12-JSVJ2XR09 12 12 19.5 12 6 15 0.2 VXGU09T2**L... 0.9 Use right-hand toolholders (R) with left-hand inserts (L). *Torque: Recommended clamping torque (N∙m) **RE: Standard corner radius 70 N E W PR O D U C T S
