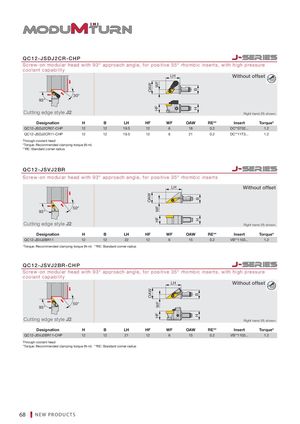

Q C 1 2 - J S D J 2 C R - C H P
| Screw-on modular head with 9 coolant capability | 3° appro | ach angl | e, for positive 55° rhombic i | nserts, w | ith high pre | ssure |
| 93° 30° Cutting edge styleJ2 | B LH HF H OAW WF | Without Right | offset hand (R) shown. | |||
| H Designation | B | LH | HF WF OAW | RE | Insert | Torque |
| QC12-JSDJ2CR07-CHP 12 | 12 | 19.5 | 12 6 18 | 0.2 | DC0702... | 1.2 |
| QC12-JSDJ2CR11-CHP 12 | 12 | 19.5 | 12 6 21 | 0.2 | DC11T3... | 1.2 |
| Through-coolant head |
*Torque: Recommended clamping torque (N∙m) **RE: Standard corner radius
Q C 1 2 - J S V J 2 B R
S c re w - o n modular head with 9 3 ° approach a n g l e , for positive 3 5 ° rhombic inserts
| LH | Wit | hout offset | |||||
| OAW | B | ||||||
| 93° 50° | WF | ||||||
| Cutting edge styleJ2 | HF | H | Right | hand (R) shown. | |||
| H Designation | B | LH | HF WF | OAW | RE | Insert | Torque |
| QC12-JSVJ2BR11 12 | 12 | 22 | 12 6 | 15 | 0.2 | VB1103... | 1.2 |
*Torque: Recommended clamping torque (N∙m) **RE: Standard corner radius
Q C 1 2 - J S V J 2 B R - C H P
S c re w - o n modular head with 9 3 ° approach a n g l e , for positive 3 5 ° rhombic i n s e r t s , with high pressure coolant capability LH Without offset
50° 93°
Cutting edge style J2
Right hand (R) shown.
| Designation | H | B | LH | HF | WF | OAW | RE** | Insert | Torque* | ||
| QC12-JSVJ2BR11-CHP | 12 | 12 | 21 | 12 | 6 | 15 | 0.2 | VB**1103... | 1.2 |
Through-coolant head *Torque: Recommended clamping torque (N∙m) **RE: Standard corner radius
