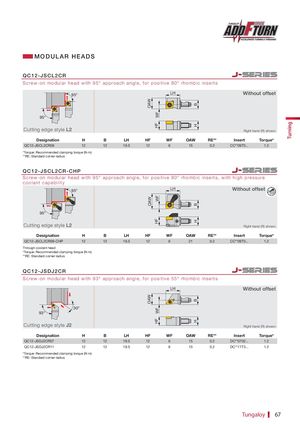

MODUL AR HEADS QC12-JSCL2CR Scre w - on m od u la r h e a d wi t h 9 5 ° a p p ro a c h a ngle , for posit iv e 80° r hombic inse r t s 95° LH Without offset OAW B WF 95° Turning HF H Cutting edge style L2 Right hand (R) shown. Designation H B LH HF WF OAW RE** Insert Torque* QC12-JSCL2CR09 12 12 19.5 12 6 15 0.2 CC**09T3... 1.2 *Torque: Recommended clamping torque (N∙m) **RE: Standard corner radius QC12-JSCL2CR-CHP Scre w - on m od u la r h e a d wi t h 9 5 ° a p p ro a c h a ngle , for posit iv e 80° r hombic inse r t s, w it h high pre ssure co ola n t cap ab ilit y 95° LH Without offset WF OAW B 95° HF H Cutting edge style L2 Right hand (R) shown. Designation H B LH HF WF OAW RE** Insert Torque* QC12-JSCL2CR09-CHP 12 12 19.5 12 6 21 0.2 CC**09T3... 1.2 Through-coolant head *Torque: Recommended clamping torque (N∙m) **RE: Standard corner radius QC12-JSDJ2CR Scre w - on m od u la r h e a d wi t h 9 3 ° a p p ro a c h a ngle , for posit iv e 55° r hombic inse r t s LH Without offset OAW B 30° WF 93° HF H Cutting edge style J2 Right hand (R) shown. Designation H B LH HF WF OAW RE** Insert Torque* QC12-JSDJ2CR07 12 12 19.5 12 6 15 0.2 DC**0702... 1.2 QC12-JSDJ2CR11 12 12 19.5 12 6 15 0.2 DC**11T3... 1.2 *Torque: Recommended clamping torque (N∙m) **RE: Standard corner radius Tungaloy 67
