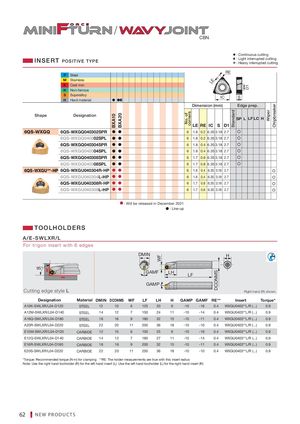

Брошюра Tungaloy новая продукция - страница 62
Навигация
Каталог Tungaloy глубокое сверление 2
Каталог Tungaloy глубокое сверление 1
Каталог Tungaloy зубофрезерование
Общий каталог Tungaloy 2020 - 2021
Каталог Tungaloy инструмент для автоматов швейцарского типа
CBN
C : Continuous cutting INSERT L : Light interrupted cutting POSITIVE TYPE H : Heavy interrupted cutting
RE
P Steel
| M | Stainless | LE |
| K | Cast iron | |
| N | Non-ferrous | |
| S | Superalloy |
C CL IC S
H Hard material Dimension (mm) Edge prep. Shape Designation SP L LF LC H
LE RE IC S D1
| 6QS-WXGQ | 6QS-WXGQ040302SPR | 6 | 1.8 0.2 6.35 3.18 2.7 |
| 6QS-WXGQ040302SPL | 6 | 1.8 0.2 6.35 3.18 2.7 | |
| 6QS-WXGQ040304SPR | 6 | 1.8 0.4 6.35 3.18 2.7 | |
| 6QS-WXGQ040304SPL | 6 | 1.8 0.4 6.35 3.18 2.7 | |
| 6QS-WXGQ040308SPR | 6 | 1.7 0.8 6.35 3.18 2.7 | |
| 6QS-WXGQ040308SPL | 6 | 1.7 0.8 6.35 3.18 2.7 | |
| 6QS-WXGU**-HP 6QS-WXGU040304R-HP | 6 | 1.8 0.4 6.35 3.18 2.7 | |
| 6QS-WXGU040304L-HP | 6 | 1.8 0.4 6.35 3.18 2.7 | |
| 6QS-WXGU040308R-HP | 6 | 1.7 0.8 6.35 3.18 2.7 | |
| 6QS-WXGU040308L-HP | 6 | 1.7 0.8 6.35 3.18 2.7 |
: Will be released in December 2021 䖃 : Line-up
TOOLHOLDERS
A / E - S W L X R / L
Fo r trigon insert with 6 edges
| 95° Cutting edge styleL | GA GA DMIN | WF MP MF | LH | LF | DCONMS | H Right han | d (R) shown. | |||||
| Designation | Material | DMIN | DCONMS | WF | LF | LH | H | GAMP | GAMF | RE | Insert | Torque |
| A10K-SWLXR/L04-D120 | STEEL | 12 | 10 | 6 | 125 | 20 | 9 | -10 | -16 | 0.4 | WXGU0403L/R (...) | 0.9 |
| A12M-SWLXR/L04-D140 | STEEL | 14 | 12 | 7 | 150 | 24 | 11 | -10 | -14 | 0.4 | WXGU0403L/R (...) | 0.9 |
| A16Q-SWLXR/L04-D180 | STEEL | 18 | 16 | 9 | 180 | 32 | 15 | -10 | -11 | 0.4 | WXGU0403L/R (...) | 0.9 |
| A20R-SWLXR/L04-D220 | STEEL | 22 | 20 | 11 | 200 | 36 | 18 | -10 | -10 | 0.4 | WXGU0403L/R (...) | 0.9 |
| E10M-SWLXR/L04-D120 | CARBIDE | 12 | 10 | 6 | 150 | 25 | 9 | -10 | -16 | 0.4 | WXGU0403L/R (...) | 0.9 |
| E12Q-SWLXR/L04-D140 | CARBIDE | 14 | 12 | 7 | 180 | 27 | 11 | -10 | -14 | 0.4 | WXGU0403L/R (...) | 0.9 |
| E16R-SWLXR/L04-D180 | CARBIDE | 18 | 16 | 9 | 200 | 32 | 15 | -10 | -11 | 0.4 | WXGU0403L/R (...) | 0.9 |
| E20S-SWLXR/L04-D220 | CARBIDE | 22 | 20 | 11 | 250 | 36 | 18 | -10 | -10 | 0.4 | WXGU0403L/R (...) | 0.9 |
*Torque: Recommended torque (N∙m) for clamping **RE: The holder measurements are true with this insert radius Note: Use the right hand toolholder (R) for the left hand insert (L). Use the left hand toolholder (L) for the right hand insert (R)
