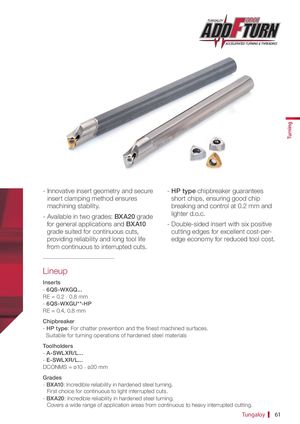

TUNGALOY TURN ACCELERATED TURNING & THREADING
| - Innovative insert geometry and secure | - HP type chipbreaker guarantees |
| insert clamping method ensures | short chips, ensuring good chip |
| machining stability. | breaking and control at 0.2 mm and |
| - Available in two grades: BXA20 grade | lighter d.o.c. |
| for general applications and BXA10 | - Double-sided insert with six positive |
| grade suited for continuous cuts, | cutting edges for excellent cost-per- |
| providing reliability and long tool life | edge economy for reduced tool cost. |
from continuous to interrupted cuts.
Lineup
Inserts - 6QS-WXGQ... RE = 0.2 - 0.8 mm - 6QS-WXGU**-HP RE = 0.4, 0.8 mm Chipbreaker - HP type: For chatter prevention and the finest machined surfaces. Suitable for turning operations of hardened steel materials Toolholders - A-SWLXR/L... - E-SWLXR/L... DCONMS = ø10 - ø20 mm Grades - BXA10: Incredible reliability in hardened steel turning. First choice for continuous to light interrupted cuts. - BXA20: Incredible reliability in hardened steel turning. Covers a wide range of application areas from continuous to heavy interrupted cutting.
