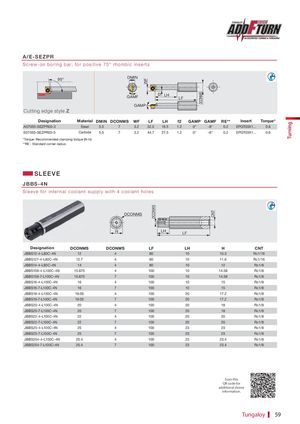

Брошюра Tungaloy новая продукция - страница 59

A/E-SEZPR S c re w - o n b o r i n g b a r, f o r p o s i t i v e 7 5 ° r h o m b i c i n s e r t s 95° DMIN WF DCONMS f2 GAMF LH LF GAMP Cutting edge style Z Designation Material DMIN DCONMS WF LF LH f2 GAMP GAMF RE** Insert Torque* Turning A07055-SEZPR03-3 Steel 5.5 7 3.2 32.5 16.5 1.2 0° -8° 0.2 EPGT03X1... 0.6 E07055-SEZPR03-5 Carbide 5.5 7 3.2 44.7 27.5 1.2 0° -8° 0.2 EPGT03X1... 0.6 *Torque: Recommended clamping torque (N∙m) **RE : Standard corner radius S LE E V E JBBS-4N S l e e ve fo r i n te r n a l c o o l a n t s u p p l y w i th 4 c o o l a n t h o l e s DCONWS DCONMS CNT H LH LF Designation DCONMS DCONWS LF LH H CNT JBBS12-4-L80C-4N 12 4 80 10 10.3 Rc1/16 JBBS127-4-L80C-4N 12.7 4 80 10 11.6 Rc1/16 JBBS14-4-L80C-4N 14 4 80 10 12 Rc1/8 JBBS159-4-L100C-4N 15.875 4 100 10 14.58 Rc1/8 JBBS159-7-L100C-4N 15.875 7 100 10 14.58 Rc1/8 JBBS16-4-L100C-4N 16 4 100 10 15 Rc1/8 JBBS16-7-L100C-4N 16 7 100 10 15 Rc1/8 JBBS19-4-L100C-4N 19.05 4 100 20 17.2 Rc1/8 JBBS19-7-L100C-4N 19.05 7 100 20 17.2 Rc1/8 JBBS20-4-L100C-4N 20 4 100 20 18 Rc1/8 JBBS20-7-L100C-4N 20 7 100 20 18 Rc1/8 JBBS22-4-L100C-4N 22 4 100 20 20 Rc1/8 JBBS22-7-L100C-4N 22 7 100 20 20 Rc1/8 JBBS25-4-L100C-4N 25 4 100 23 23 Rc1/8 JBBS25-7-L100C-4N 25 7 100 23 23 Rc1/8 JBBS254-4-L100C-4N 25.4 4 100 23 23.4 Rc1/8 JBBS254-7-L100C-4N 25.4 7 100 23 23.4 Rc1/8 Scan this QR code for additional sleeve information. Tungaloy 59
