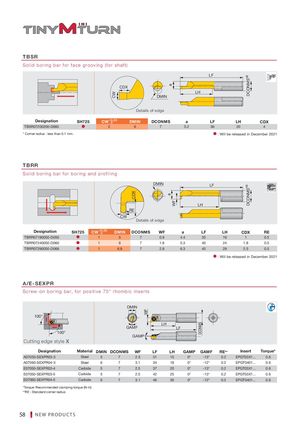

TBSR
Solid boring bar for face grooving ( f o r s h a f t )
LF CDX LH DMIN
Details of edge
| Designation | SH725 | CW +0.05 | DMIN | DCONMS | a LF LH CDX | |
| 0 |
TBSR07200200-D060 2 6 7 5.2 36 20 4
* Corner radius : less than 0.1 mm. : Will be released in December 2021
TBRR
Solid boring bar for boring and profiling
DMIN LF
LH RE CW
Details of edge
| Designation | SH725 | CW +0.05 | DMIN | DCONMS | WF a LF LH CDX | RE | |
| 0 |
| TBRR07190050-D050 | | 1 | 5 | 7 | 0.9 | 4.4 | 35 | 19 | 1 | 0.5 |
| TBRR07240050-D060 | | 1 | 6 | 7 | 1.8 | 5.3 | 40 | 24 | 1.8 | 0.5 |
| TBRR07290050-D068 | | 1 | 6.8 | 7 | 2.8 | 6.3 | 45 | 29 | 2.5 | 0.5 |
: Will be released in December 2021
A/E-SEXPR
S c re w - o n boring b a r, for positive 7 5 ° rhombic inserts
| 100° | DMIN GAMF | WF | LH | LF | ONMS | |||||
| 100° | GAMP | DC | ||||||||
| Cutting edge styleX | ||||||||||
| Designation | Material | DMIN | DCONMS WF | LF | LH | GAMP | GAMF | RE | Insert | Torque |
| A07050-SEXPR03-3 | Steel | 5 | 7 2.5 | 31 | 15 | 0° | -13° | 0.2 | EPGT03X1... | 0.6 |
| A07060-SEXPR04-3 | Steel | 6 | 7 3.1 | 34 | 18 | 0° | -12° | 0.2 | EPGT0401... | 0.6 |
| E07050-SEXPR03-4 | Carbide | 5 | 7 2.5 | 37 | 20 | 0° | -13° | 0.2 | EPGT03X1... | 0.6 |
| E07050-SEXPR03-5 | Carbide | 5 | 7 2.5 | 42 | 25 | 0° | -13° | 0.2 | EPGT03X1... | 0.6 |
| E07060-SEXPR04-5 | Carbide | 6 | 7 3.1 | 46 | 30 | 0° | -12° | 0.2 | EPGT0401... | 0.6 |
*Torque: Recommended clamping torque (N∙m) **RE : Standard corner radius
