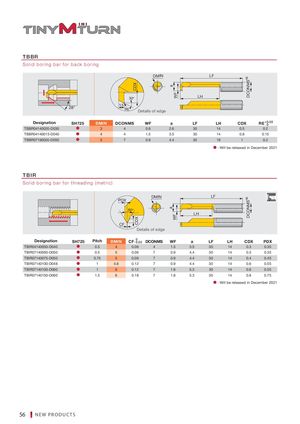

TBBR
Solid boring bar for back boring
DMIN LF
30º LH 28° 1.5 RE Details of edge
| Designation | SH725 | DMIN | DCONMS | WF | a | LF | LH | CDX | RE +0.05 | |||||
| 0 | ||||||||||||||
| TBBR04140020-D030 | | 3 | 4 | 0.6 | 2.6 | 30 | 14 | 0.5 | 0.2 | |||||
| TBBR04140015-D040 | | 4 | 4 | 1.5 | 3.5 | 30 | 14 | 0.8 | 0.15 | |||||
| TBBR07190020-D050 | | 5 | 7 | 0.9 | 4.4 | 35 | 19 | 1 | 0.2 |
- : Will be released in December 2021
TBIR
Solid boring bar for threading ( m e t r i c )
DMIN LF PDX 60º LH CF
Details of edge
| SH725 Designation | Pitch | DMIN | CF 0 | DCONMS | WF | a | LF | LH | CDX | PDX | |
| - 0.02 | |||||||||||
| TBIR04140050-D040 | | 0.5 | 4 | 0.06 | 4 | 1.5 | 3.5 | 30 | 14 | 0.3 | 0.35 |
| TBIR07140050-D050 | | 0.5 | 5 | 0.06 | 7 | 0.9 | 4.4 | 30 | 14 | 0.3 | 0.35 |
| TBIR07140075-D050 | | 0.75 | 5 | 0.09 | 7 | 0.9 | 4.4 | 30 | 14 | 0.4 | 0.45 |
| TBIR07140100-D048 | | 1 | 4.8 | 0.12 | 7 | 0.9 | 4.4 | 30 | 14 | 0.6 | 0.55 |
| TBIR07140100-D060 | | 1 | 6 | 0.12 | 7 | 1.8 | 5.3 | 30 | 14 | 0.6 | 0.55 |
| TBIR07140150-D060 | | 1.5 | 6 | 0.18 | 7 | 1.8 | 5.3 | 30 | 14 | 0.8 | 0.75 |
- : Will be released in December 2021
