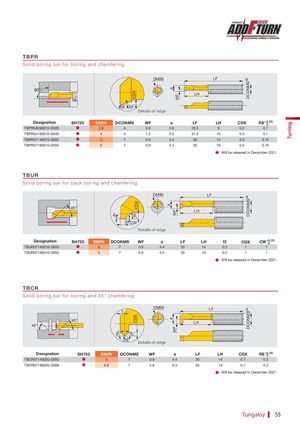

TBPR
Solid boring bar for boring and chamfering
DMIN LF
90°
LH RE 20º
Details of edge
| SH725 Designation | DMIN | DCONMS | WF | a | LF | LH | CDX | RE+0.05 | |
| 0 | |||||||||
| TBPR04090010-D028 | | 2.8 | 4 | 0.9 | 2.6 | 25.5 | 9 | 0.2 | 0.1 |
| TBPR04150010-D040 | | 4 | 4 | 1.5 | 3.5 | 31.5 | 15 | 0.3 | 0.1 |
| TBPR07140015-D050 | | 5 | 7 | 0.9 | 4.4 | 30 | 14 | 0.5 | 0.15 |
| TBPR07190015-D050 | | 5 | 7 | 0.9 | 4.4 | 35 | 19 | 0.5 | 0.15 |
- : Will be released in December 2021.
TBUR
Solid boring bar for back boring and chamfering
DMIN LF
45°
LH 45º 8º CW
Details of edge
| Designation | SH725 | DMIN | DCONMS | WF | a | LF | LH | f2 | CDX | CW +0.05 | |||||
| 0 | |||||||||||||||
| TBUR07140010-D050 | | 5 | 7 | 0.9 | 4.4 | 30 | 14 | 0.2 | 1 | 1 | |||||
| TBUR07190010-D050 | | 5 | 7 | 0.9 | 4.4 | 35 | 19 | 0.2 | 1 | 1 |
- : Will be released in December 2021.
TBCR
Solid boring bar for boring and 4 5 ° chamfering
DMIN LF
1
45° LH
45° 45º 45º RE
Details of edge
| Designation | SH725 | DMIN | DCONMS | WF | a | LF | LH | CDX | RE+0.05 | |||||
| 0 | ||||||||||||||
| TBCR07140020-D050 | | 5 | 7 | 0.9 | 4.4 | 30 | 14 | 0.7 | 0.2 | |||||
| TBCR07190020-D068 | | 6.8 | 7 | 2.8 | 6.3 | 35 | 19 | 0.7 | 0.2 |
- : Will be released in December 2021.
