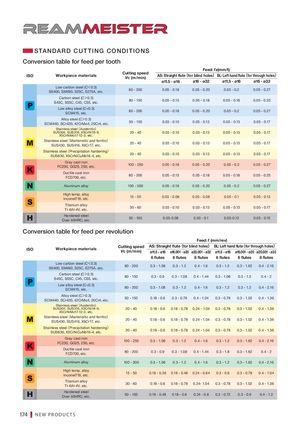

STANDARD CUTTING CONDITIONS

Conversion table for feed per tooth

ISO	Workpiece materials	Cutting speed Vc (m/min)	AS: Straight fl ute	Feed:f （for blind holes）	z(mm/t) BL: Left hand fl ute（	for through holes）
			ø11.5 - ø16	ø16 - ø32	ø11.5 - ø16	ø16 - ø32
	Low carbon steel (C＜0.3) SS400, SM490, S25C, E275A, etc.	80 - 200	0.05 - 0.18	0.05 - 0.20	0.05 - 0.2	0.05 - 0.27
	Carbon steel (C＞0.3) S45C, S55C, C45, C55, etc.	80 - 150	0.05 - 0.15	0.05 - 0.18	0.05 - 0.18	0.05 - 0.25
	Low alloy steel (C SCM415, etc.	80 - 200	0.05 - 0.18	0.05 - 0.20	0.05 - 0.2	0.05 - 0.27
	Alloy steel (C＞0.3) SCM440, SCr420, 42CrMo4, 20Cr4, etc.	50 - 150	0.03 - 0.10	0.05 - 0.13	0.05 - 0.13	0.05 - 0.17
	Stainless steel（Austenitic） SUS304, SUS316, X5CrNi18-9, X5CrNiMo17-12-3, etc.	20 - 40	0.03 - 0.10	0.03 - 0.13	0.05 - 0.13	0.05 - 0.17
	Stainless steel（Martensitic and ferritic） SUS430, SUS416, X6Cr17, etc.	20 - 40	0.03 - 0.10	0.03 - 0.13	0.05 - 0.13	0.05 - 0.17
	Stainless steel（Precipitation hardening） SUS630, X5CrNiCuNb16-4, etc.	20 - 40	0.03 - 0.10	0.03 - 0.13	0.05 - 0.13	0.05 - 0.17
	Gray cast iron FC250, GG25, 250, etc.	100 - 250	0.05 - 0.18	0.05 - 0.20	0.05 - 0.2	0.05 - 0.27
	Ductile cast iron FCD700, etc.	80 - 200	0.05 - 0.15	0.05 - 0.18	0.05 - 0.18	0.05 - 0.25
	Aluminum alloy	100 - 300	0.05 - 0.18	0.05 - 0.20	0.05 - 0.2	0.05 - 0.27
	High temp. alloy Inconel718, etc.	15 - 50	0.03 - 0.06	0.03 - 0.08	0.05 - 0.1	0.05 - 0.13
	Titanium alloy Ti-6Al-4V, etc.	30 - 60	0.03 - 0.10	0.03 - 0.13	0.05 - 0.13	0.05 - 0.17
	Hardened steel Over 40HRC, etc.	50 - 100	0.03-0.08	0.03 - 0.1	0.05-0.12	0.05 - 0.15

Conversion table for feed per revolution

					Feed:f (	mm/rev)
ISO	Workpiece materials	Cutting speed Vc (m/min)	ø11.5 - ø16 AS: Straig l 6 fl utes	ø16.001 - ø20 ht fl ute（for 6 fl utes	ø20.001 - ø32 blind holes） 8 fl utes	ø11.5 - ø16 BL: Left han l 6 fl utes	ø16.001 - ø20 d fl ute（for thr 6 fl utes	ø20.001 - ø32 ough holes） 8 fl utes
	Low carbon steel (C＜0.3) SS400, SM490, S25C, E275A, etc.	80 - 200	0.3 - 1.08	0.3 - 1.2	0.4 - 1.6	0.3 - 1.2	0.3 - 1.62	0.4 - 2.16
	Carbon steel (C＞0.3) S45C, S55C, C45, C55, etc.	80 - 150	0.3 - 0.9	0.3 - 1.08	0.4 - 1.44	0.3 - 1.08	0.3 - 1.5	0.4 - 2
	Low alloy steel (C SCM415, etc.	80 - 200	0.3 - 1.08	0.3 - 1.2	0.4 - 1.6	0.3 - 1.2	0.3 - 1.2	0.4 - 2.16
	Alloy steel (C＞0.3) SCM440, SCr420, 42CrMo4, 20Cr4, etc.	50 - 150	0.18 - 0.6	0.3 - 0.78	0.4 - 1.04	0.3 - 0.78	0.3 - 1.02	0.4 - 1.36
	Stainless steel（Austenitic） SUS304, SUS316, X5CrNi18-9, X5CrNiMo17-12-3, etc.	20 - 40	0.18 - 0.6	0.18 - 0.78	0.24 - 1.04	0.3 - 0.78	0.3 - 1.02	0.4 - 1.36
	Stainless steel（Martensitic and ferritic） SUS430, SUS416, X6Cr17, etc.	20 - 40	0.18 - 0.6	0.18 - 0.78	0.24 - 1.04	0.3 - 0.78	0.3 - 1.02	0.4 - 1.36
	Stainless steel（Precipitation hardening） SUS630, X5CrNiCuNb16-4, etc.	20 - 40	0.18 - 0.6	0.18 - 0.78	0.24 - 1.04	0.3 - 0.78	0.3 - 1.02	0.4 - 1.36
	Gray cast iron FC250, GG25, 250, etc.	100 - 250	0.3 - 1.08	0.3 - 1.2	0.4 - 1.6	0.3 - 1.2	0.3 - 1.62	0.4 - 2.16
	Ductile cast iron FCD700, etc.	80 - 200	0.3 - 0.9	0.3 - 1.08	0.4 - 1.44	0.3 - 1.8	0.3 - 1.62	0.4 - 2
	Aluminum alloy	100 - 300	0.3 - 1.08	0.3 - 1.2	0.4 - 1.6	0.3 - 1.2	0.3 - 1.62	0.4 - 2.16
	High temp. alloy Inconel718, etc.	15 - 50	0.18 - 0.36	0.18 - 0.48	0.24 - 0.64	0.3 - 0.6	0.3 - 0.78	0.4 - 1.04
	Titanium alloy Ti-6Al-4V, etc.	30 - 60	0.18 - 0.6	0.18 - 0.78	0.24- 1.04	0.3 - 0.78	0.3 - 1.02	0.4 - 1.36
	Hardened steel Over 40HRC, etc.	50 - 100	0.18 - 0.48	0.18 - 0.6	0.24 - 0.8	0.3 - 0.72	0.3 - 0.9	0.4 - 1.2
