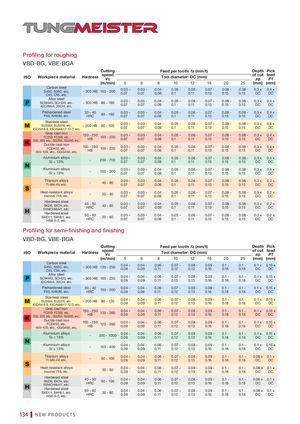

Брошюра Tungaloy новая продукция - страница 134

Предыдущая страница Следующая страница

Навигация

Profiling for roughing

VBD-BG, VBE-BGA

CuttingFeedper tooth:fz (mm/t)DepthPick
ISO Workpiece materialHardnessspeed VcTool diameter: DC(mm)of cut apfeed Pf
(m/min)5681012162025(mm)(mm)
Carbon steel S45C, S55C, etc. C45, C55, etc.- 300 HB100 - 2000.03 - 0.070.03 - 0.070.04 - 0.080.05 - 0.10.06 - 0.110.07 - 0.130.08 - 0.150.08 - 0.150.3 x DC0.4 x DC
Alloy steel SCM440, SCr420, etc. 42CrMo4, 20Cr4, etc.- 300 HB80 - 1800.03 - 0.070.03 - 0.070.04 - 0.080.05 - 0.10.06 - 0.110.07 - 0.130.08 - 0.150.08 - 0.150.3 x DC0.4 x DC
Prehardened steel PX5, NAK80, etc.30 - 40 HRC80 - 1600.03 - 0.070.03 - 0.070.04 - 0.080.05 - 0.10.06 - 0.110.07 - 0.130.08 - 0.150.08 - 0.150.3 x DC0.4 x DC
Stainless steel SUS304, SUS316, etc. X5CrNi18-9, X5CrNiMo17-12-2, etc.- 200 HB60 - 1000.03 - 0.070.03 - 0.070.04 - 0.080.05 - 0.10.06 - 0.110.07 - 0.130.08 - 0.150.08 - 0.150.3 x DC0.4 x DC
Grey cast iron FC250, FC300, etc. 250, 300, etc., GG250, GG300, etc.150 - 250 HB100 - 2200.03 - 0.070.03 - 0.070.04 - 0.080.05 - 0.10.06 - 0.110.07 - 0.130.08 - 0.150.08 - 0.150.3 x DC0.4 x DC
Ductile cast iron FCD450, etc. 450-10S, etc., GGG450, etc.150 - 250 HB100 - 2200.03 - 0.070.03 - 0.070.04 - 0.080.05 - 0.10.06 - 0.110.07 - 0.130.08 - 0.150.08 - 0.150.3 x DC0.4 x DC
Aluminium alloys Si < 13%-200 - 7000.03 - 0.070.03 - 0.070.04 - 0.080.05 - 0.10.06 - 0.110.07 - 0.130.08 - 0.150.08 - 0.150.3 x DC0.4 x DC
Aluminium alloys Si ≥ 13%-100 - 3000.03 - 0.070.03 - 0.070.04 - 0.080.05 - 0.10.06 - 0.110.07 - 0.130.08 - 0.150.08 - 0.150.3 x DC0.4 x DC
Titanium alloys Ti-6Al-4V, etc.-40 - 800.03 - 0.070.03 - 0.070.04 - 0.080.05 - 0.10.06 - 0.110.07 - 0.130.08 - 0.150.08 - 0.150.3 x DC0.2 x DC
Heat-resistant alloys Inconel 718, etc.-20 - 400.03 - 0.070.03 - 0.070.04 - 0.080.05 - 0.10.06 - 0.110.07 - 0.130.08 - 0.150.08 - 0.150.3 x DC0.2 x DC
Hardened steel40 - 500.03 -0.03 -0.04 -0.05 -0.06 -0.07 -0.08 -0.08 -0.3 x0.2 x
SKD6, SKT4, etc. 55NiCrMoV7, etc.HRC40 - 800.070.070.080.10.110.130.150.15DCDC
Hardened steel SKD11, SKH51, etc. HS6-5-2, etc.50 - 60 HRC20 - 600.03 - 0.070.03 - 0.070.04 - 0.080.05 - 0.10.06 - 0.110.07 - 0.130.08 - 0.150.08 - 0.150.3 x DC0.2 x DC

Profiling for semi-finishing and finishing

VBD-BG, VBE-BGA

CuttingFeedper tooth:fz (mm/t)DepthPick
ISO Workpiece materialHardnessspeed VcTool diameter: DC(mm)of cut apfeed Pf
(m/min)5681012162025(mm)(mm)
Carbon steel S45C, S55C, etc. C45, C55, etc.- 300 HB120 - 2500.04 - 0.090.04 - 0.090.06 - 0.110.07 - 0.120.08 - 0.130.09 - 0.160.1 - 0.180.1 - 0.180.1 x DC0.15 x DC
Alloy steel SCM440, SCr420, etc. 42CrMo4, 20Cr4, etc.- 300 HB100 - 2200.04 - 0.090.04 - 0.090.06 - 0.110.07 - 0.120.08 - 0.130.09 - 0.160.1 - 0.180.1 - 0.180.1 x DC0.15 x DC
Prehardened steel PX5, NAK80, etc.30 - 40 HRC100 - 2000.04 - 0.090.04 - 0.090.06 - 0.110.07 - 0.120.08 - 0.130.09 - 0.160.1 - 0.180.1 - 0.180.1 x DC0.15 x DC
Stainless steel SUS304, SUS316, etc. X5CrNi18-9, X5CrNiMo17-12-2, etc.- 200 HB80 - 1200.04 - 0.090.04 - 0.090.06 - 0.110.07 - 0.120.08 - 0.130.09 - 0.160.1 - 0.180.1 - 0.180.1 x DC0.15 x DC
Grey cast iron FC250 FC300 t150 - 250120 2800.04 -0.04 -0.06 -0.07 -0.08 -0.09 -0.1 -0.1 -0.1 x0.15 x
, , ec. 250, 300, etc., GG250, GG300, etc.HB-0.090.090.110.120.130.160.180.18DCDC
Ductile cast iron150 - 2500.04 -0.04 -0.06 -0.07 -0.08 -0.09 -0.1 -0.1 -0.1 x0.15 x
FCD450, etc. 450-10S, etc., GGG450, etc.HB120 - 2800.090.090.110.120.130.160.180.18DCDC
Aluminium alloys10.04 -0.04 -0.06 -0.07 -0.08 -0.09 -0.1 -0.1 -0.1 x0.15 x
Si < 13%-00 - 0000.090.090.110.120.130.160.180.18DCDC
Aluminium alloys10 4000.04 -0.04 -0.06 -0.07 -0.08 -0.09 -0.1 -0.1 -0.1 x0.15 x
Si ≥ 13%-5 -0.090.090.110.120.130.160.180.18DCDC
Titanium alloys0.04 -0.04 -0.06 -0.07 -0.08 -0.09 -0.1 -0.1 -0.08 x0.1 x
Ti-6Al-4V, etc.-50 - 1000.090.090.110.120.130.160.180.18DCDC
Heat-resistant alloys0.04 -0.04 -0.06 -0.07 -0.08 -0.09 -0.1 -0.1 -0.08 x0.1 x
Inconel 718, etc.-30 - 500.090.090.110.120.130.160.180.18DCDC
Hardened steel40 - 500.04 -0.04 -0.06 -0.07 -0.08 -0.09 -0.1 -0.1 -0.08 x0.1 x
SKD6, SKT4, etc. 55NiCrMoV7, etc.HRC50 - 1000.090.090.110.120.130.160.180.18DCDC
Hardened steel SKD11 SKH51 t50 - 6030 - 800.04 -0.04 -0.06 -0.07 -0.08 -0.09 -0.1 -0.1 -0.08 x0.1 x
, , ec. HS6-5-2, etc.HRC0.090.090.110.120.130.160.180.18DCDC
