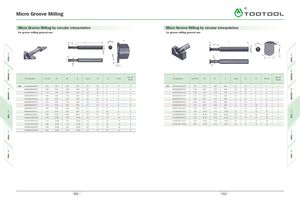

Micro Groove Milling V
Micro Groove Milling by circular interpolation Micro Groove Milling by circular interpolation
for groove milling general use for groove milling general use
| "O © | LI | ,0DS | x J b | P | |||||
| Noof | |||||||||
| Designation | b±0.02 | Ds | dl | d | tmax | LI | L2 | Dmin | Teeth |
| MG 0404D04B050T05 | 0.50 | 4.00 | 2.80 | 4.00 | 0.5 | 50 | 4 | 4 | 4 |
| 0404D04B100T05 | 1.00 | 4.00 | 2.80 | 4.00 | 0.5 | 50 | 4 | 4 | 4 |
| 0505D08B150T10 | 1.50 | 5.00 | 2.80 | 5.00 | 1.0 | 50 | 8 | 5 | 4 |
| 0606D04B100T10 | 1.00 | 6.00 | 3.70 | 6.00 | 1.0 | 50 | 4 | 6 | 4 |
| 0606D06B100T10 | 1.00 | 6.00 | 3.70 | 6.00 | 1.0 | 63 | 6 | 6 | 4 |
| 0606D06B150T10 | 1.50 | 6.00 | 3.70 | 6.00 | 1.0 | 63 | 6 | 6 | 4 |
| 0808D08B150T15 | 1.50 | 8.00 | 4.60 | 8.00 | 1.5 | 63 | 8 | 8 | 4 |
| 0808D08B200T15 | 2.00 | 8.00 | 4.60 | 8.00 | 1.5 | 63 | 8 | 8 | 4 |
| 0808D16B150T15 | 1.50 | 8.00 | 4.60 | 8.00 | 1.5 | 63 | 16 | 8 | 4 |
| 0808D16B200T15 | 2.00 | 8.00 | 4.60 | 8.00 | 1.5 | 63 | 16 | 8 | 4 |
| 1010D20B100T20 | 1.00 | 10.00 | 5.50 | 10.00 | 2.0 | 77 | 20 | 10 | 4 |
| 1010D20B150T20 | 1.50 | 10.00 | 5.50 | 10.00 | 2.0 | 77 | 20 | 10 | 4 |
| 1010D20B200T20 | 2.00 | 10.00 | 5.50 | 10.00 | 2.0 | 77 | 20 | 10 | 4 |
| 1010D20B250T20 | 2.50 | 10.00 | 5.50 | 10.00 | 2.0 | 77 | 20 | 10 | 4 |
| 1010D20B300T20 | 3.00 | 10.00 | 5.50 | 10.00 | 2.0 | 77 | 20 | 10 | 4 |
| s O X | LI | ||||||||
| Noof | |||||||||
| Designation | b±0.02 | Ds | dl | d | tmax | LI | L2 | Dmin | Teeth |
| MG 0404D04R050T05 | 1.00 | 4.00 | 2.80 | 4.00 | 0.5 | 50 | 4 | 4 | 4 |
| 0606D04R050T10 | 1.00 | 6.00 | 3.70 | 6.00 | 1.0 | 50 | 4 | 6 | 4 |
| 0606D06R050T10 | 1.00 | 6.00 | 3.70 | 6.00 | 1.0 | 63 | 6 | 6 | 4 |
| 0606D06R075T10 | 1.50 | 6.00 | 3.70 | 6.00 | 1.0 | 63 | 6 | 6 | 4 |
| 0808D08R075T15 | 1.50 | 8.00 | 4.60 | 8.00 | 1.5 | 63 | 8 | 8 | 4 |
| 0808D08R100T15 | 2.00 | 8.00 | 4.60 | 8.00 | 1.5 | 63 | 8 | 8 | 4 |
| 0808D16R075T15 | 1.50 | 8.00 | 4.60 | 8.00 | 1.5 | 63 | 16 | 8 | 4 |
| 0808D16R100T15 | 2.00 | 8.00 | 4.60 | 8.00 | 1.5 | 63 | 16 | 8 | 4 |
| 1010D20R050T20 | 1.00 | 10.00 | 5.50 | 10.00 | 2.0 | 77 | 20 | 10 | 4 |
| 1010D20R075T20 | 1.50 | 10.00 | 5.50 | 10.00 | 2.0 | 77 | 20 | 10 | 4 |
| 1010D20R100T20 | 2.00 | 10.00 | 5.50 | 10.00 | 2.0 | 77 | 20 | 10 | 4 |
| 1010D20R125T20 | 2.50 | 10.00 | 5.50 | 10.00 | 2.0 | 77 | 20 | 10 | 4 |
| 1010D20R150T20 | 3.00 | 10.00 | 5.50 | 10.00 | 2.0 | 77 | 20 | 10 | 4 |
