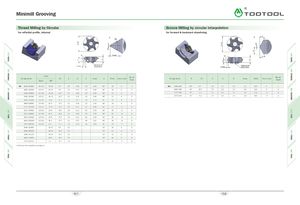

Minimill Grooving A\
4'

Thread Milling by Circular Groove Milling by circular interpolation
for mPartial profile, internal for forward & backward chamfering
X

©
©
_Q
i LU


t max.
</>
LU oo
LU

Fraserschaft Fraserschaft
t max. shank face t max. shank face


Pitch
No of No of
Designation Ds S b E tmax a Dmin Connector Designation K Ds S b E tmax Dmin Connector
Teeth Teeth
Pitch TPI
Ml 1006 - 050860 0.5 - 0.8 56 - 28 9.7 3.5 0.06 2.9 1.00 60° 10 6 3 MC 1006- A 90 45° 9.7 3.5 1.5 1.5 1.5 10.0 6 3
1006-102560 1.0- 2.5 24-12 9.7 3.5 0.12 2.2 1.60 60° 10 6 3 1609- A 90 45° 15.7 5.5 2.0 2.3 2.0 16.0 9 6
1206 - 050860 0.5 - 0.8 56-28 11.7 3.5 0.06 2.9 1.00 60° 12 6 3 2212 - A 90 45° 21.7 5.2 3.0 3.2 2.0 22.0 12 6
1206-102560 1.0- 2.5 24-12 11.7 3.5 0.12 2.2 1.60 60° 12 6 3 2614- A 90 45° 25.7 5.2 3.0 3.2 2.0 26.0 14 6
1609-103060 1.0-3.0 24- 8 15.7 5.5 0.12 4.0 1.70 60° 16 9 6
1809- 254060 2.5 -4.0 10 -6 17.7 5.2 0.30 3.5 2.70 60° 18 9 6
2212-102560 1.0- 2.5 24-12 21.7 5.9 0.12 4.5 1.60 60° 22 12 6
2012 -103060 1.0- 3.0 24- 8 19.7 2.9 0.12 4.4 1.70 60° 20 12 6
2212 - 254060 2.5 -4.0 10- 6 21.7 5.2 0.30 3.9 2.70 60° 22 12 6
2814 -102060 1.0- 3.0 24- 8 27.7 5.9 0.12 4.6 1.20 60° 28 14 6
2814-255060* 2.5 - 5.0 10- 5 27.7 5.2 0.37 4.0 2.93 60° 28 14 6
2814- 406060 4.0- 6.0 6-4 27.7 5.9 0.50 3.6 4.60 60° 28 14 6
1006 -191455 19 -14 9.7 3.5 55° 10 6 3
1206- 281955 28 -19 11.7 3.5 55° 12 6 3
1206-141155 14-11 11.7 3.5 55° 12 6 3
1809-140855 14- 8 15.7 5.5 55 ° 18 9 6
2514- 070555 7- 5 21.7 5.9 55 ° 25 14 6
Additional sizes available by request.
